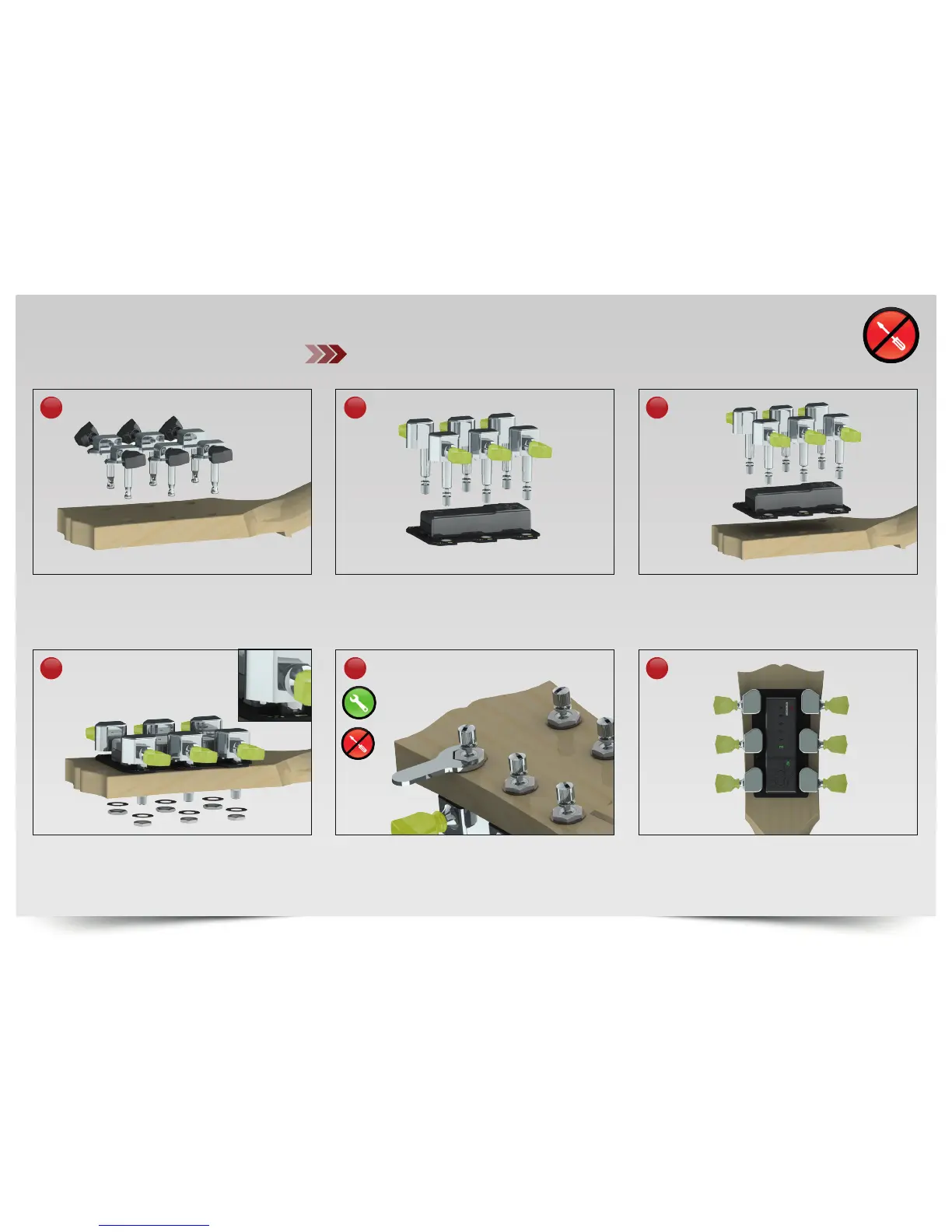

INSTALL THE SYSTEM TO THE GUITAR
GETTING STARTED
AT FIRST REMOVE ALL ORIGINAL
HEADSTOCKPARTS OF YOUR GUITAR.
TAKE THE ROBOHEADS OUT OFF THE
CONTACTING PCB.
PLACE THE CONTACTING PCB ON THE NECK
OF THE GUITAR, THE BATTERY COMPARTMENT
HAS TO FACE TOWARDS THE TOP OF
THE HEADSTOCK.
MAKE SURE THAT ALL PCB DRILL HOLES ARE
IN ALIGNMENT WITH THE NECKS TUNER HOLES.
PUT THE ROBOHEADS THROUGH THE
RESPECTIVE HOLES. MOUNT THE HEXNUTS.
USE THE WRENCH WHICH COMES
WITH THE SET TO SCREW TIGHT THE HEX
NUTS OF THE ROBOHEADS.
NOW TRONICAL TUNE IS READY TO
STRING UP YOUR GUITAR.
1
4
2
5
3
6
