Machine overview
4 Machine overview

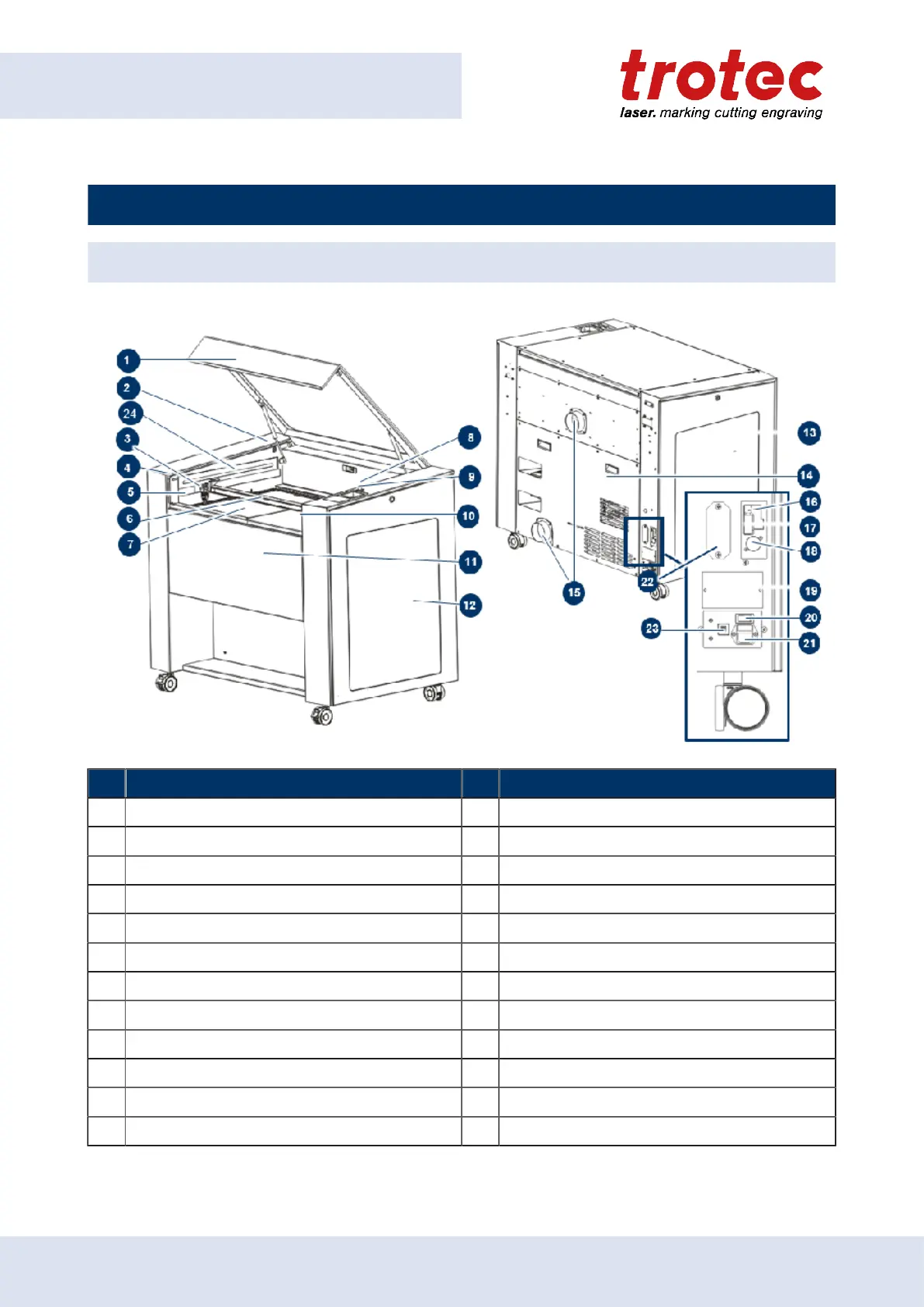

4.1 General overview
No Description No Description
1 Acrylic top lid 13 Side panel left
2 Service plug connector 14 Cover for laser source and power supplies
3 Laser head 15 Connector for exhaust tube
4 Interlock safety switch 16 USB port for PC
5 Connector for rotary attachment 17 RS-232 port for PC
6 X-axis 18 Connectors for exhaust cable
7 Table 19 Type plate
8 Key switch 20 Main switch
9 Keypad 21 Mains connection
10 Interlock safety switch 22 Connector for JobControl®Vision
11 Front door 23 Fuse(s)
12 Side panel right 24 LED interior illumination
40
