CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS (continued):

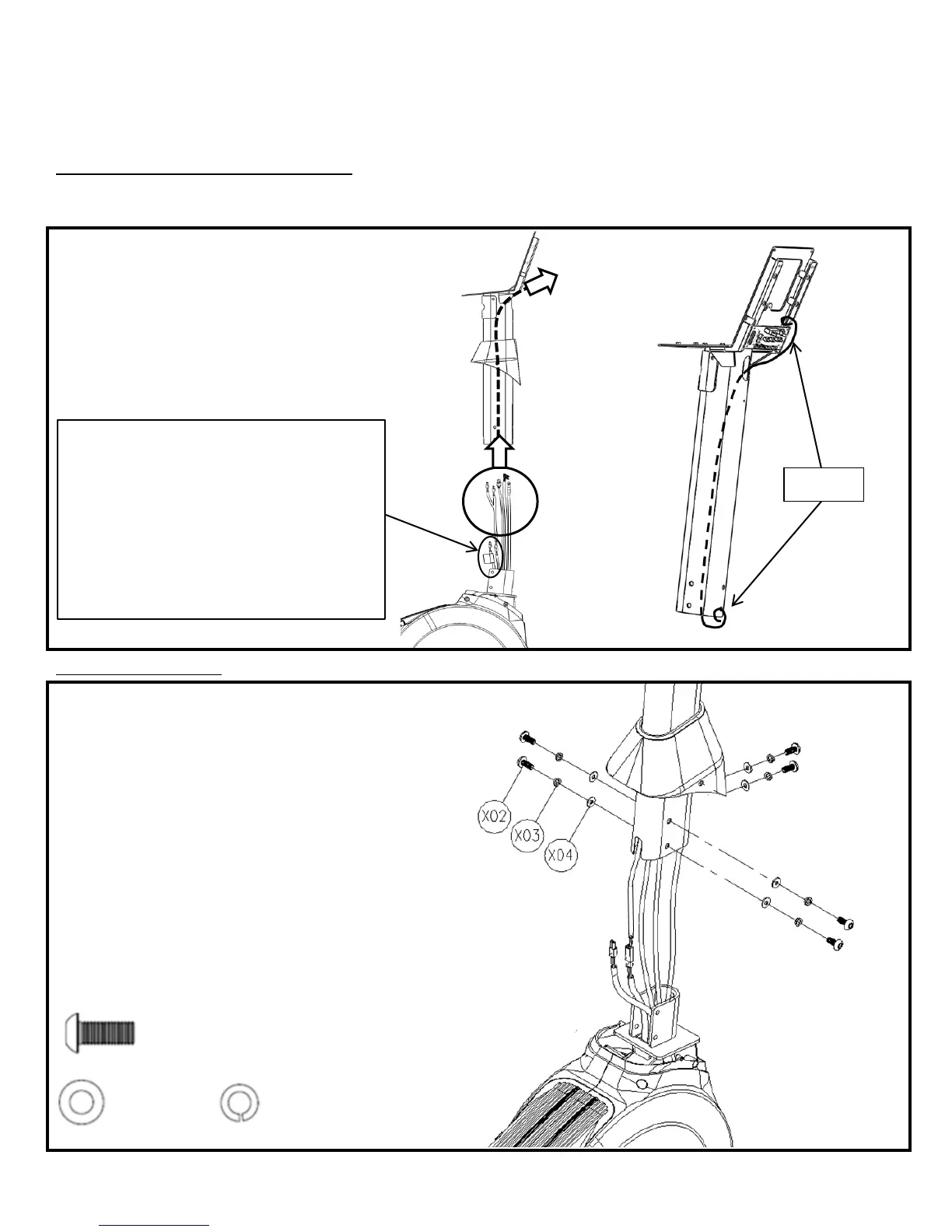

Step 4: Front Mast Cable Routing:
*Complete the power supply installation on page 23 prior to completing this step if this unit will be paired with a
touchscreen or 15” TFT console.
a) Pull the cable bundle coming from the base
of the unit through the front mast using the
pull tie provided with the mast.
Step 5: Front Mast:
a) For each screw, install through split washer
then flat washer
b) Insert the Front Mast onto exposed bike
f
rame U-bracket; pay special attention not to
pinch any wires between the Front Mast and
the frame
c) Verify that the Front Mast is in the correc
t
o
rientation
d) Secure the Front Mast to the bike frame by
tightening all 6 screws with the provided hex
wrench
e)Verify that the Front Mast is secured tightly
to the bike frame; tighten screws if necessary
Hardware Required:
6 M8 x 20 Screws
6 M8 Washers
6 M8 Spring Washers
NOTE: This connector is only used for the
touchscreen or 15” TFT console installation.
If installing a touchscreen or 15” TFT
console, please refer to “Power Supply
Installation, Step A” before proceeding with
“Front Mast Cable Routing, Step # 4”.
Pull Tie
Truefitness.com / 800.426.6570 / 636.272.7100 13
