CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS (continued):
IMPORTANT:
The following steps are only required if this unit will be paired with a touchscreen console or 15” TFT Console.

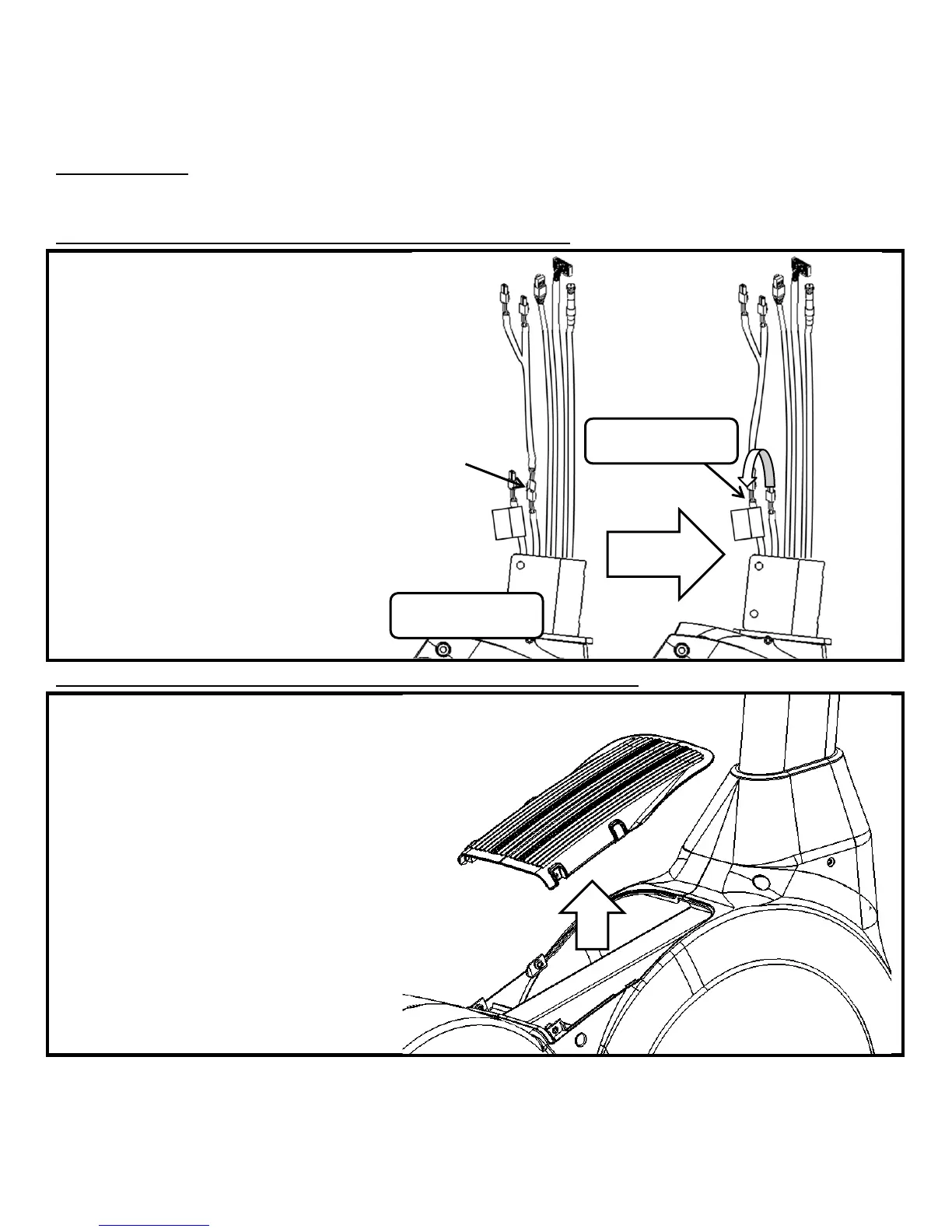

Auxiliary Power Supply Installation Step A (cable routing):
IMPORTANT:
Prior to Routing the Front Mast
Cables, it is very important that the
following cable connection is
confirmed.
If this connection is not made, the
Console will not be able to turn on.
Auxiliary Power Supply Installation Step B (remove access plastic):
Remove the Access Plastic screws (quantity
3) with a Phillips head screwdriver (not
provided)
b) Remove the Access Plastic
