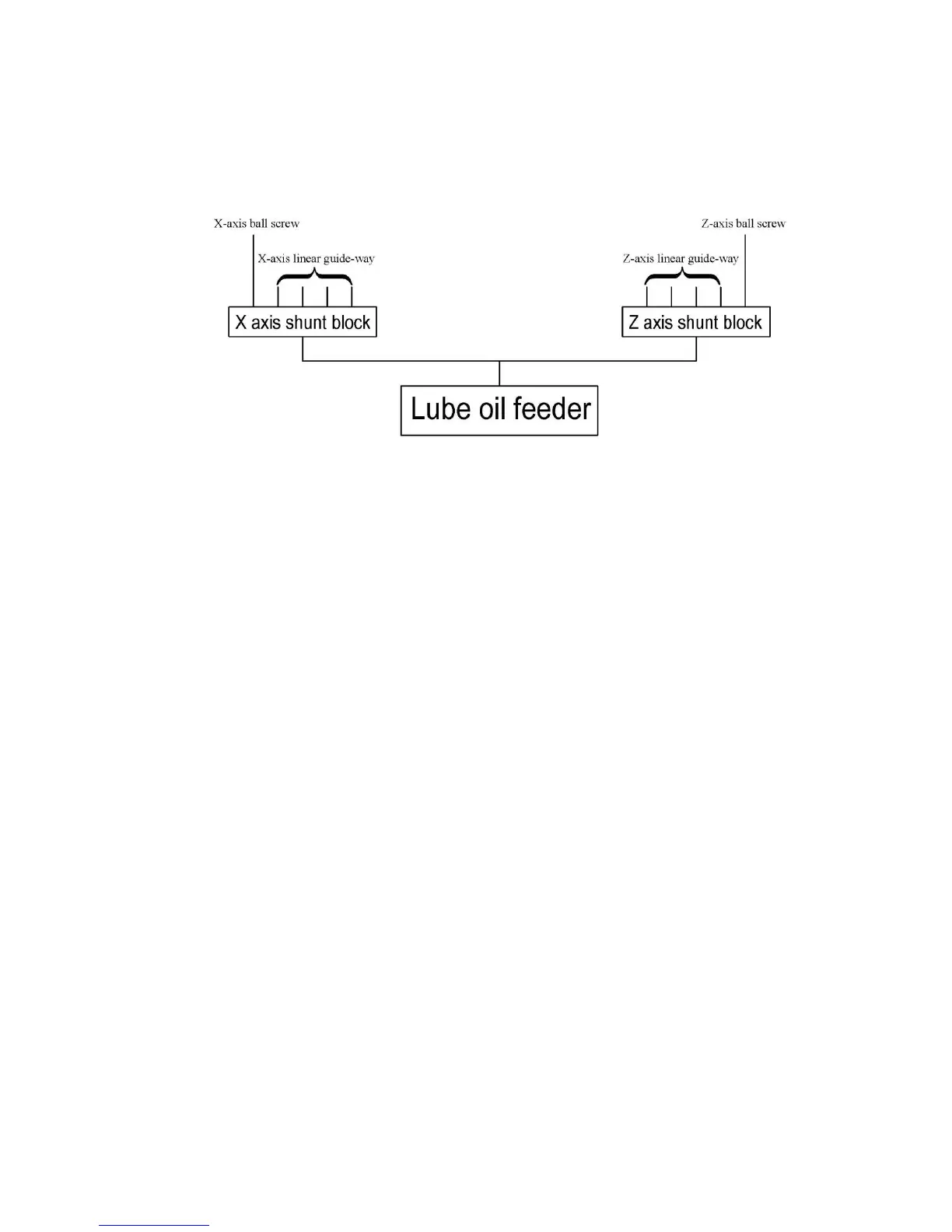

1. Lube oil unit loop
2. Oil-feeding method and feeding adjustment
This Machine applies forced oil-feeding. Oil supply may be operated automatically or
manually.
(1) Manual oil feeding: after pressing the start button, pump motor runs to feed oil out;
release the button to stop pump.
(2) Auto oil feeding: when Machine power is on, oil feeder is under oil-feeding status;
it follows the set running/stop time to feed oil automatically.
(3) Oil-output point: each oil-output point applies the volume-distribution valve; each
output point follows the designed oil-output flow-rate using different distribution
valve.
3. Note
(1) This Machine is a fully automatic model. It is equipped with floating switch and
auto-alarm buzzer; once oil amount is in short, alarm indicator is lit automatically,
reminding operator to feed-in oil. Alarm line is connected to CNC controller; if oil
amount or pressure is insufficient, Machine cannot be started in CNC AUTO mode;
alarm displays.
(2) At least clean filter once per year.
(3) Check Daily if oil amount is sufficient.
