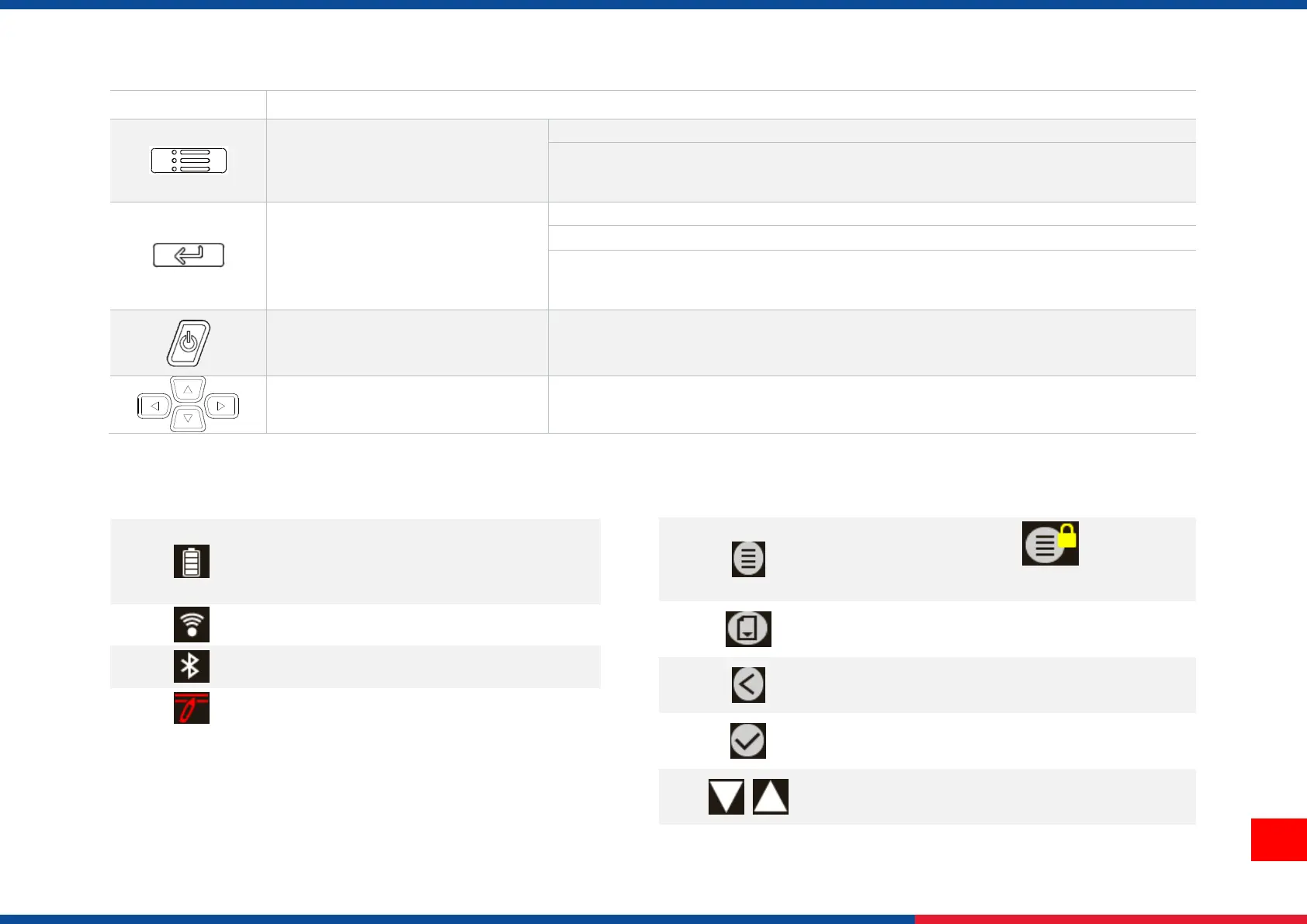

2.3.1 Keys / LCD control panel icon indication
Keys
Function
◼ Menu key(Ready status)
◼ Left soft key (Menu status)
Enter the LCD menu list.
The label on the left footer of the UI will explain the function for left soft key.
Check the label on the footer of the UI screen. The meaning of the select keys
will vary.
◼ Feed key (Ready status)
◼ Pause key (Printing status)
◼ Right soft key (Menu status)
Feed one label.
Pause the print job.
The label on the right footer of the UI will explain the function for right soft key.
Check the label on the footer of the UI screen. The meaning of the select keys
will vary.
◼ Power-on key
Press and hold for 2-3 seconds to turn on the printer.
Press and hold for 2-3 seconds to turn off the printer.
◼ Navigational keys
Used to select items, menu selection, and navigation in the UI.
Icon
Indication
1/4 charging level: 0~25%
2/4 charging level: 25~50%
3/4 charging level: 50~75%
4/4 charging level: 75~100%
Wi-Fi device is ready
Bluetooth device is ready
Print head cleaning notice
icon
Function
Enter the menu list ( the Menu is
locked and a password is required.)
Feed button (advance one label)
Back button
Enter cursor (be marked in green)
located option
Scroll down / up button
