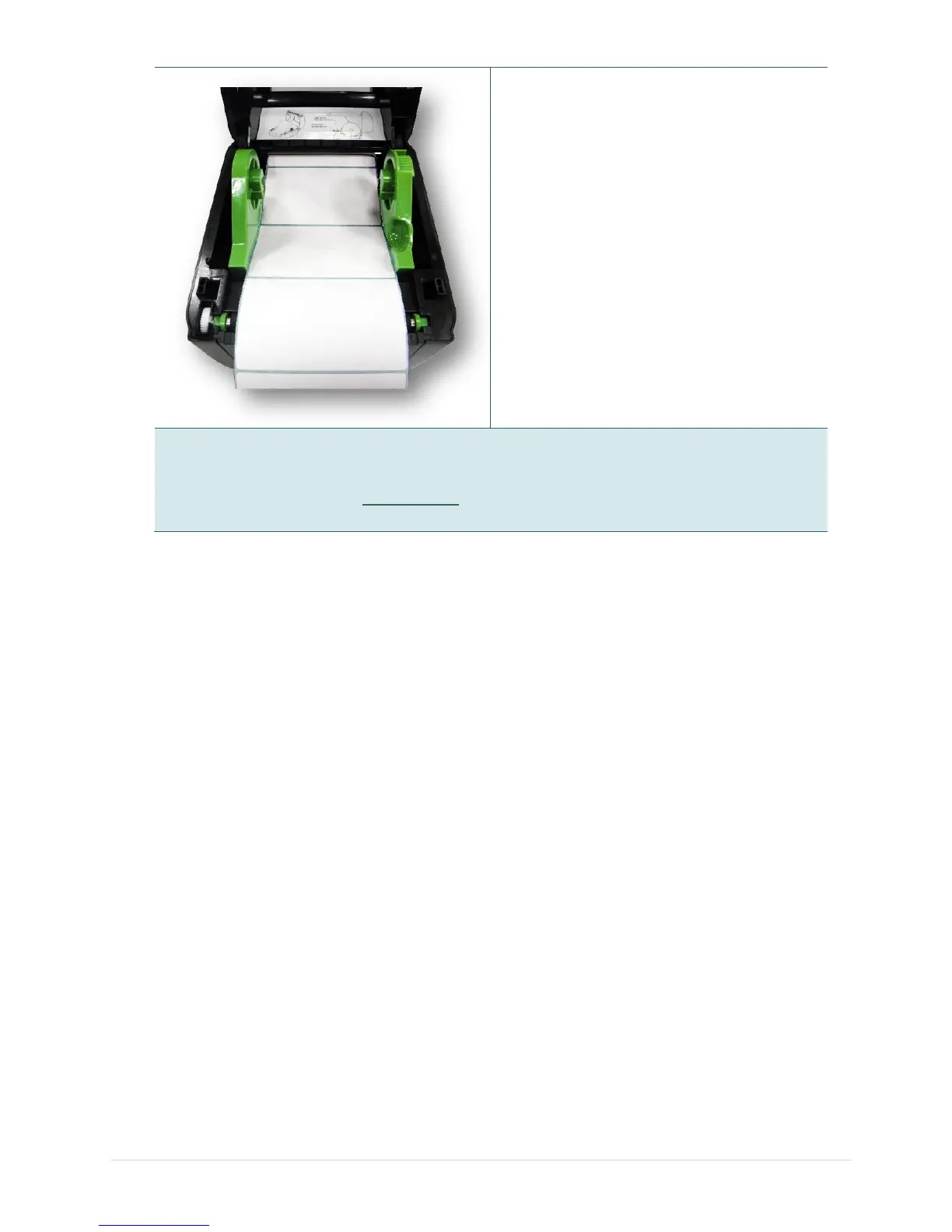

4. Feed the media through the rear external
label entrance chute. (printing side face up)
Place the label leading edge onto the platen
roller.
5. Close the top cover gently and make sure the
cover latches securely.
6. Use “Diagnostic Tool” to set the media
sensor type and calibrate the selected
sensor. (Start the “Diagnostic tool”  Select
the “Printer Configuration” tab  Click the
“Calibrate Sensor” button)
Note:
* Please calibrate the gap/black mark sensor when changing media.
* Please refer to video on TSC YouTube or driver CD.

TSC DA200 Series Specifications

General

Resolution	203 dpi
Max Print Width	108 mm (4.25")
Max Print Length	2, 794 mm (110")
Processor	32-bit RISC CPU
Media Roll Diameter	127 mm (5") OD
Ribbon Core Diameter	25.4 mm (1")
Print Method	Thermal Transfer/Direct Thermal
Max Print Speed	6 ips (inches per second)
Memory	8 MB Flash, 8 MB SDRAM
Interface	USB 2.0
Media Sensor	Reflective, Transmissive
Media Handling	die-cut, fan-fold, continuous
Media Type	Gap, Black mark, Notch, Continuous
Media Width	20 mm ~ 112 mm (0.79" ~ 4.41")
Media Thickness	0.06 mm ~ 0.19 mm
Ribbon Width	30 to 104 mm
Ribbon Length	300 m (984 feet)
Power Supply	External universal switching power supply
