5. Diagnostic Tool
TSC’s Diagnostic Utility is an integrated tool incorporating features that enable you to explore a printer’s
settings/status; change a printer’s settings; download graphics, fonts and firmware; create a printer bitmap
font; and send additional commands to a printer. With the aid of this powerful tool, you can review printer
status and setting in an instant, which makes it much easier to troubleshoot problems and other issues.
5.1 Start the Diagnostic Tool

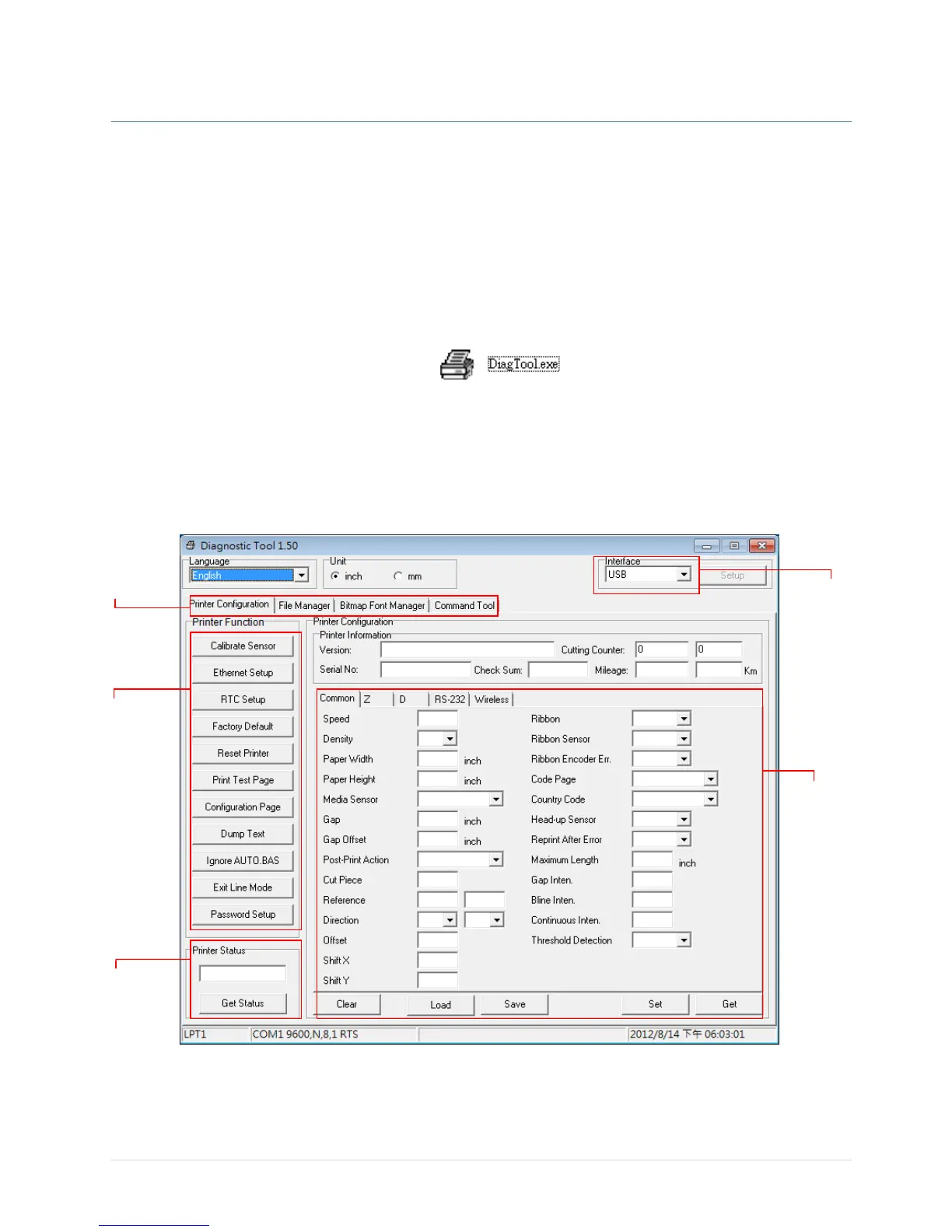

1. Double click on the Diagnostic tool icon to start the software.
2. There are four features (Printer Configuration, File Manager, Bitmap Font Manager, Command Tool)
included in the Diagnostic utility.
Features tab
Printer
functions
Interface
Printer Status
Printer setup

TSC DA200 Series Specifications

General

Resolution	203 dpi
Max Print Width	108 mm (4.25")
Max Print Length	2, 794 mm (110")
Processor	32-bit RISC CPU
Media Roll Diameter	127 mm (5") OD
Ribbon Core Diameter	25.4 mm (1")
Print Method	Thermal Transfer/Direct Thermal
Max Print Speed	6 ips (inches per second)
Memory	8 MB Flash, 8 MB SDRAM
Interface	USB 2.0
Media Sensor	Reflective, Transmissive
Media Handling	die-cut, fan-fold, continuous
Media Type	Gap, Black mark, Notch, Continuous
Media Width	20 mm ~ 112 mm (0.79" ~ 4.41")
Media Thickness	0.06 mm ~ 0.19 mm
Ribbon Width	30 to 104 mm
Ribbon Length	300 m (984 feet)
Power Supply	External universal switching power supply
