5.3 Setting Ethernet by Diagnostic Tool (Option)
The Diagnostic Utility is enclosed in the CD disk \Utilities directory or can be downloaded from
www.tscprinters.com website. Users can use Diagnostic Tool to setup the Ethernet by USB and Ethernet
interfaces. The following contents will instruct users how to configure the Ethernet by these interfaces.
5.3.1 Using USB interface to setup Ethernet interface
1. Connect the USB cable between the computer and the printer.
2. Turn on the printer power.
3. Start the Diagnostic Utility by double clicking on the icon.

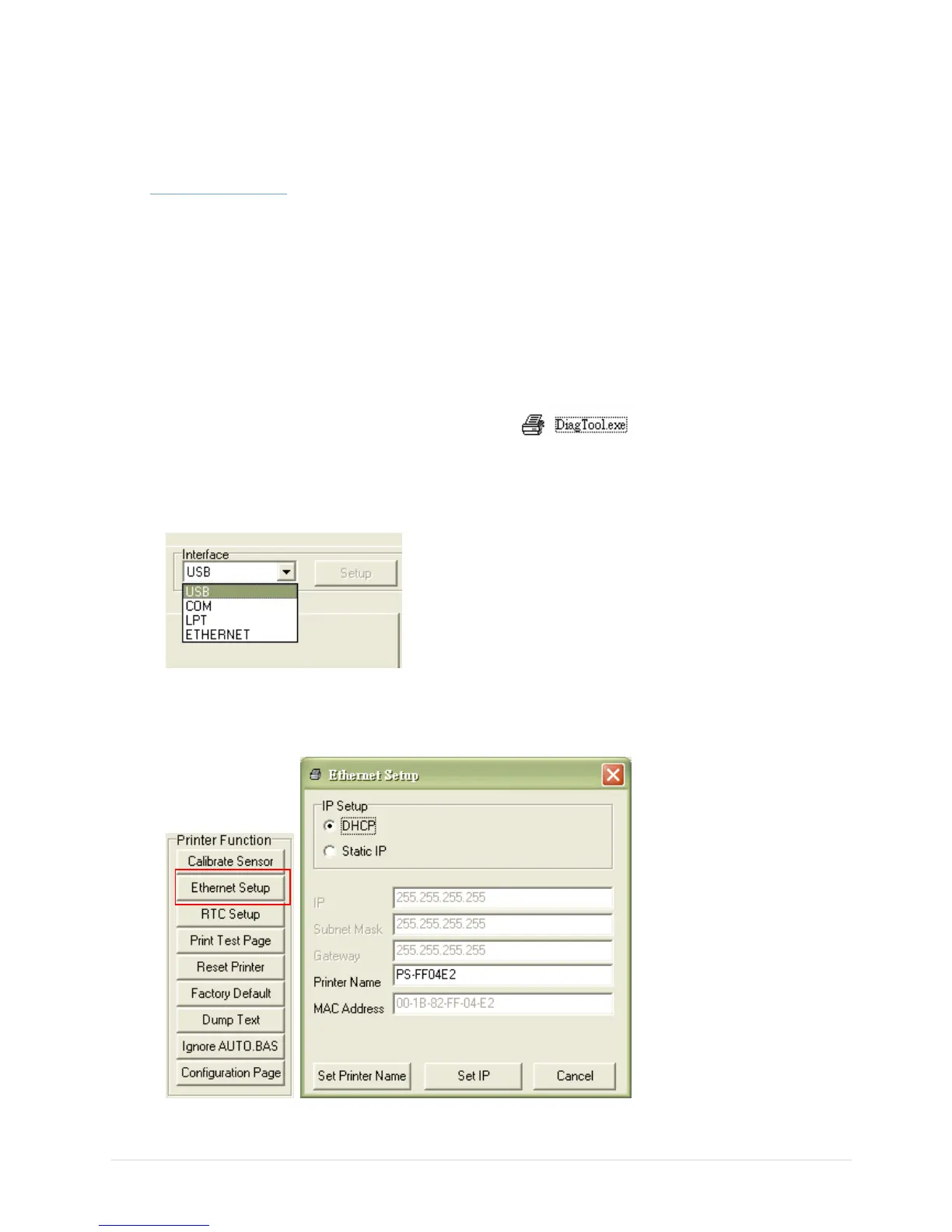

4. The Diagnostic Utility default interface setting is USB interface. If USB interface is connected with printer,
no other settings need to be changed in the interface field.
5. Click on the “Ethernet Setup” button from “Printer Function” group in Printer Configuration tab to setup the
IP address, subnet mask and gateway for the on board Ethernet.

TSC DA200 Series Specifications

General

Resolution	203 dpi
Max Print Width	108 mm (4.25")
Max Print Length	2, 794 mm (110")
Processor	32-bit RISC CPU
Media Roll Diameter	127 mm (5") OD
Ribbon Core Diameter	25.4 mm (1")
Print Method	Thermal Transfer/Direct Thermal
Max Print Speed	6 ips (inches per second)
Memory	8 MB Flash, 8 MB SDRAM
Interface	USB 2.0
Media Sensor	Reflective, Transmissive
Media Handling	die-cut, fan-fold, continuous
Media Type	Gap, Black mark, Notch, Continuous
Media Width	20 mm ~ 112 mm (0.79" ~ 4.41")
Media Thickness	0.06 mm ~ 0.19 mm
Ribbon Width	30 to 104 mm
Ribbon Length	300 m (984 feet)
Power Supply	External universal switching power supply
