6. Select the printer in the left side of listed printers, the correspondent IP address will be shown in the right
side “IP address/Printer Name” field.

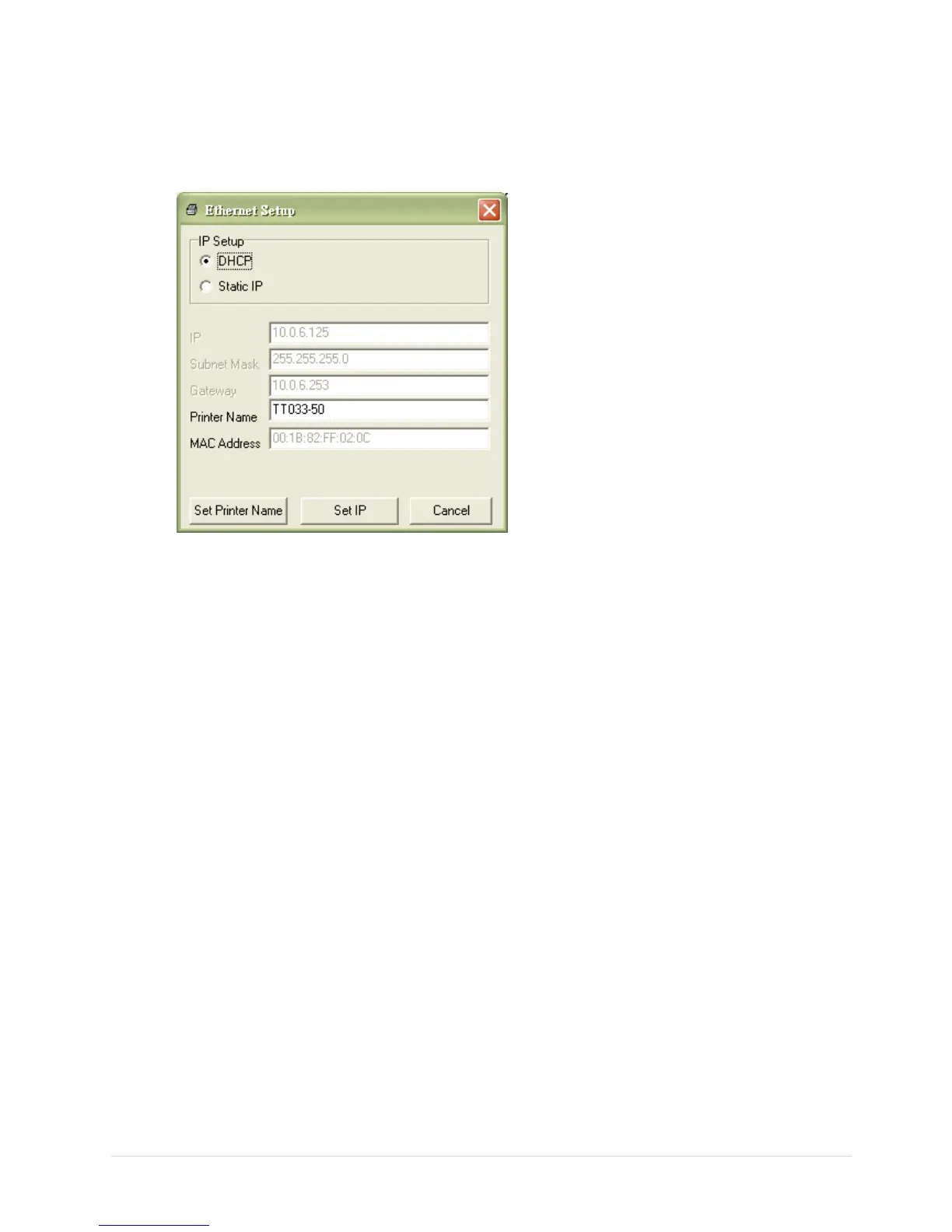

7. Click “Change IP Address” to configure the IP address obtained by DHCP or static.
The default IP address is obtained by DHCP. To change the setting to static IP address, click “Static IP”
radio button then enter the IP address, subnet mask and gateway. Click “Set IP” to take effect the
settings.
Users can also change the “Printer Name” by another model name in this fields then click “Set Printer
Name” to take effect this change.
Note: After clicking the “Set Printer Name” or “Set IP” button, printer will reset to take effect the
settings.
8. Click “Exit” button to exit the Ethernet interface setup and go back to Diagnostic Tool main screen.
Factory Default button
This function will reset the IP, subnet mask, gateway parameters obtained by DHCP and reset the printer
name.

TSC DA200 Series Specifications

General

Resolution	203 dpi
Max Print Width	108 mm (4.25")
Max Print Length	2, 794 mm (110")
Processor	32-bit RISC CPU
Media Roll Diameter	127 mm (5") OD
Ribbon Core Diameter	25.4 mm (1")
Print Method	Thermal Transfer/Direct Thermal
Max Print Speed	6 ips (inches per second)
Memory	8 MB Flash, 8 MB SDRAM
Interface	USB 2.0
Media Sensor	Reflective, Transmissive
Media Handling	die-cut, fan-fold, continuous
Media Type	Gap, Black mark, Notch, Continuous
Media Width	20 mm ~ 112 mm (0.79" ~ 4.41")
Media Thickness	0.06 mm ~ 0.19 mm
Ribbon Width	30 to 104 mm
Ribbon Length	300 m (984 feet)
Power Supply	External universal switching power supply
