TSC TA210 User Manual

TA210/ TA310/ TA200/ TA300
Bar Code Printer Service Manual
6
16
HEADER
17
KPZ-108-8TAE1-TSCA
18
KD2004-CF10E_A (reserved)
19
KD2004-CF10E_B (reserved)
20
COM5_2
21
LCD panel connector
22
DC motor connector
23
ESD_GND_PIN
24
Stepping motor connector
25

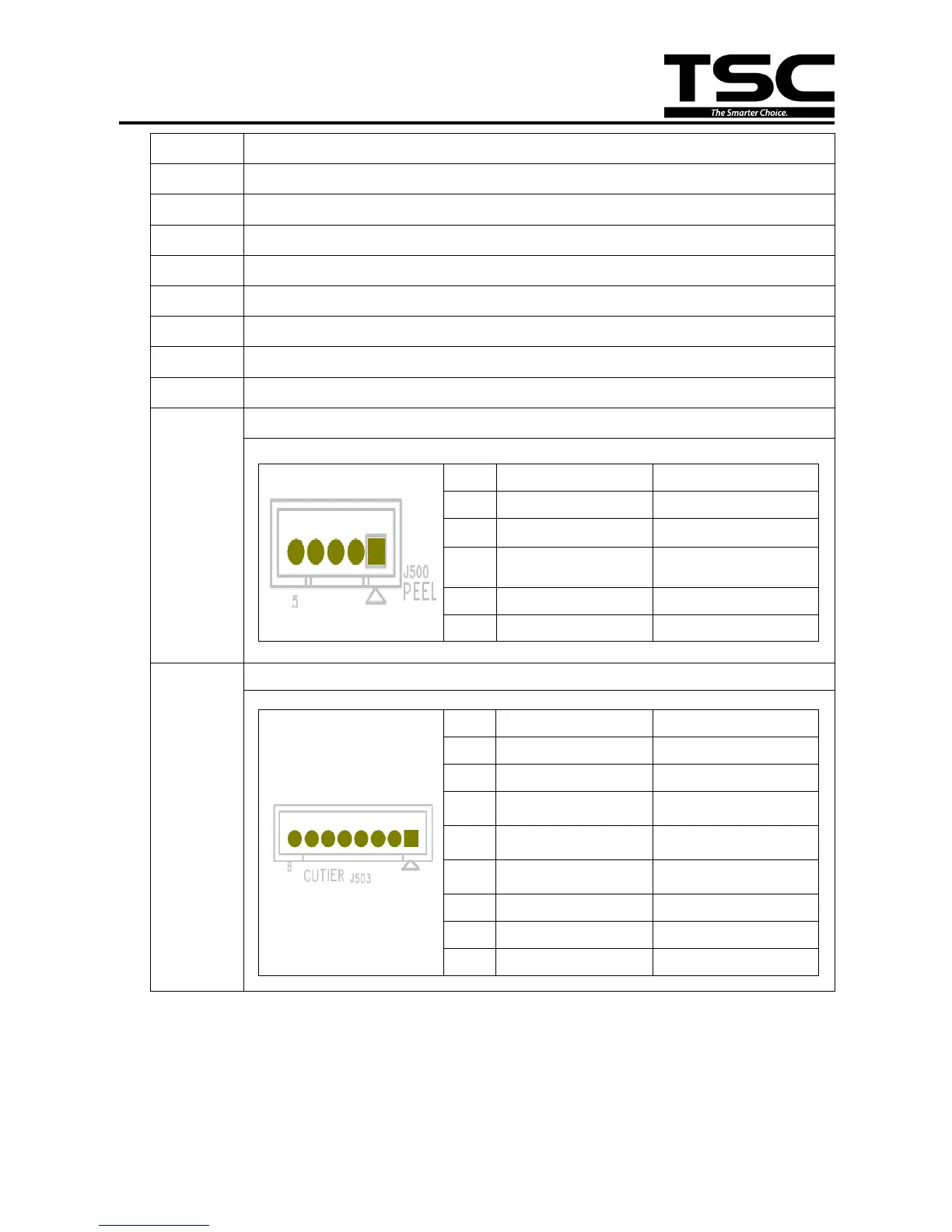

Peel-off sensor connector
Pin
Description
Voltage
1
POWER
3.3V
2
Reserved
3
Peel sensor emitter
Emitter on: 2.2~2.3V
Emitter off: 2.6~2.7V
4
Peel sensor receiver
AD : 0~3.3V
5
GND
0V
26
Cutter connector
Pin
Description
Voltage
1
Cutter power
24V
2
GND
0V
3
Cutter direction
0V: Cutter positive cut
5V: Cutter negative cut
4
Cutter enable
0V: Cutter work
5V: Cutter stop
5
Cutter position
sensor switch
0V: Cutter stop
3.3V: Cutter work
6
GND
0V
7
Logic power
5V
8
Reserved

TSC TA210 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 DPI (8 dots/mm)
Processor	32-bit RISC CPU
Max Print Speed	5 inches per second
Memory	8 MB Flash
Connectivity	USB 2.0
Media Handling	Fanfold
Power Supply	100-240V AC, 50/60Hz
