TSC TDP-225

TDP-225 Series
Bar Code Printer Service Manual
13

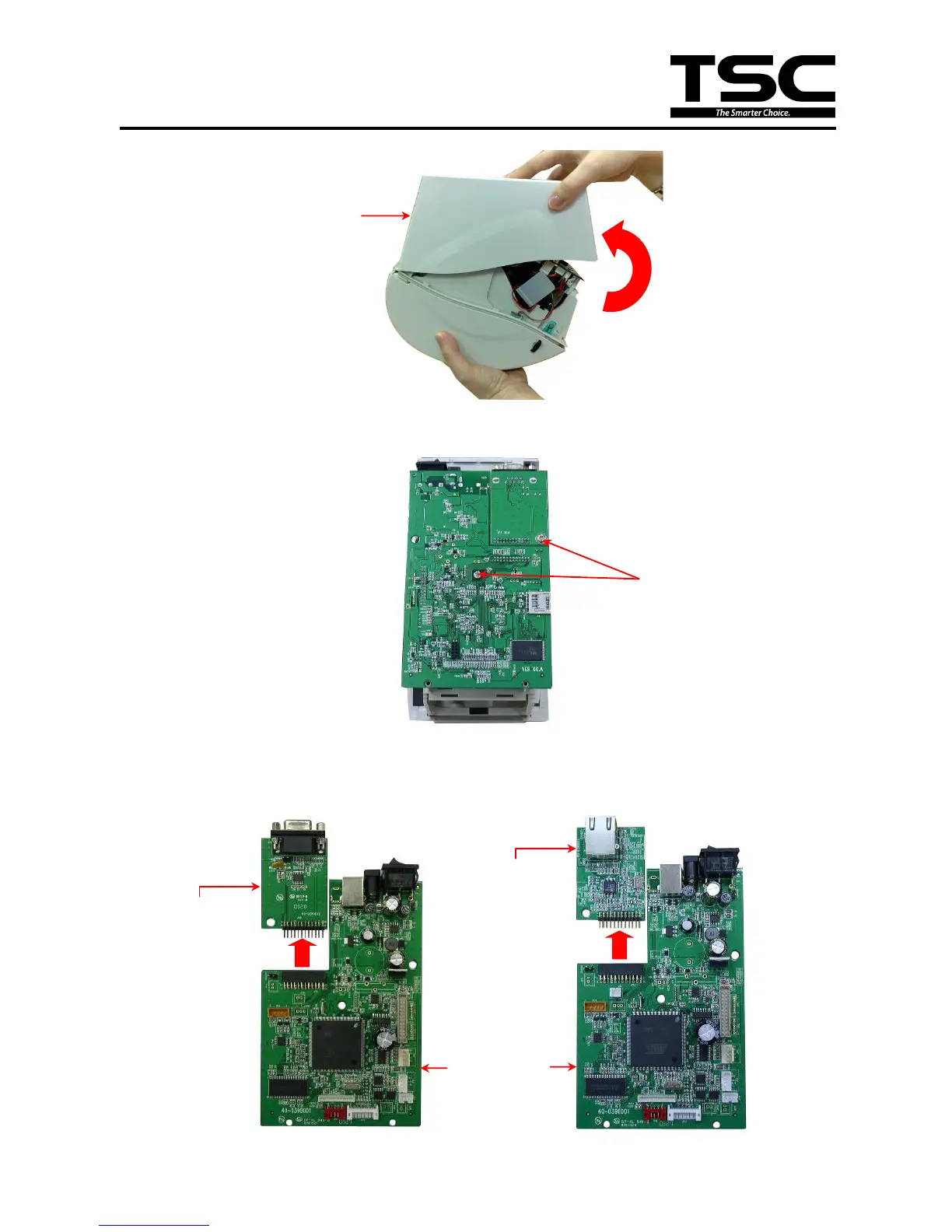

4. Remove 2 screws from the main board and RS-232/Ethernet interface board.
5. Disconnect all connectors from the main board.
6. Remove/Replace the main board and RS-232/Ethernet interface board.
Main board
RS-232
Interface
board
Lower cover
Screws
Ethernet
Interface
board
(Option)
