TSC TTP-2410MT Series Service Manual

30
30

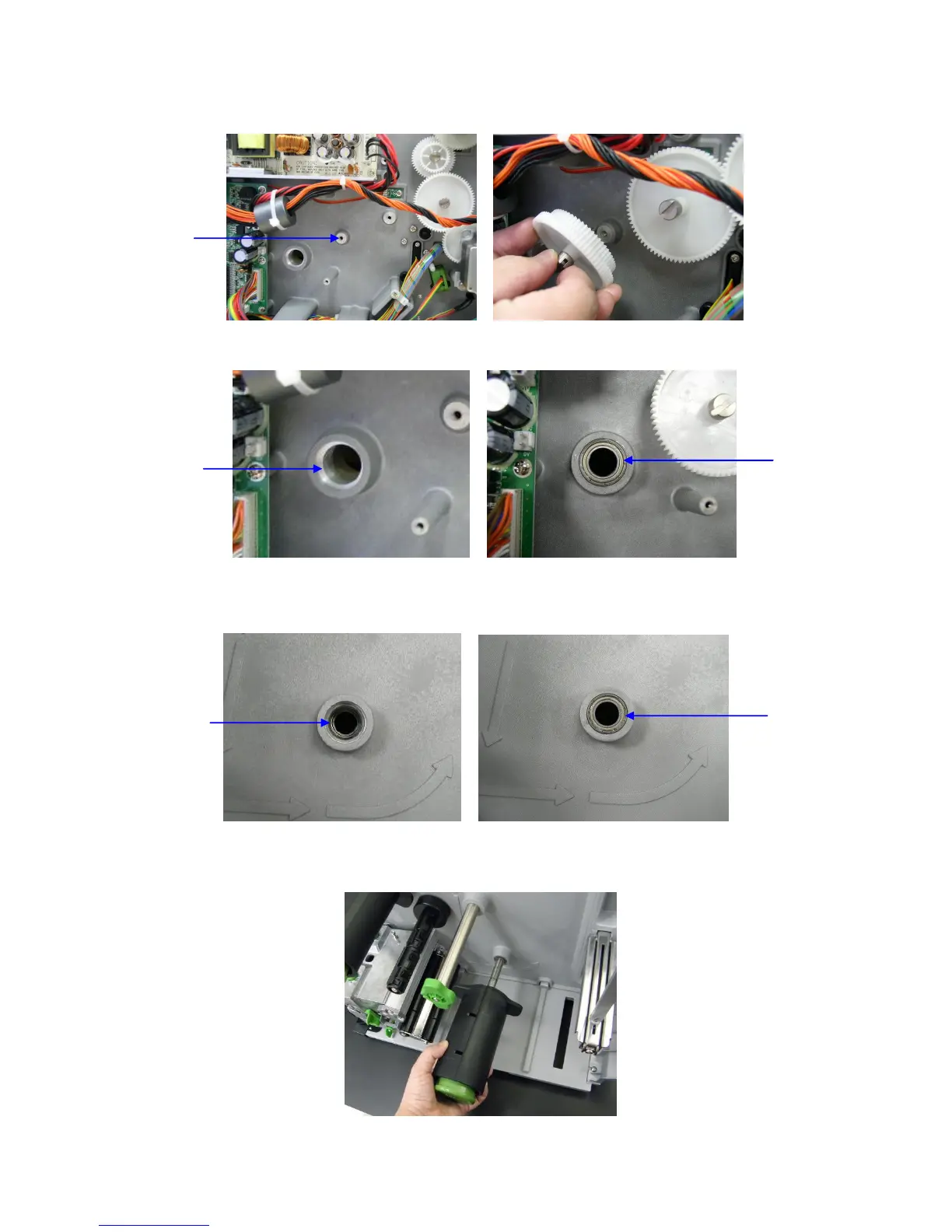

3. Fasten the screw#2 to fix the gear#2.
4. Put the bearing into the internal rewind hole.
5. Open the printer right side cover.
6. Remove the dustproof cover from the internal rewind hole and put the bearing into it.
7. Insert the internal rewind into the hole.
Gear#2
position
Internal rewind
hole (Left side)
Bearing
Internal rewind
hole (Right side)
Bearing
