31
31

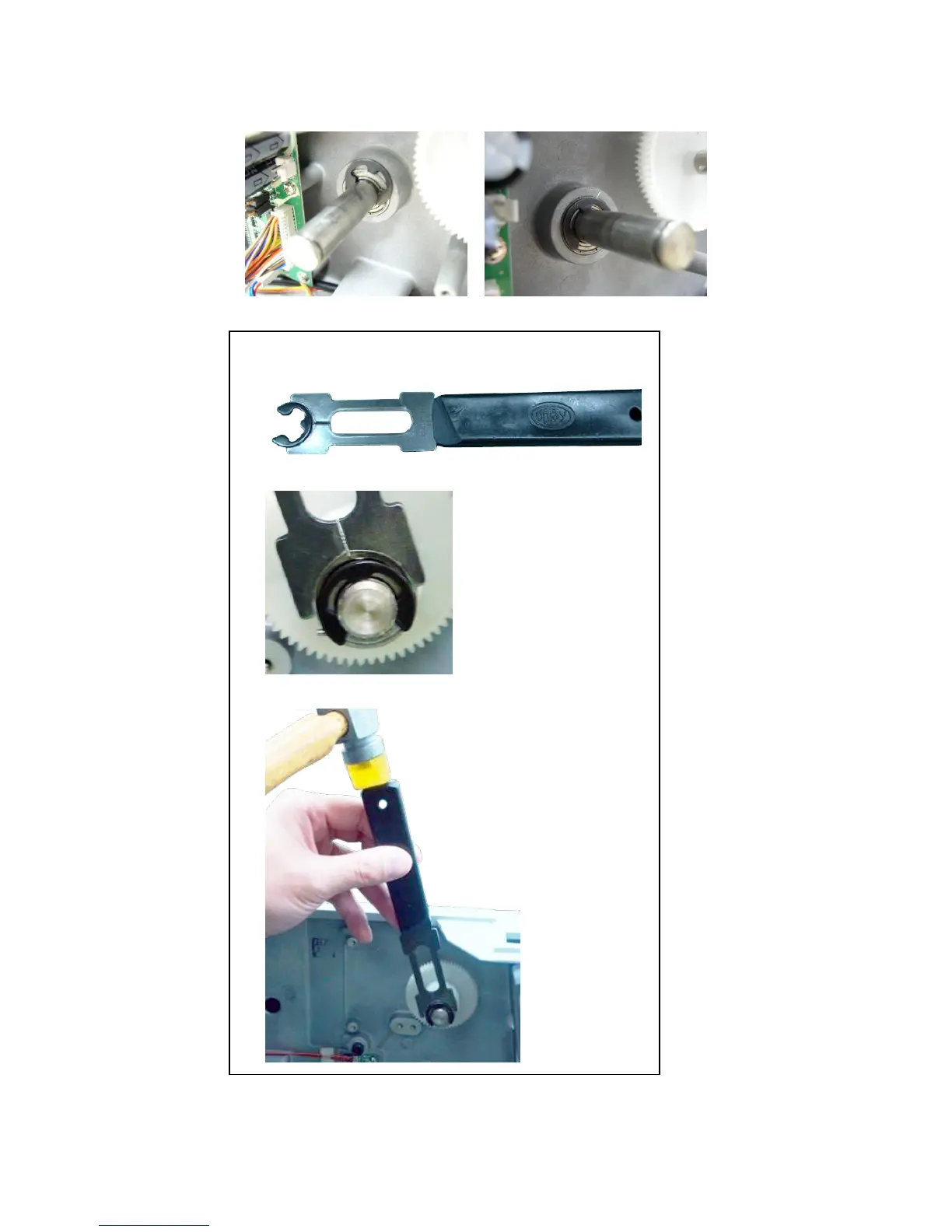

8. Use the E-ring driver and hammer to fix the internal rewind by E-ring.
*How to assemble e-ring?
a. Put E-ring into E-ring driver.
b. Put the E-ring on roller niche.
c. Use hammer to fix e-ring and roller.
