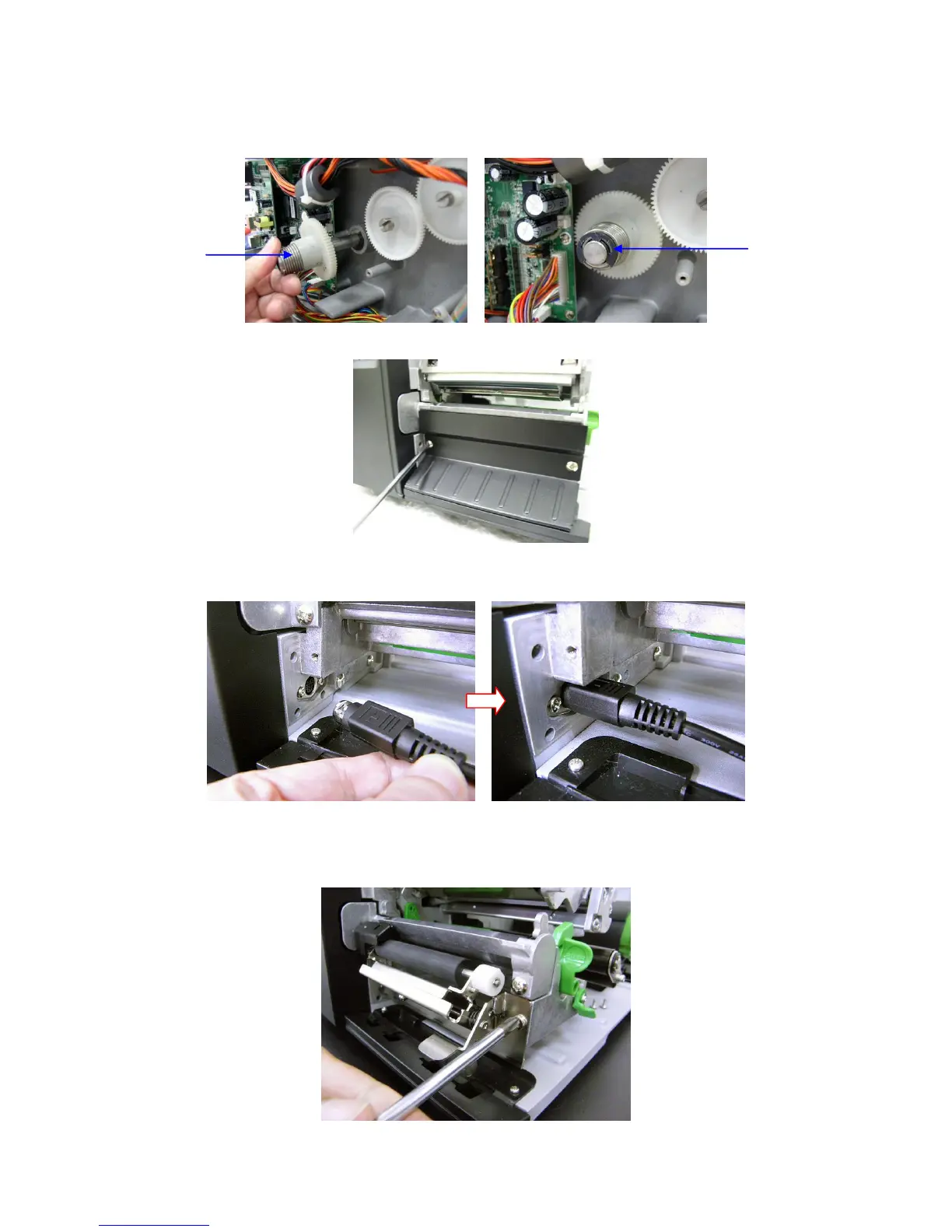

9. Insert the gear (with spring) into the spindle and fix it with E-ring. Install back the
electronics cover.
10. Remove 2 screws to remove lower front panel.
11. Plug the peel-off mini DIN cable connector into the cutter/peel-off connector. The triangle
mark on the connector must be at the upper side.
12. Attach the peel-off module to the front of the platen roller. Align the peel-off module screw
holes to the screw holes that fix the lower front panel. Fasten the 2 screws at the peel-off
module to fix the peel-off module to the printer mechanism.
