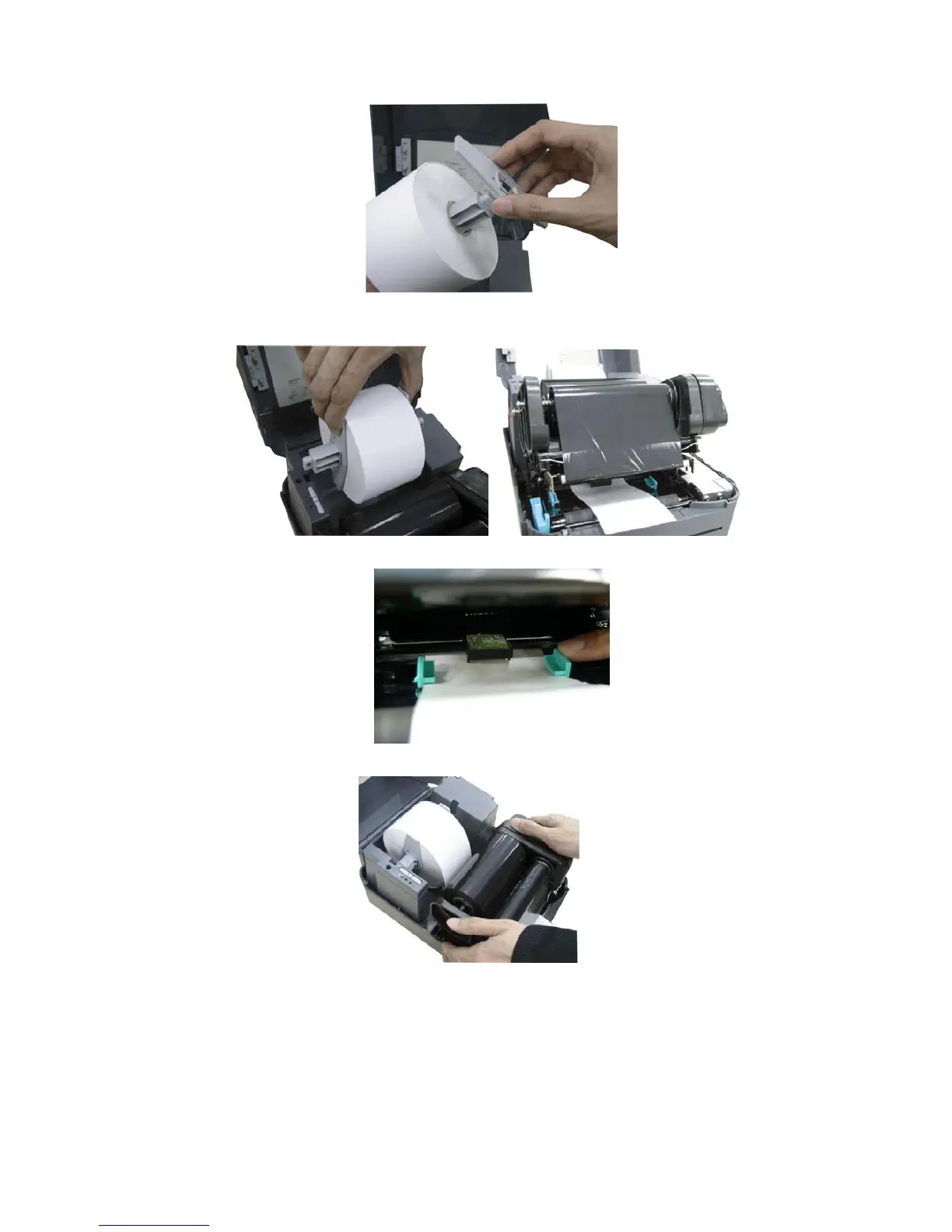

4. Place the label roll into the label roll mount. Feed the label under the carriage

and over the platen.

5. Adjust the label guide to fit the width of the media.

6. Engage the printer carriage.

7. Wind the label roll until it becomes adequately taut.

8. Close the printer cover and press the FEED button three or four times until the

green ON-LINE indicator illuminates.

9. When the printer is out of ribbon or media, the ON-LINE LED will not illuminate

and the ERR. LED will flash. Reload the ribbon or media without turning off the

printer power. Press the FEED button three or four times until the ON-LINE

LED illuminates. The printing job will be resumed without data loss.

Other manuals for TSC TTP-244 Plus

Questions and Answers:

Need help?

Do you have a question about the TSC TTP-244 Plus and is the answer not in the manual?

General

Resolution	203 dpi
Print Speed	4 ips
Print Method	Thermal Transfer / Direct Thermal
Weight	2.5 kg
Max. Print Width	4.25 inches
Max. Print Length	90 inches
Processor	32-bit RISC CPU
Interface	RS-232
Label Width	1 inch to 4.4 inches
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Humidity	25% to 85% non-condensing
Label Thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
