12
3.

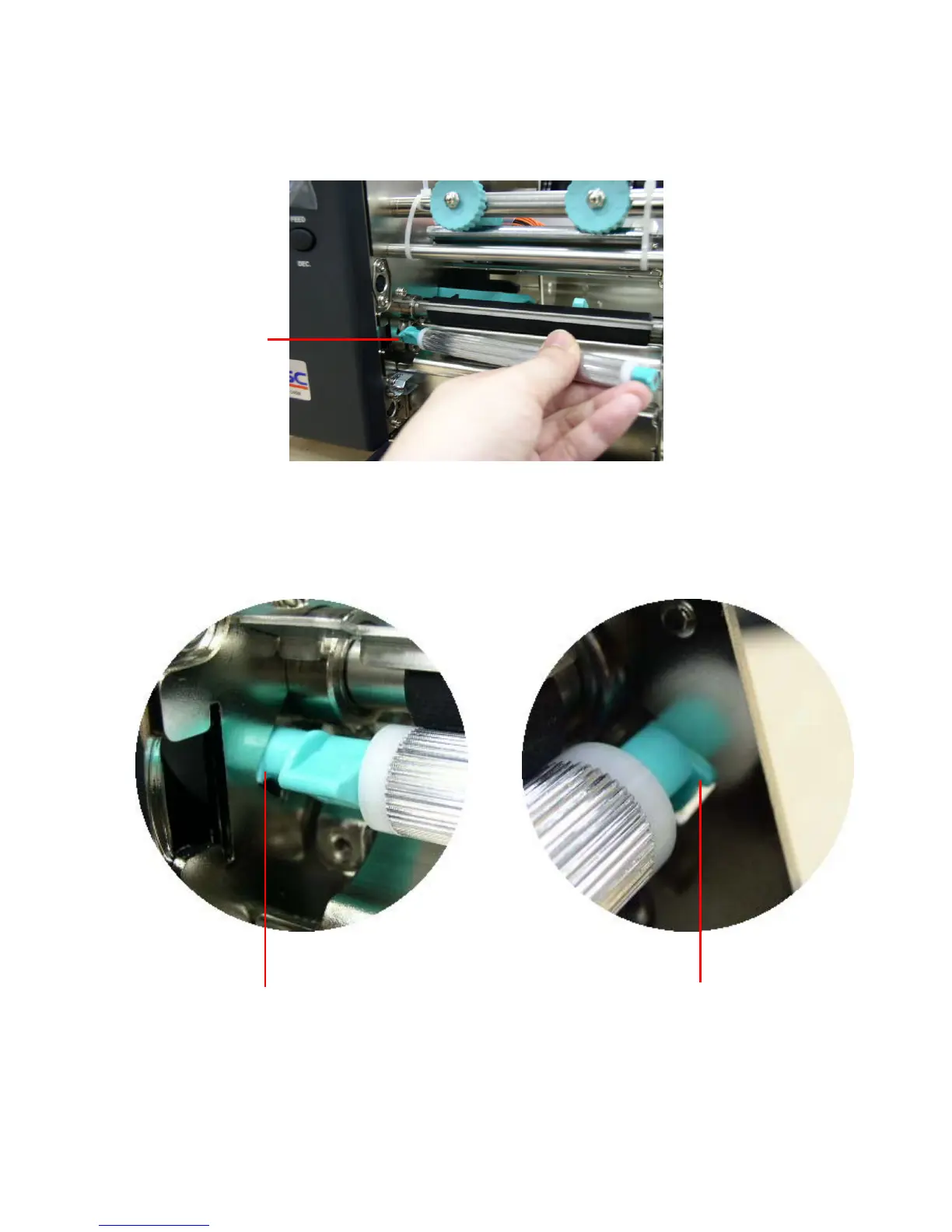

Insert the peel off roller left side bush to the notch at the middle plate and insert
the peel off roller right side bush to the not
ch at the right frame. Please refer to
the magnified left and right side bush location for installation.
Insert the
left side
first.
Left side
Right side
Bush location
Bush location
15
17
Table of Contents
Default Chapter
3
Table of Contents
3
1 Product Introduction
5
Compliances
5
2 Getting Started
6
Unpacking and Inspection
6
Equipment Checklist
6
Printer Parts
7
Buttons, Indicators and Adjustment Knobs
8
3 Set up
11
Setting up the Printer
11
Ribbon Installation
11
Label Roll Installation
12
Cutter Module Installation (Option)
13
Peeler Kit Installation (Option)
14
Loading Label for Peel-Off Mode
20
Self-Test
22
Dump Mode
23
4 Using Ttp-246M/344M
25
Power-On Utilities
25
Gap/Black Mark Sensor Calibration Utility
25
Printer Initialization
26
Troubleshooting Guide
28
5 Printer Cleaning
30
Print Head Cleaning
30
Printer Cover Cleaning
30
Internal Parts Cleaning
30
APPENDIX Lcd Control Panel Operation Map
31
