14
5.

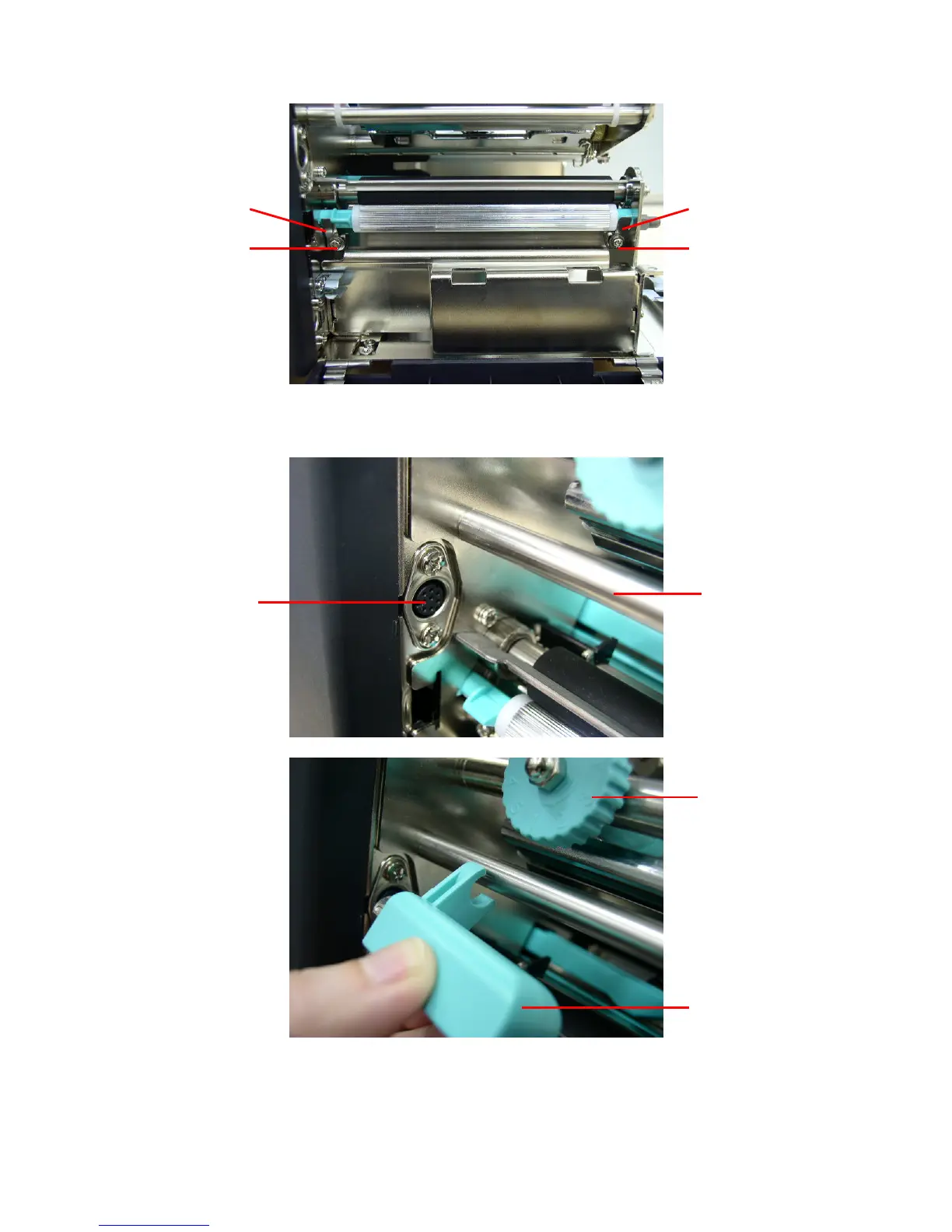

Hook the peel-off sensor on the bar which is near by the peel off sensor
connector. Plug in the peel-off sensor assembly to the connector.
Peel-off sensor assembly
Bar
Peel-off sensor
assembly connector
Screw
Screw
Print head pressure
adjustment knob
Right side leaf spring
Left side leaf spring
