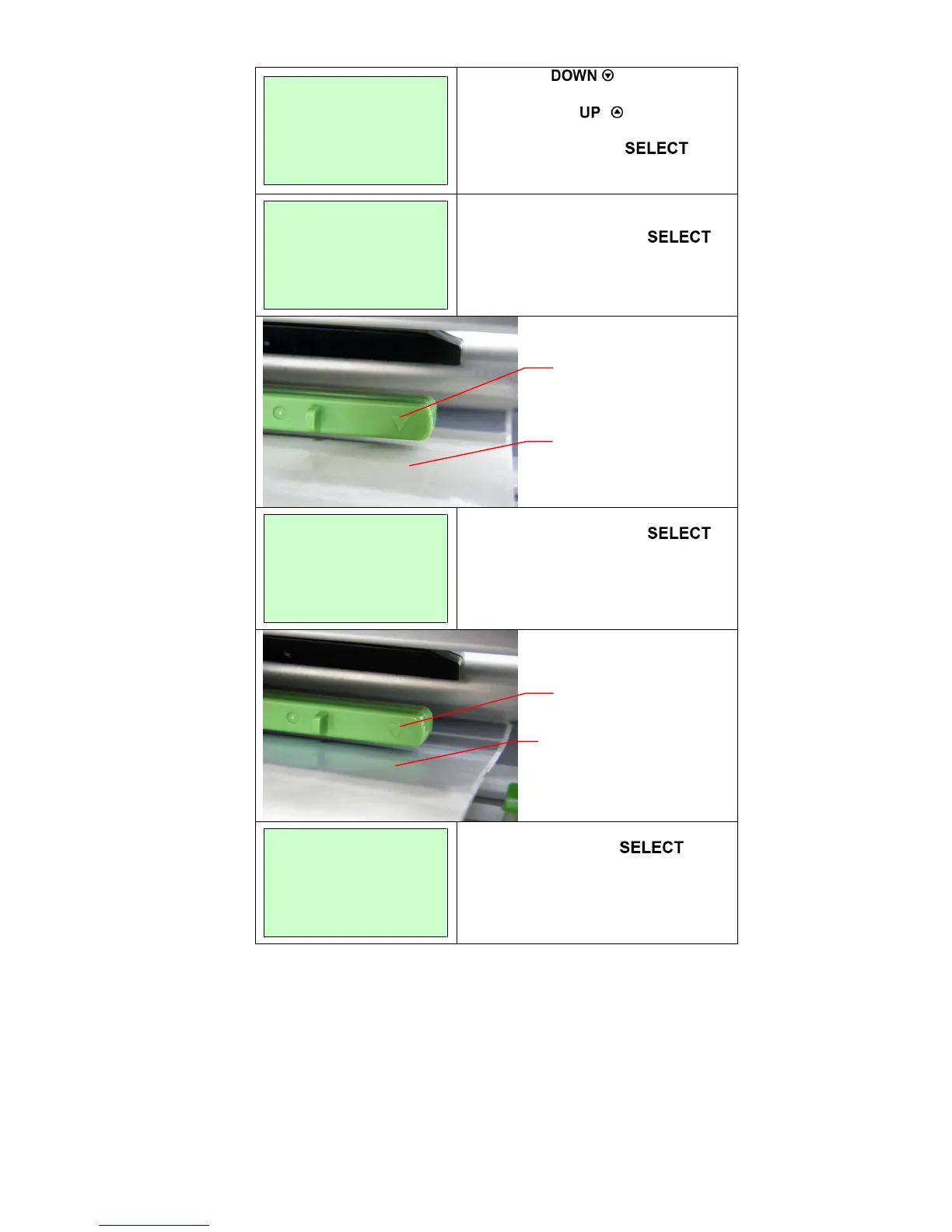

Gap Size
0024 dot
2. Press the button to move
the cursor from left digit to right digit,
and press the button to set
the value from “0” to “9” and the “dot/
mm/ inch”. Press the
button to set the gap size into the
printer.
Gap Mode
Scan Backing
Intensity x
Ref. Level xxx
3. Open the print head mechanism, put
the label backing (liner) under the
media sensor. Press the
button to set the value into the printer.
Gap Mode
Scan Paper
Intensity x
Ref. Level xxx
4. Then, Put the label with liner under the
media sensor. Press the
button to set the value into the printer.
Gap Mode
Complete
Intensity x
Ref. Level xxx
5. The gap sensor calibration is
complete. Press the
button the LCD screen will return to
the previous menu.
A-3 Pre-Printed
This function will need to set the paper length and gap size before
auto-calibrate the sensor sensitivity. It can get the sensor sensitivity more
accurately for pre-printed media.
Media sensor location
Label backing
(liner)
Media sensor location
Label with liner
