TSI Instruments Aerotrak 9303 Service Manual

2-14 AeroTrak
®
Handheld and Remote Airborne Particle Counters

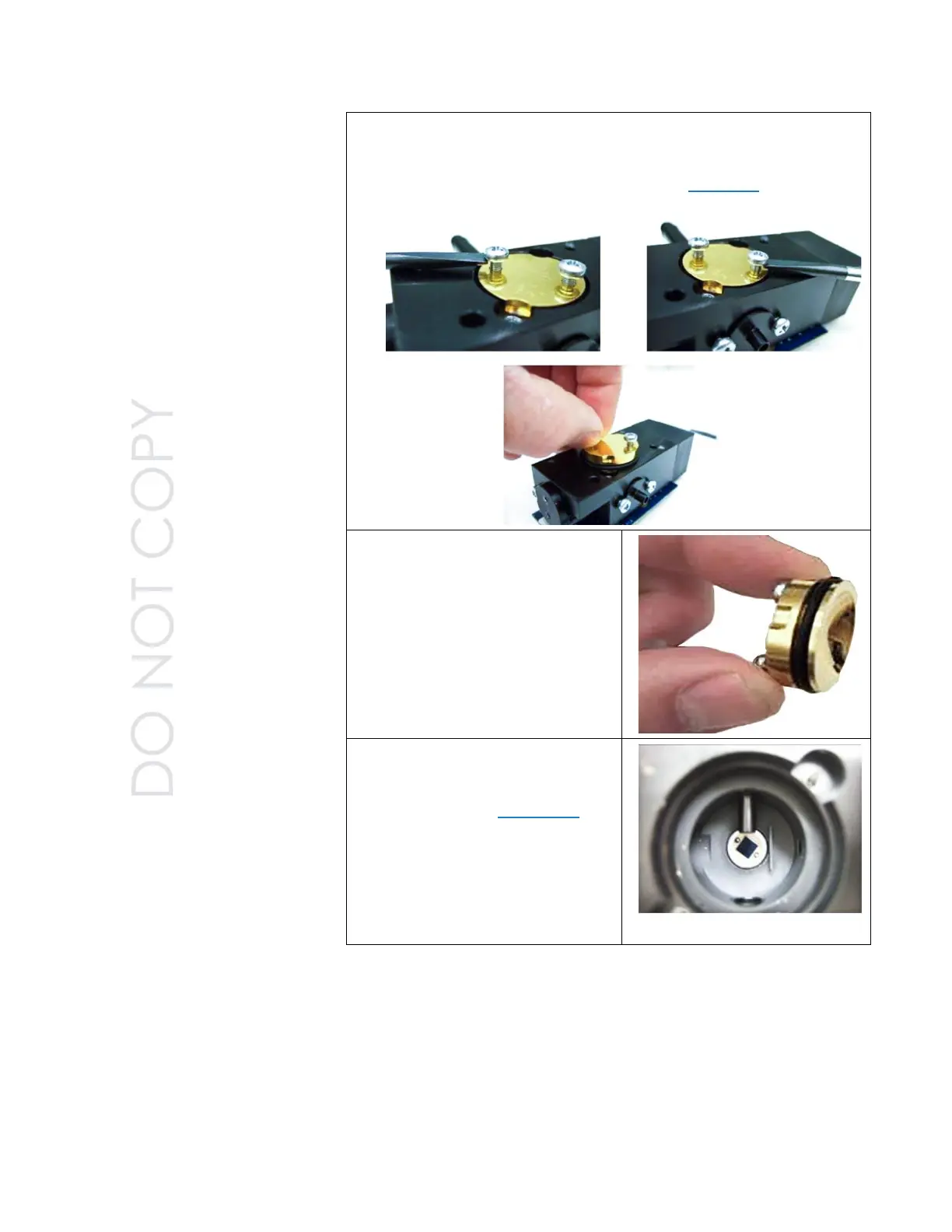

2. Thread the two screws you removed into the two threaded holes in
the backside of the mirror. Use a flat blade screw driver, inserted
under the screw head and carefully pry up on each one to remove
mirror from optics block (mirror removal tool S7000150 can also be
used).
3. Inspect mirror surface. If dirty,
blow off with clean dry
compressed air. If it still does not
appear clean, wipe gently with a
soft lens cleaning tissue dipped
in isopropyl alcohol.
4. Inspect O-ring on mirror for
cracks or abrasions and replace
if necessary. See service kit
9303 O-Ring Kit (S7000011)
item 1.
5. If the O-ring is dry, apply a small
amount of vacuum grease to the
outer surface.
6. Inspect the sample inlet near the
detector and clean if necessary.

TSI Instruments Aerotrak 9303 Specifications

General

Size Range .	0.3 to 25 µm
Channel Sizes .	0.3 µm and 5.0 µm fixed; 0.5, 1.0, 2.0, or 2.5 µm selectable middle channel.
Counting Efficiency .	50% at 0.3 µm; 100% for particles > 0.45 µm (per ISO 21501-4 and JIS)
Concentration Limits .	2, 000, 000 particles/ft3 at 5% coincidence loss
Zero Count Level .	<1 count / 5 minutes (per ISO 21501-4 and JIS B9921)
Flow Rate .	0.1 CFM (2.83 L/min)
Calibration .	NIST traceable with TSI® calibration system
Sampling Modes .	Manual and automatic
Sampling Time .	1 second to 99 minutes 59 seconds
Sampling Frequency .	1 to 999 cycles or continuous
Light Source .	Long life laser diode
Sample Probe/Tubing .	Isokinetic sampling probe
Exhaust .	Internal HEPA filter
Vacuum Source .	Internal pump
External Surface .	High impact injection molded plastic
Communication Mode .	USB serial output
Data Storage .	1, 500 sample records
Status Indicators .	Low battery and service
Display .	3.2-in. (8.1 cm) 160 x 160 monochrome LCD
AC Power . (power to AC adapter)	110 to 240 VAC 50-60 Hz Universal in-line power supply with country specific plugs
DC Power . (power to instrument)	9 VDC @ 1.5 A
Battery .	Rechargeable Li-Ion
Battery Life .	Up to 4.5 hours of continuous use
Recharge Time .	< 3 hours

Weight and Dimensions

Dimensions (L x W x H)	9.1 x 6.3 x 2.4 in. (23 x 11 x 6.2 cm) (without isokinetic inlet)
Weight .	1.3 lbs (0.58 kg) with battery
