2.4.9 Dual 1Gb Ethernet Module
The Dual 1Gb Ethernet modules can be configured as either 2 x 1000BASE-T ports or 2 x 1000BASE-T1 ports.
2.4.9.1 1000BASE-T

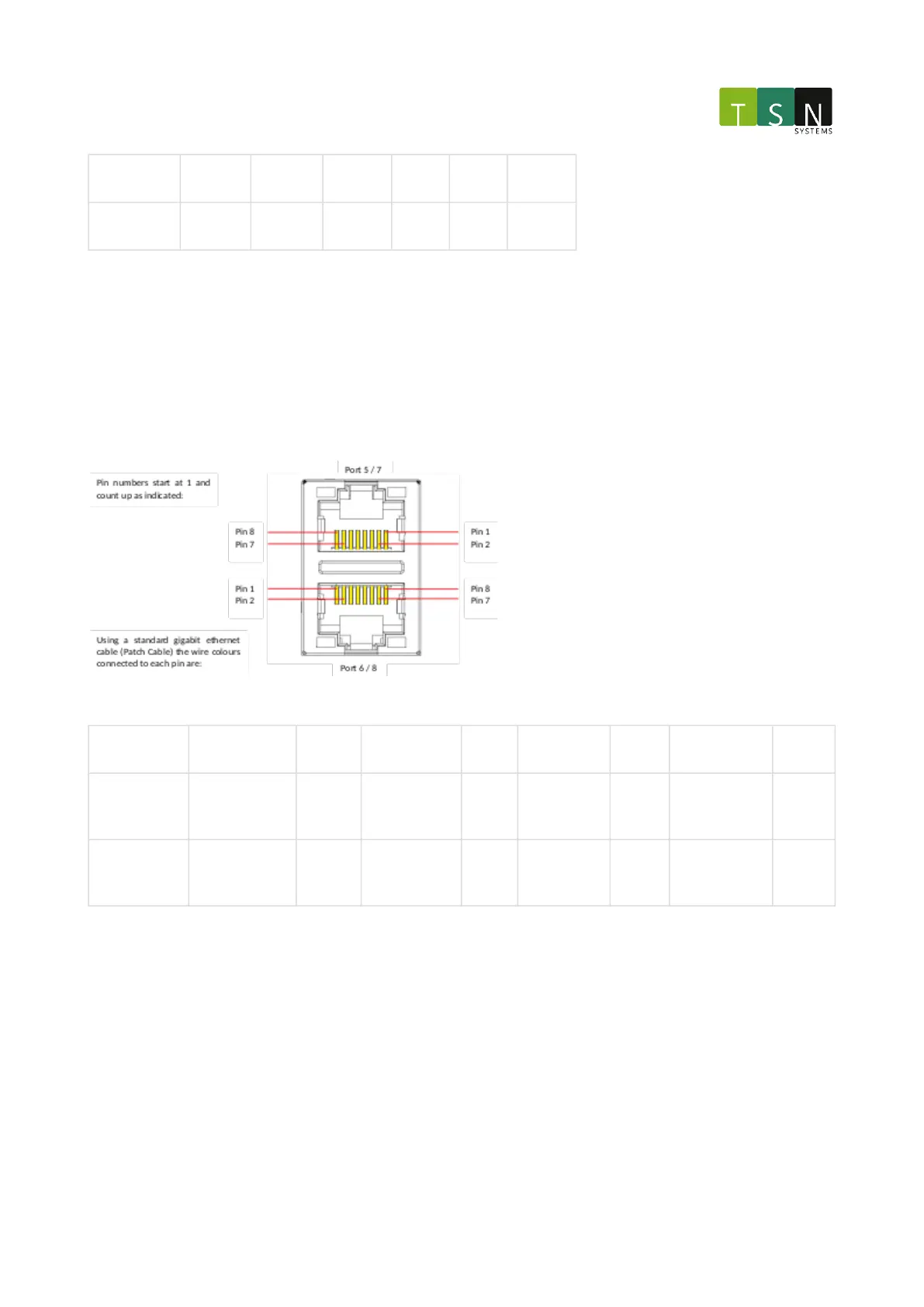

The Dual 1000BASE-T Tap Module uses a stacked RJ45 connector. For module slot 1 the top port is Port 5 and the
bottom is Port 6. For module slot 2 the top port is Port 7 and the bottom is Port 8. Below is a description of the
pinout.
Pin Number 1 2 3 4 5 6 7 8
Wire Colour White /
Orange
Orang
e
White /
Green
Blue White /
Blue
Green White /
Brown
Brown
Description BI_DA+ BI_DA-

BI_DB+ BI_D
C+
BI_DC- BI_D
B-
BI_DD+ BI_DD
-
2.4.9.2 1000BASE-T1
The Dual 1000BASE-T1Tap Module uses two specialized Molex connectors. For module slot 1 the left port is Port 5
and the right is Port 6. For module slot 2 the left port is Port 7 and the right is Port 8. These connectors require a
specialized cable that is supplied with the unit. Below is a description of the pinout.
The mating connector is the Molex0347910040and uses two Molex5600230421contacts.
