TSN Box Development – TSN Box 3.0 Getting Started Guide
This setup sets the role for T1 port 1 to Master, the transmit source to fpga_tx, and the capture source to phy_rx.
2.5.4.2 Packet generator with burst (PTP master)

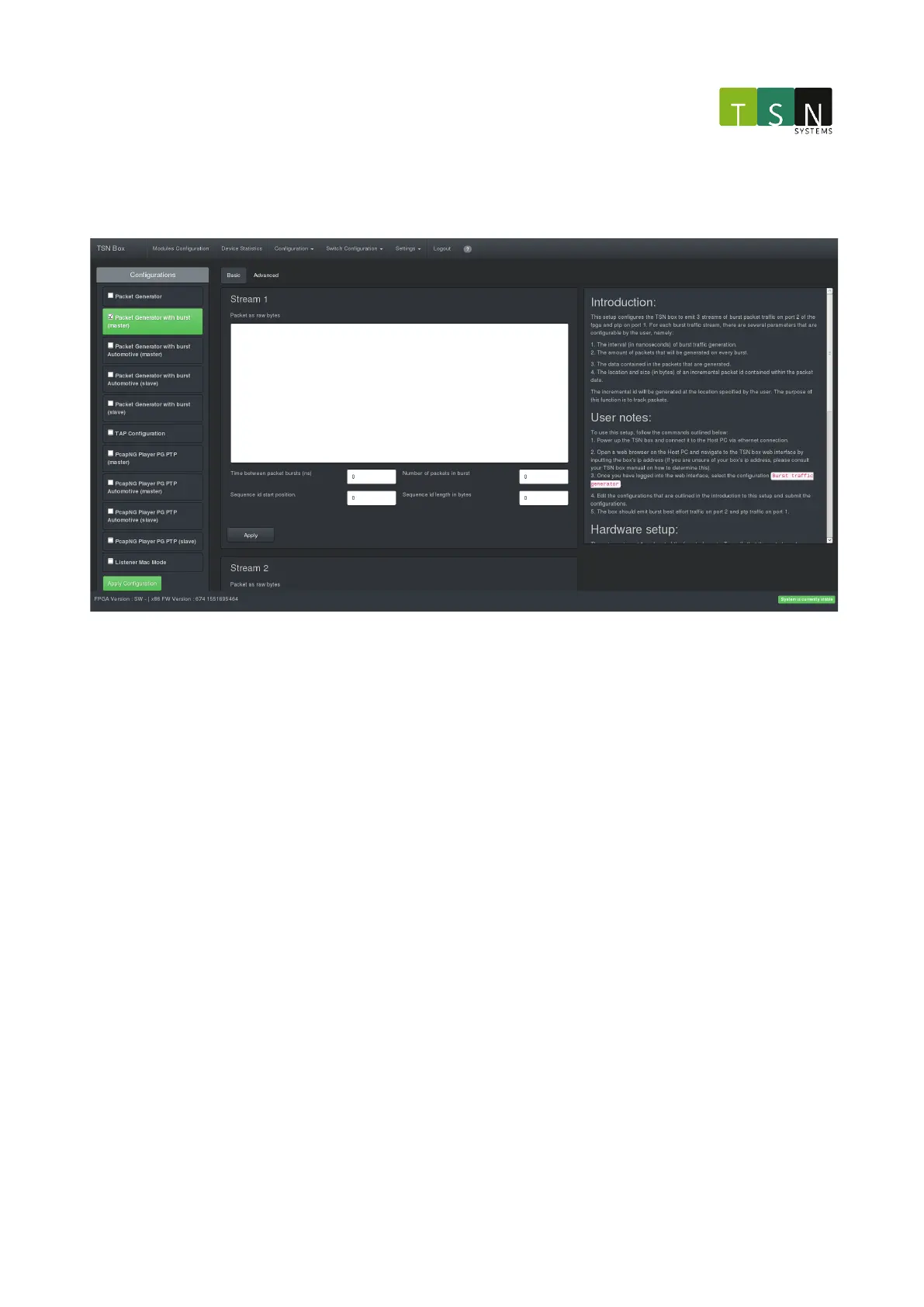

This setup configures the unit to emit 3 streams of burst packet traffic on ports 1-3 and PTP traffic on port 4. For
each burst traffic stream, there are several parameters that are configurable, namely:
• The interval (in nanoseconds) of burst traffic generation.
• The amount of packets that will be generated on every burst.
• The data contained in the packets that are generated.
• The location and size (in bytes) of an incremental packet id contained within the packet data
This setup sets the roles for T1 ports 1-4 to Master. For ports 1-4 the transmit sources are set to fpga_tx, and the
capture sources are set to phy_rx.
This is similar to the packet generator configuration above but it has PTP running on port 4 configured to run as
master when used
in conjunction with the Packet generator with burst PTP slave configuration shown below.
