TSN Systems Box 3.0 - Quad 100 Mbps Module

TSN Box Development – TSN Box 3.0 Getting Started Guide
Hardware – 13
2.4.10 Quad 100 Mbps Module
The Quad 100Mbps Module Slot can be configured with either a Quad 100BASE-T1 Module or a Quad 100BASE-TX
Module.
2.4.10.1 100BASE-T1

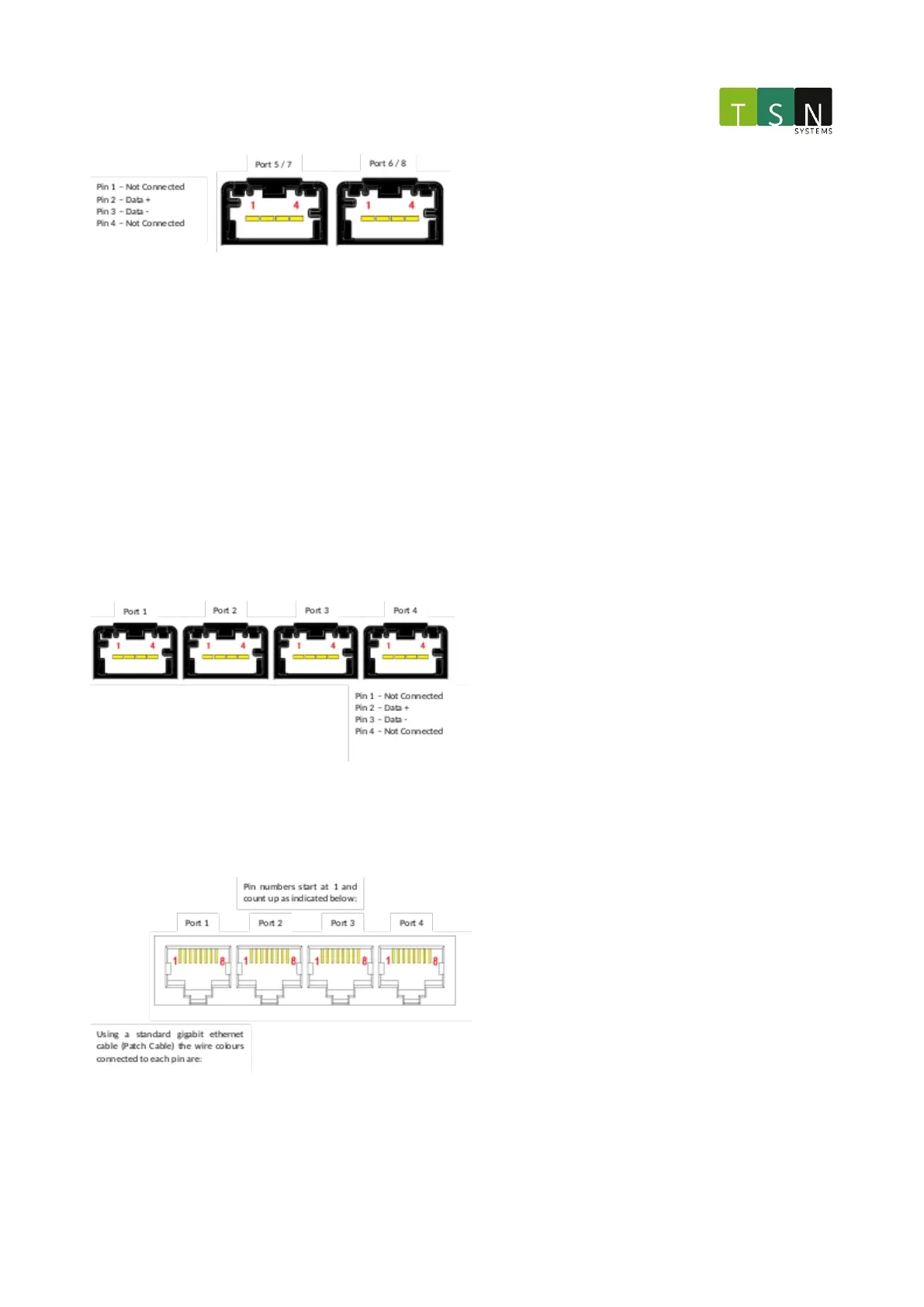

The Quad 100BASE-T1Tap Module uses four specialized Molex connectors. The ports are numbered 1 to 4 from left
to right. These connectors require a specialized cable that is supplied with the unit. Description of the pinout is
below.
The mating connector is the Molex0347910040and uses two Molex5600230421contacts.

2.4.10.2 100BASE-TX
The Quad 100BASE-TXTap Module uses fourstandard RJ45connectors. The ports are numbered 1 to 4 from left to
right. These connectorsare compatible with a standard RJ45 Ethernet cable. Below is a description of the pinout.

