Tunaylar Load Line 2 - Power Supply Connection

49
10.6 Power Supply

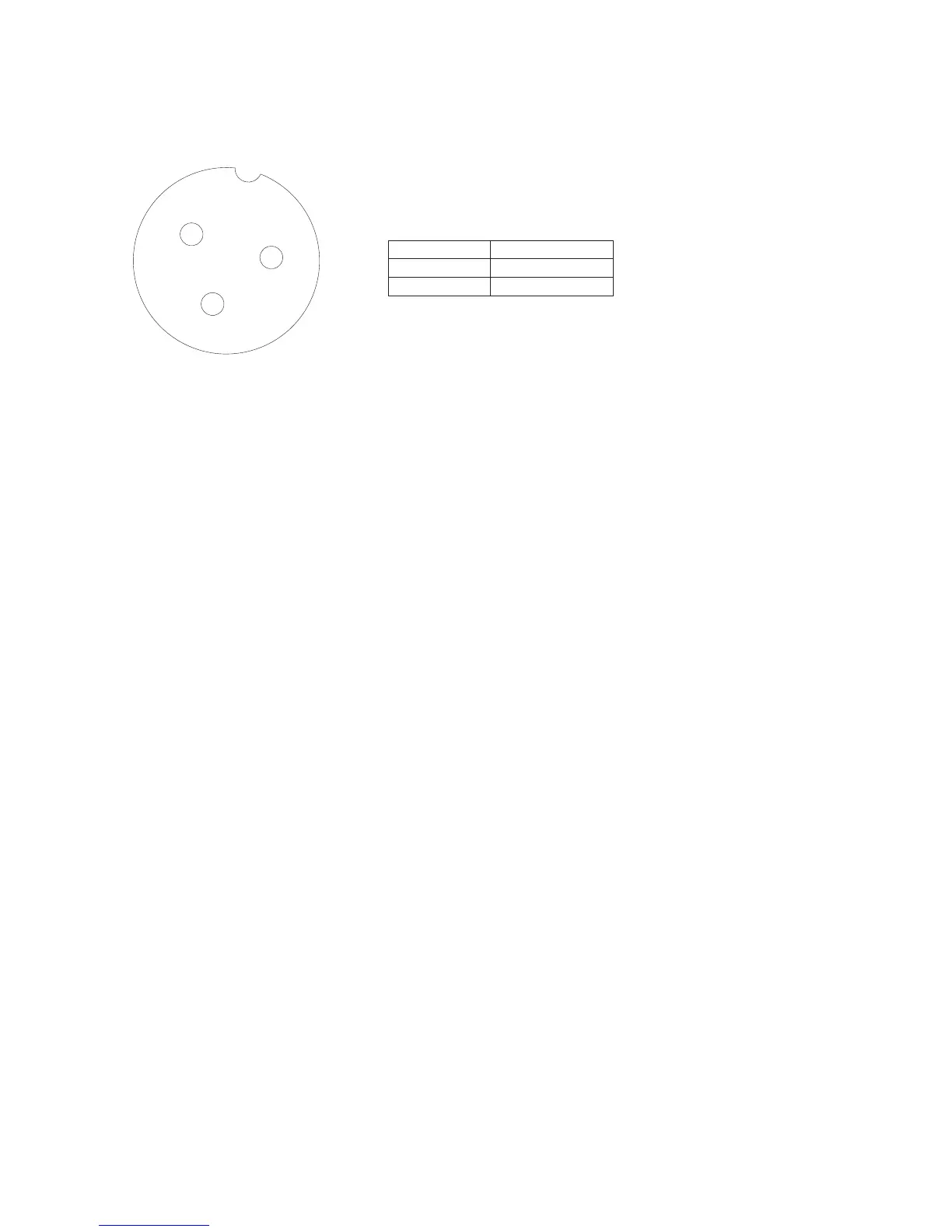

PIN NO DESCRIPTION
1 +12VDC
2 0 VDC
The power supply wire must be grounded and must be channelled separately from other
supply wires with different voltages, from the load cell wires and the logic input/output
wires.
Supply voltage: 12VDC ~ 50/60 Hz
The instrume nt is grounded for practical reasons, therefore check the presence of valid
ground protection.
1
2
3
KM.LL2E.002
