TurboChef i5 Owner's Manual

GENERAL OVEN INFORMATION / INSTALLATION
31.25” (794 mm)
31.1” (790 mm)
28.25” (718 mm)
21.25”
(540 mm)
25.75” (654 mm)
11.4” (290 mm)
2.5” (64 mm)
28.25” (718 mm)
24.3”
(618 mm)
25.75” (654 mm)
15.15” (385mm)
2.5” (64 mm)
PLUG
24.5” (622 mm)
23.5” (597 mm)
PLUG
PLUG
PLUG
28.1” (714 mm)
27.2” (691 mm)
Theory of Operation
Utilizing TurboChef’s patented technology to
rapidly cook food without compromising quality,
the i5 and i3 ovens maximize throughput and
versatility with a large cavity size and the ability to
cook with most any metal pan. The control system
precisely coordinates independent top and bottom
impinged airflow with top-launched microwave to
deliver superior quality, throughput, and speed.
Integral catalytic converters allow for UL®-
certified ventless operation.
This manual includes instructions for installing,
cleaning, and operating the i5 and i3 ovens. If you
have questions that are not addressed in this man-
ual, contact Customer Support (800.90TURBO,
+1 214.379.6000) or your Authorized Distributor.
Features
- Capacitive touch screen with industrial-grade
tempered glass cover
- Manual mode for on-the-fly cooking
- Add from cookbook option that allows a user to
access and save TurboChef cookbook recipes
- Up to 10 selectable languages
- Integrated tutorials for daily operation
and maintenance
- Enhanced data logging for troubleshooting
assistance and learning which products are
being cooked and when
- New menu editing tools and USB
- WiFi ready for the connected kitchen
Dimensions
Oven Dimensions
Cook Cavity Dimensions
Clearances
1
Measurement i5 Oven i3 Oven
Height
24.3” (618 mm) 21.25” (540 mm)
Width
28.1” (714 mm) 24.5” (622 mm)
Depth (door closed)
31.1” (790 mm) 31.25” (794 mm)
Depth (door open)
43.4” (1102 mm) 39.65” (1007 mm)
Weight
275 lb. (125 kg) 245 lb. (111 kg)
Measurement i5 Oven i3 Oven
Height
10” (254 mm) 6.9” (175 mm)
Width
24” (610 mm) 19.4” (493 mm)
Depth (door open)
16” (406 mm) 14.75” (375 mm)
Depth (door closed)
14” (356 mm) 12.75” (324 mm)
Volume
2.22 ft
3
(63 liters) 1.14 ft
3
(32.3 liters)
Measurement i5 Oven i3 Oven
Top
19” (483 mm) 19” (483 mm)
Sides
2” (51 mm) 2” (51 mm)

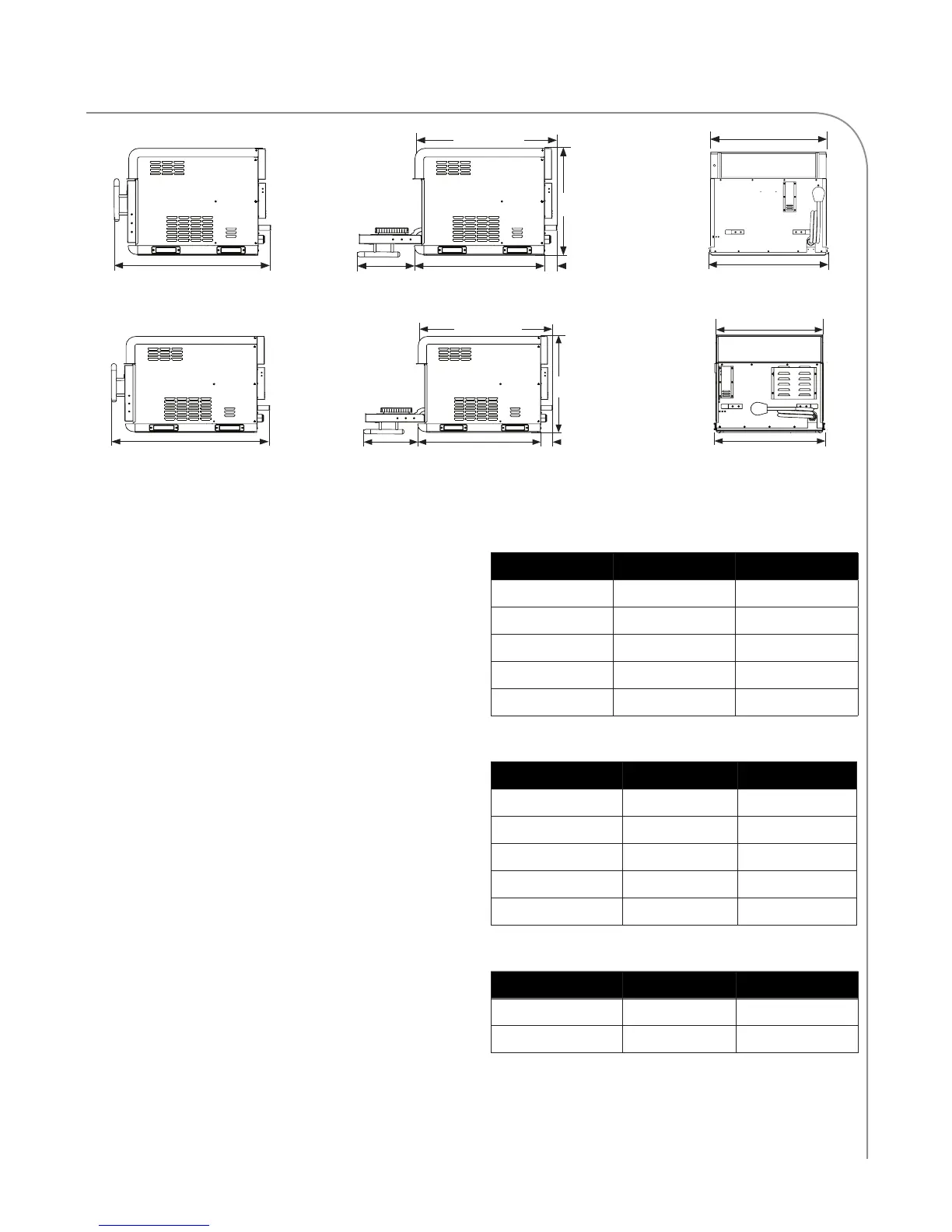

Figure 2: i3 Touch Oven Dimensions
31.25” (794 mm)
31.1” (790 mm)
28.25” (718 mm)
21.25”
(540 mm)
25.75” (654 mm)
11.4” (290 mm)
2.5” (64 mm)
28.25” (718 mm)
24.3”
(618 mm)
25.75” (654 mm)
15.15” (385mm)
2.5” (64 mm)
PLUG
24.5” (622 mm)
23.5” (597 mm)
PLUG
PLUG
PLUG
28.1” (714 mm)
27.2” (691 mm)
Figure 1: i5 Touch Oven Dimensions

TurboChef i5 Specifications

General

Brand	TurboChef
Model	i5
Category	Oven
Language	English
