Parameterizing and Configuring
Configuring the devices at EtherNet/IP
108
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
Activating QuickConnect via the web server
Activate the Activate QuickConnect checkbox in the web server

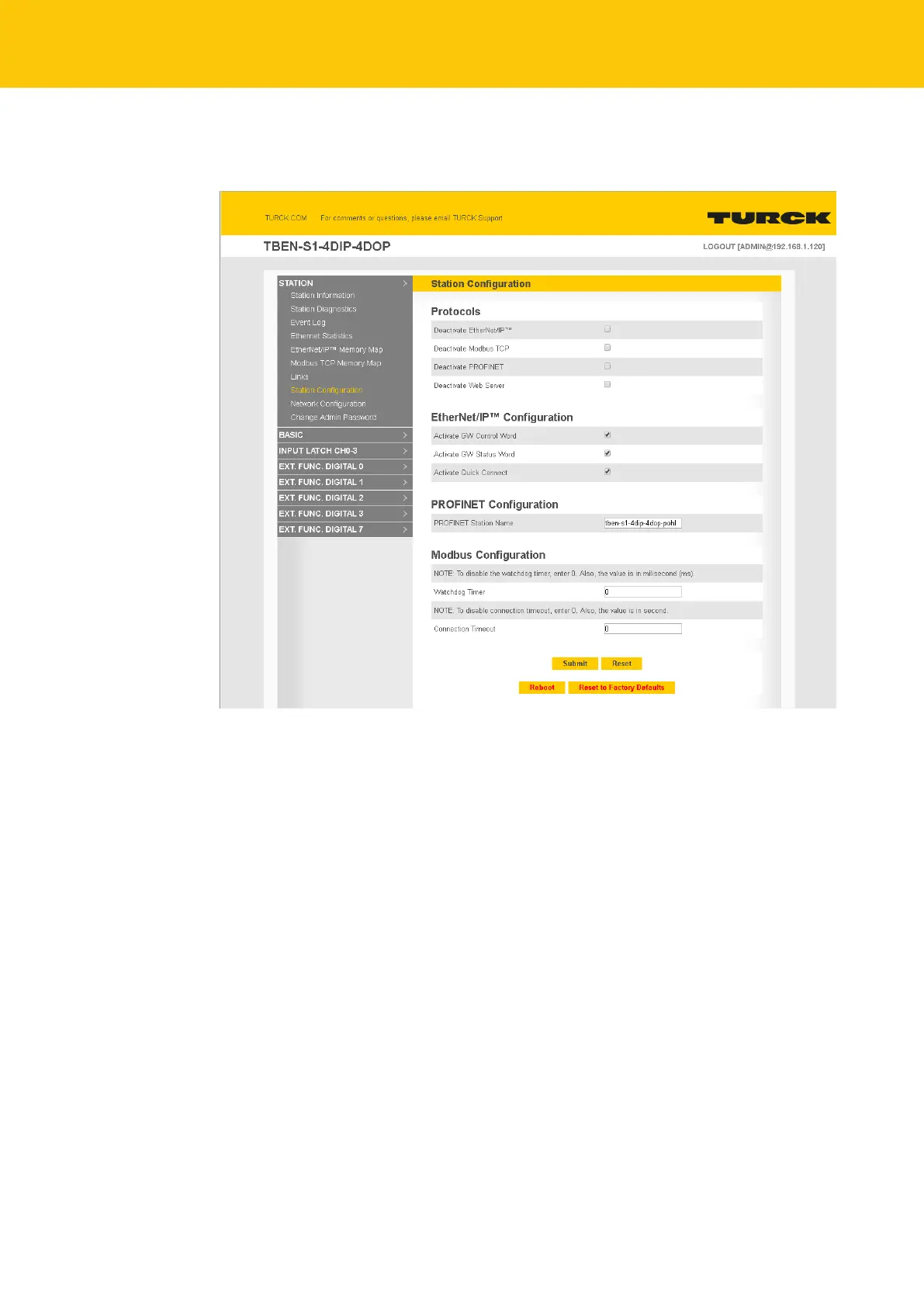

Fig.69: Activating Quick Connect in the web server
8.8.4 Device Level Ring (DLR)
The devices support DLR. The Device Level Ring (DLR)-redundancy protocol is used to increase
the stability of EtherNet/IP networks. DLR-enabled devices have an integrated switch and can
thus be integrated into a ring topology. The DLR protocol is used to detect an interruption in
the ring. If the data line ins interrupted, data are sent through an alternative network section, so
that the network can be reconfigured as soon as possible. DLR-capable network nodes are
provided with extended diagnostic functions which enable the devices to localize errors and
thus decrease the time for error search and maintenance.
