5.3 Attach TBEN-S modules to a mounting plate
 Fasten the module or module composite to a mounting plate with two M4 screws per
device. The maximum tightening torque for the M4 screws is 1.3 Nm
 Avoid mechanical stresses.
 Optional: Ground the device.

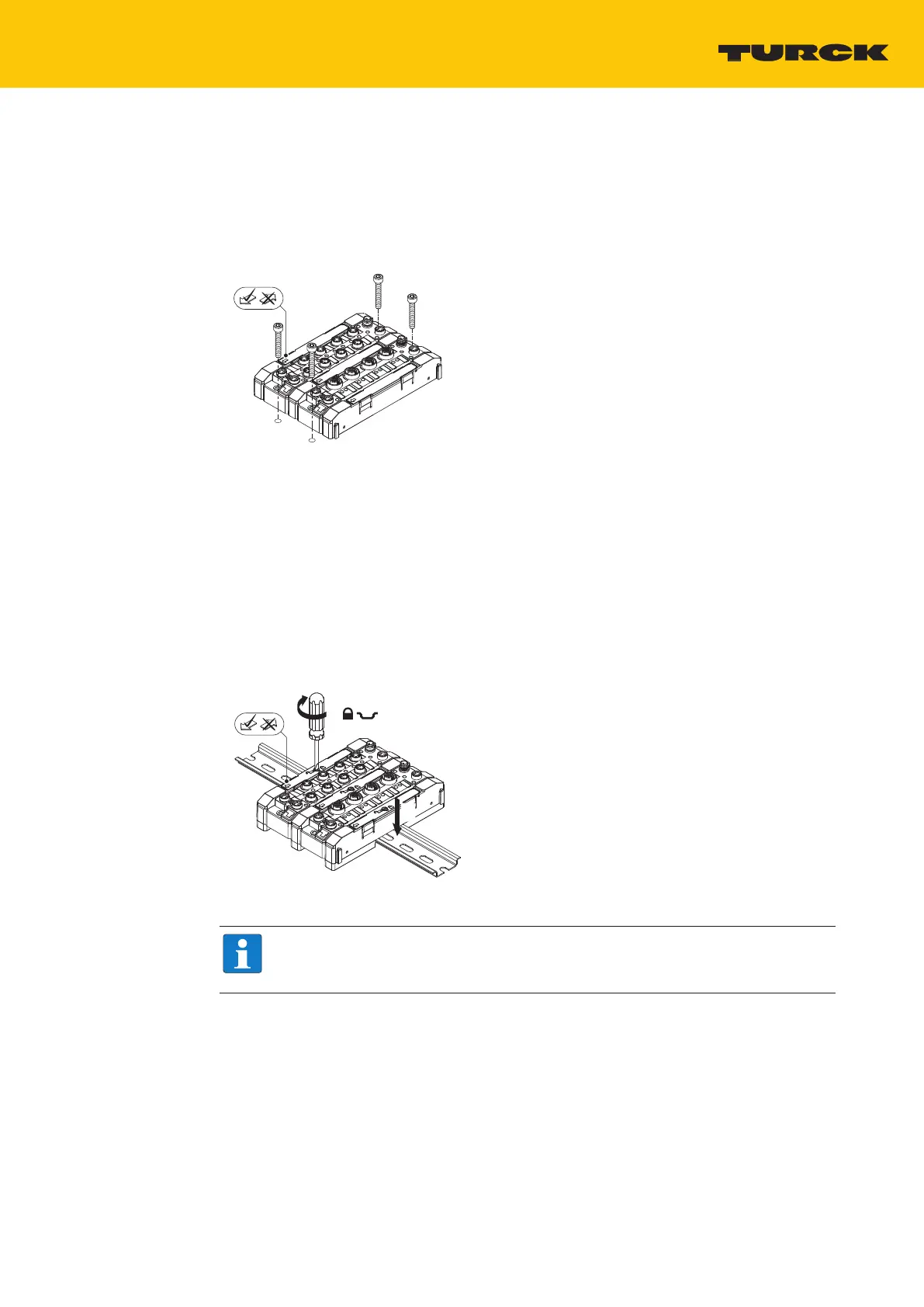

Fig.17: Mounting the device on a mounting plate
5.4 Mounting TBEN-S modules on a DIN rail (TS35)
 For composite or single mounting: Mount connectors to the left and to the right of the
module.
 Place the module or module composite on the DIN rail so that the cut-outs in the con-
nector enclose the DIN rail (1).
 Avoid mechanical stresses.
 Close the rotating bolt of the connector with a screwdriver (2).
 Optional: Ground the device.
5
6
Fig.18: Mounting a module composite on a DIN rail
NOTE
To increase stability on the DIN rail, end brackets can be mounted on the right and
left of the module or the module combination.
