V04.00 | 2021/05
169
Select the PLC.
Click
Go online
.

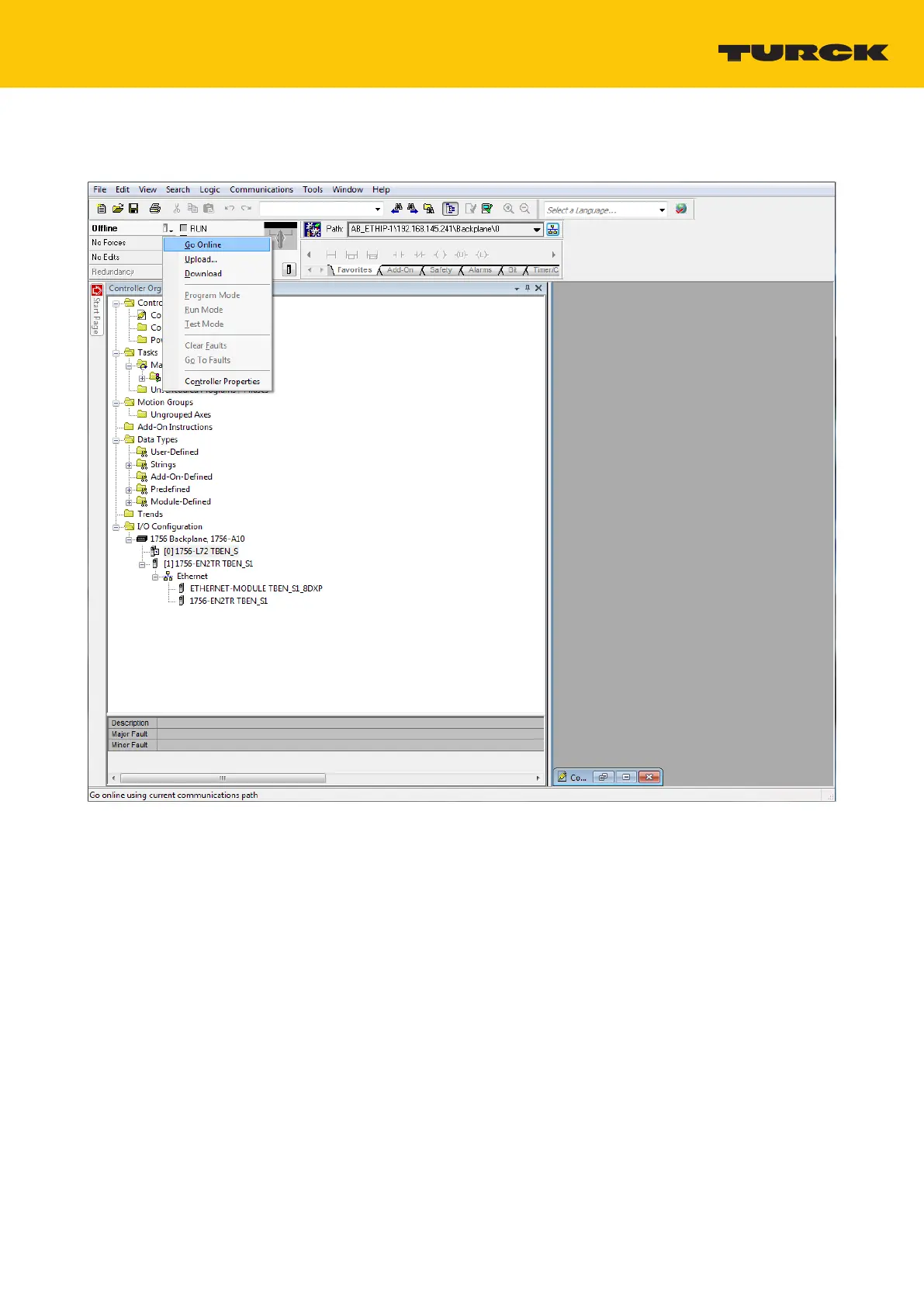

Fig.77: Going online with the device
Click
Download
In the following dialog (Connect To Go Online).
Confirm all following messages.
a
The project is loaded to the PLC. The online connection is established.
168
170
