Connecting
Connecting analog sensors and actuators
34
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
Single ended
3-wire connection
4
1 3
2
5
v
1 = V
aux
1
2 = AI+
3 = AI–/GND
4 = n.c.
5 = FE
Flange = FE
C0…C3
+
Signal +
–

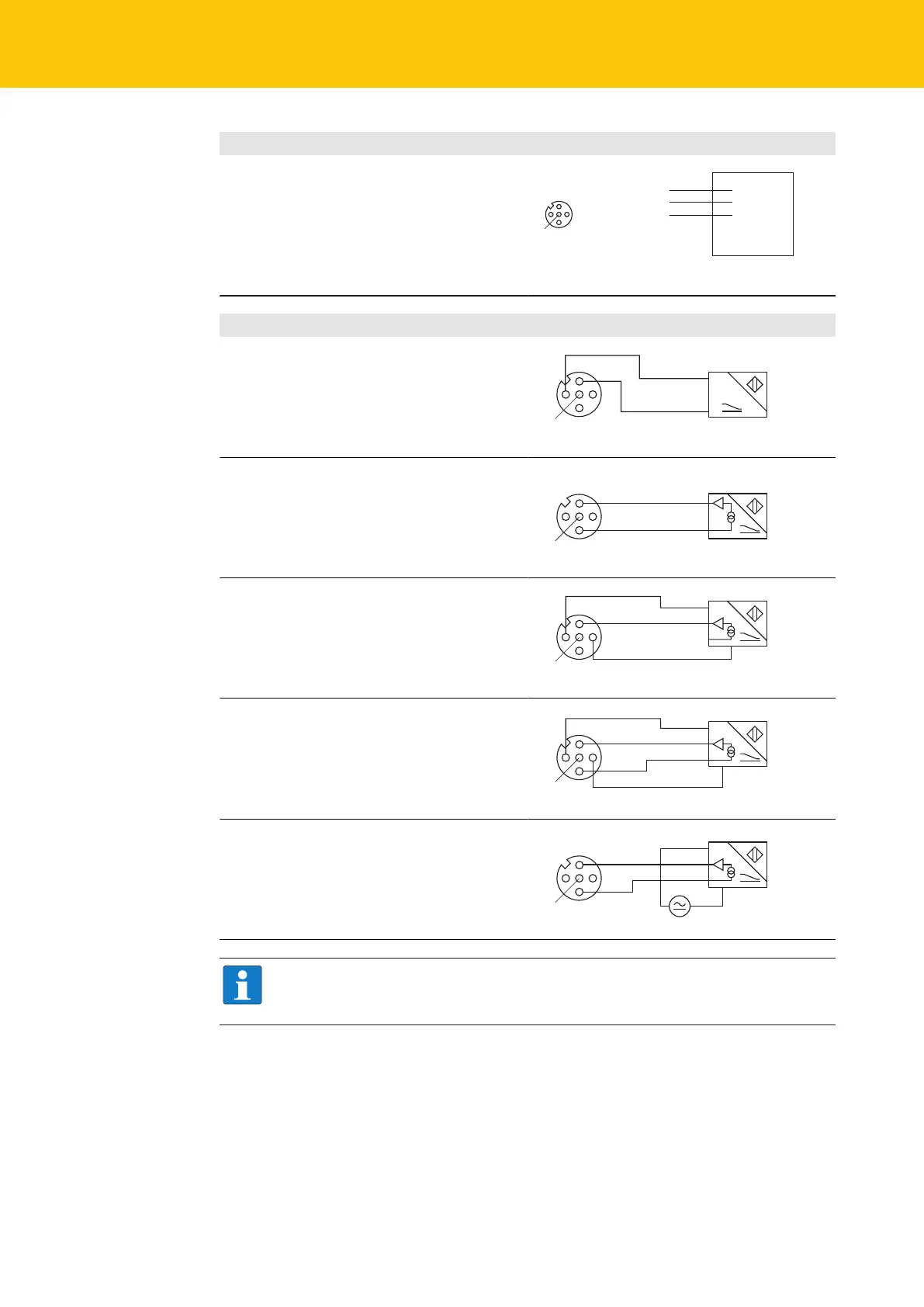

Connection examples – current/voltage
2-wire (current)
I
4
1 3
2
5
I +
I 
2-wire (voltage)
U +
U 
4
1 3
2
5
3-wire (current/voltage)
+

U/I +
4
1 3
2
5
4-wire (current/voltage)
+

U/I +
U/I 
4
1 3
2
5
4-wire (current/voltage) with external power
supply
+

U/I +
U/I 
4
1 3
2
5
NOTE
The 2 wire and 3 wire connection are only possible in the single ended voltage or
current measurement mode.
