Commissioning
Setting the IP address
38
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com

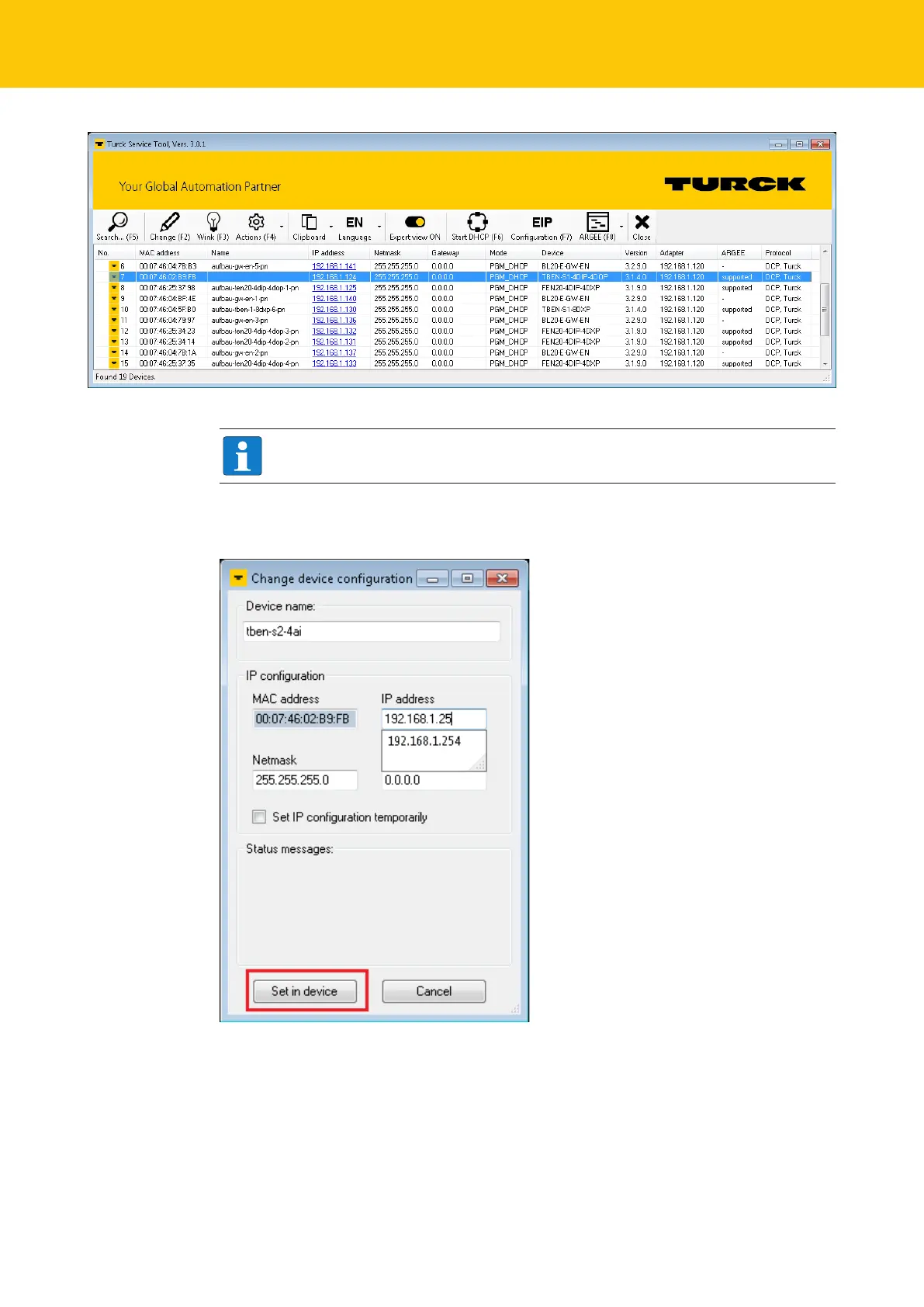

Fig.45: Turck Service Tool – select the device to be addressed
NOTE
Clicking the IP address of the device opens the web server.
Change the IP address and if necessary the network mask and gateway.
Accept the changes by clicking
Set in device
.
Fig.46: Turck Service Tool – Change device configuration
37
39
Table of Contents
Default Chapter
3
Table of Contents
3
1 About These Instructions
7
Target Groups
7
Explanation of Symbols Used
7
Other Documents
7
Feedback about These Instructions
7
2 Notes on the Product
8
Product Identification
8
Scope of Delivery
8
Legal Requirements
8
Turck Service
8
3 For Your Safety
9
Intended Use
9
General Safety Notes
9
Notes on Ex Protection
9
ATEX and Iecex Approval Requirements for Use in Ex Area
9
4 Product Description
10
Device Overview
10
Display Elements
11
Properties and Features
11
Functions and Operating Modes
12
Multiprotocol Technology
12
Digital Modules - Extended Digital Functions
13
Turck Field Logic Controller (FLC)
14
Backplane Ethernet Extension Protocol (BEEP)
14
Possible Ethernet Network Structures
15
Ethernet Daisy Chain - Max. Number of Connected Modules
17
Technical Accessories
18
5 Mounting
19
Mounting the Device in Zone 2 and Zone 22
19
Combine TBEN-S Modules for Mounting
19
Combine TBEN-S Modules for Composite Mounting to a Mounting Plate
19
Combine TBEN-S Modules for Single and Composite Mounting on a DIN Rail
20
Attach TBEN-S Modules to a Mounting Plate
21
Mounting TBEN-S Modules on a DIN Rail (TS35)
21
Mounting the Device Outdoors
22
Grounding the Device
22
Equivalent Wiring Diagram and Shielding Concepts
22
Fieldbus and I/O Level Shielding
23
Grounding the Device - I/O and Fieldbus Level
24
Grounding the Device - Mounting on a DIN Rail
24
Grounding the Device - Mounting on a Mounting Plate
25
6 Connecting
26
Connecting the Device in Zone 2 and Zone 22
26
Connecting the Device to Ethernet
26
Quickconnect and Fast Start-Up Applications
27
Connecting the Supply Voltage
27
Supply Concept
28
Connecting Digital Sensors and Actuators
30
Connecting Analog Sensors and Actuators
33
7 Commissioning
37
Setting the IP Address
37
8 Parameterizing and Configuring
39
Parameters - Overview
39
I/O Channel Parameters
39
PROFINET Parameters
43
Process Input Data - Overview
44
Process Input Data - Digital Modules
44
Process Input Data - Analog Modules
51
Process Output Data - Overview
53
Process Output Data - Digital Modules
53
Process Output Data - Analog Modules
56
Configuring Devices at PROFINET
57
PROFINET IO Device Model
57
Address Setting in PROFINET
57
FSU - Fast Start-Up (Prioritized Startup)
58
MRP (Media Redundancy Protocol)
61
User Data for Acyclic Services
61
Connecting the Device to a Siemens PLC in PROFINET
64
Installing the GSDML-File
64
Connecting the Devices to the PLC
66
Configuring Device Functions
67
Assigning the PROFINET Device Name
68
Setting the IP Address in TIA Portal
69
Setting Module Parameters
70
Going Online with the PLC
71
PROFINET - Mapping
71
Configuring Devices at Modbus TCP
72
Implemented Modbus Functions
72
Modbus Registers
72
Data Width of the I/O Modules
75
Register Mapping of TBEN-S Modules
76
Meaning of the Register Bits
92
Error Behavior (Watchdog)
94
Connecting the Devices to CODESYS PLC with Modbus TCP Master
95
Connecting the Device to the PLC
96
Configuring the Network Interface
100
Modbus TCP Slave - Configuring the IP Address
102
Defining Modbus Channels
103
Going Online with the PLC
105
Reading Process Data
105
Configuring the Devices at Ethernet/Ip
106
Common Ethernet/Ip Features
106
EDS Files and Catalog Files
106
Quickconnect (QC)
106
Device Level Ring (DLR)
108
Diagnostic Messages Via Process Data
109
Ethernet/Ip Standard Classes
110
VSC - Vendor Specific Classes
140
Connecting the Devices to a Rockwell PLC with Ethernet/Ip
164
Adding the Devices from the Catalog Files to the New Project
164
Configuring the Device in RS Logix
166
Parameterizing the Device
167
Going Online with the PLC
168
Reading Process Data
170
9 Operating
171
LED Displays
171
Module Leds TBEN-S
171
Channel Leds - Digital Modules
172
Channel Leds - Analog Modules
172
Evaluating Diagnostic Data
173
PROFINET Diagnostics
173
Measurement Value Representation of Analog Modules
182
Measurement Value Representation - TBEN-S2-4AI
182
Measurement Value Representation - TBEN-S2-4AO
204
10 Troubleshooting
217
11 Maintenance
218
Executing the Firmware Update
218
12 Repair
222
Returning Devices
222
13 Disposal
222
14 Technical Data
223
General Technical Data
223
Techincal Data - TBEN-S1-8DIP
225
Technical Data - TBEN-S1-8DIP-D
226
Technical Data - TBEN-S2-8DIP
227
Technical Data - TBEN-S1-8DOP
228
Technical Data - TBEN-S1-4DIP-4DOP
229
Technical Data TBEN-S1-4DXP
230
Technical Data TBEN-S1-8DXP
231
Technical Data TBEN-S2-8DXP
232
14.10 Technical Data - TBEN-S2-4AI
233
14.10.1 Basic Error at 25 °C
235
Measurement Error Total (FSR)
236
14.10.3 Example Calculation: Operational Error Limit and Absolute Max. Total Error
237
14.11 Technical Data - TBEN-S2-4AO
238
14.12 Block Diagrams
239
15 Appendix: Approvals and Markings
241
16 Turck Subsidiaries - Contact Information
242
