TVS WEGO 110 User Manual

42
MAINTENANCE
MAINTENANCE
1. Measure the free play of the front brake lever at
lever end as shown in the figure.
2. The free play of the brake lever before the
engagement of brake should be between 10
~ 12 mm.
3. If the measured free play more than the limit,
adjust the nut provided at the front wheel end to
obtain the correct play.

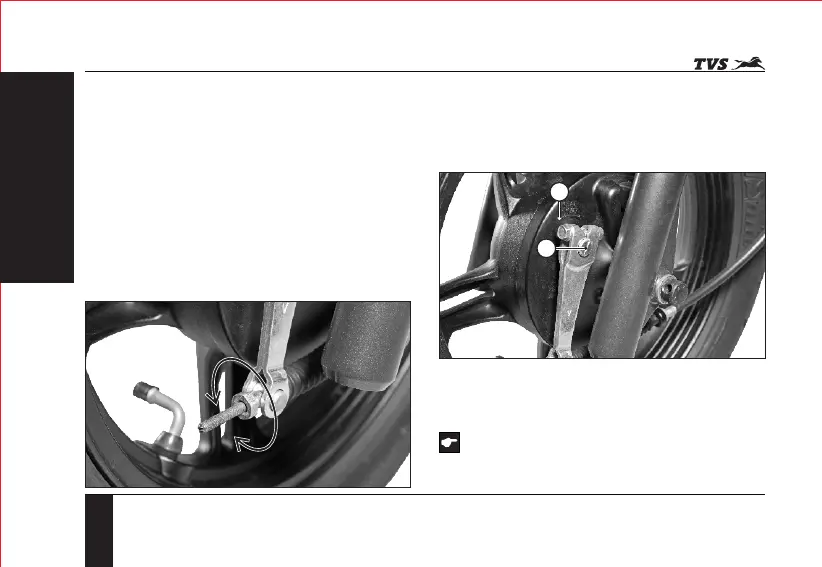

4. Turn the adjuster nut in clockwise direction for
reducing the free play or in anti-clockwise
direction for increasing the free play.
Brake shoe wear indicator (Drum brake)
When brake is applied, wear limit index mark (1) on the
front brake cam should be within the wear limit
indicator (2) on the front brake panel.
1
2
In case the wear limit index mark (1) is going beyond
wear limit indicator (2), index the lever to next slot with
the help of Dealer to extend shoe life.
Caution
Replace the brake shoes as a set, if the wear limit indicator
shows beyond the wear limit even after indexing the lever.

TVS WEGO 110 Specifications

General

Engine Capacity	109.7 cc
Front Brake	Drum
Rear Brake	Drum
Wheel Type	Alloy
Kerb Weight	108 kg
Seat Height	770 mm
Front Suspension	Telescopic
Starting Method	Kick & Electric Start
Tyre Type (Front)	Tubeless
Tyre Type (Rear)	Tubeless
Wheel Size (Front)	12 inch
Wheel Size (Rear)	12 inch
Ground Clearance	150 mm
Engine Type	4-stroke, Single-cylinder, Air-cooled
Fuel Tank Capacity	5 liters
Rear Suspension	Unit Swing
Transmission	CVT
