48
MAINTENANCE
MAINTENANCE
3. Place a support below the foot board to prevent
vehicle from falling and lift the vehicle up.
4. Dislocate the wheel assembly along with brake
panel from the front fork. Separate the brake
panel from the wheel and take out the wheel.
5. Reverse the procedure for reassembling. While
reassembling ensure to locate the lug on the fork
leg L to the slot in the brake panel.

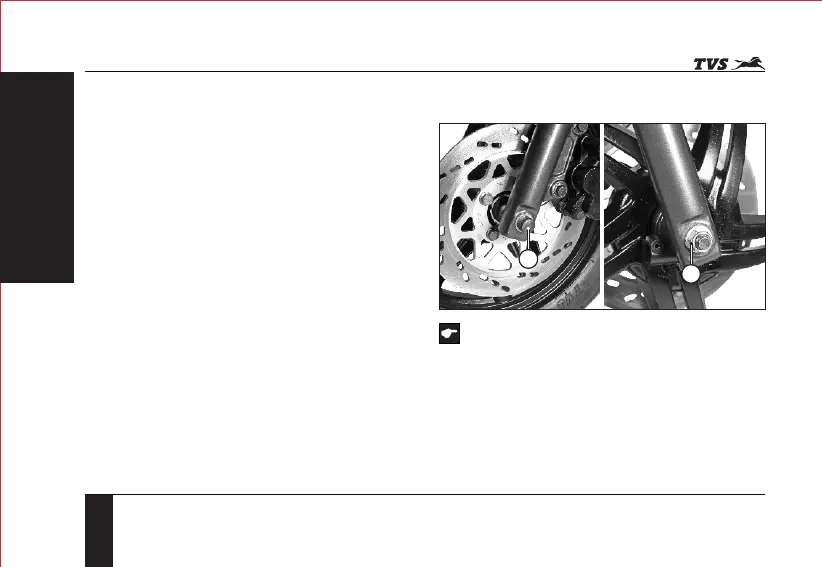

Disc brake
1. Remove the axle nut (1) along with a washer.
2. Pull out the axle (2) along with a washer and take
out a spacer from the left side of the wheel.
3. Place a support below the foot board to prevent
vehicle from falling and lift the vehicle up.
4. Remove the wheel assembly along with the hub
drive while dislocating the wheel disc from the
caliper assembly.
5. Dislocate the hub drive from the wheel assembly
and take out the wheel.
6. Reverse the procedure for reassembling while
ensuring the proper seating of wheel disc in the caliper
1
2
assembly and lug on fork leg R to the slot in the hub
drive.
In disc brake vehicle, care should be taken not to disconnect,
twist or damage the brake hose while removing the wheel
assembly. Do not press the brake lever, when wheel is
removed.
Caution
REAR WHEEL REMOVAL
1. Place the vehicle on the centre stand.
2. Hold the rear brake firmly and remove the wheel
mounting nut (A) along with a washer.
To Next Page
