MAINTENANCE
MAINTENANCE

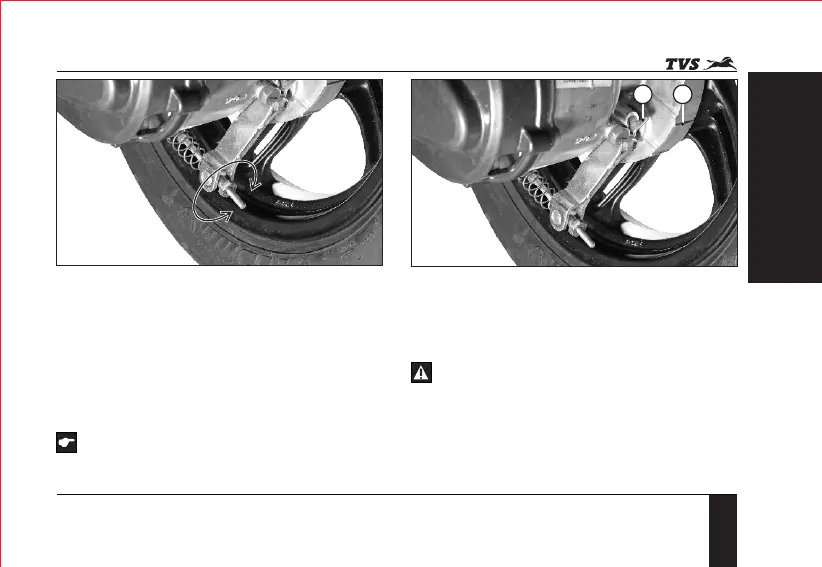

4. Turn the adjuster nut in clockwise direction for
reducing free play or in anti-clockwise direction
for increasing the free play.
Brake shoe wear indicator
When brake is applied, wear limit index mark (1) on the
rear brake cam should be within the wear limit
indicator (2) on the crankcase LH.
Replace the brake shoes as a set, if the wear limit indicator
shows beyond the wear limit even after indexing the lever.
Caution
Incase the wear limit index mark (1) is going beyond
wear limit indicator (2), index the lever to next slot with
the help of Dealer to extend shoe life.
Check both the brake play periodically (drum brake). However
the brake play needs to be adjusted more frequently
depending upon the usage.
Brakes are items of personal safety and should always be
maintained in proper condition.
Warning
