TYAN TS75-B8252 - Page 65

65
http://www.tyan.com

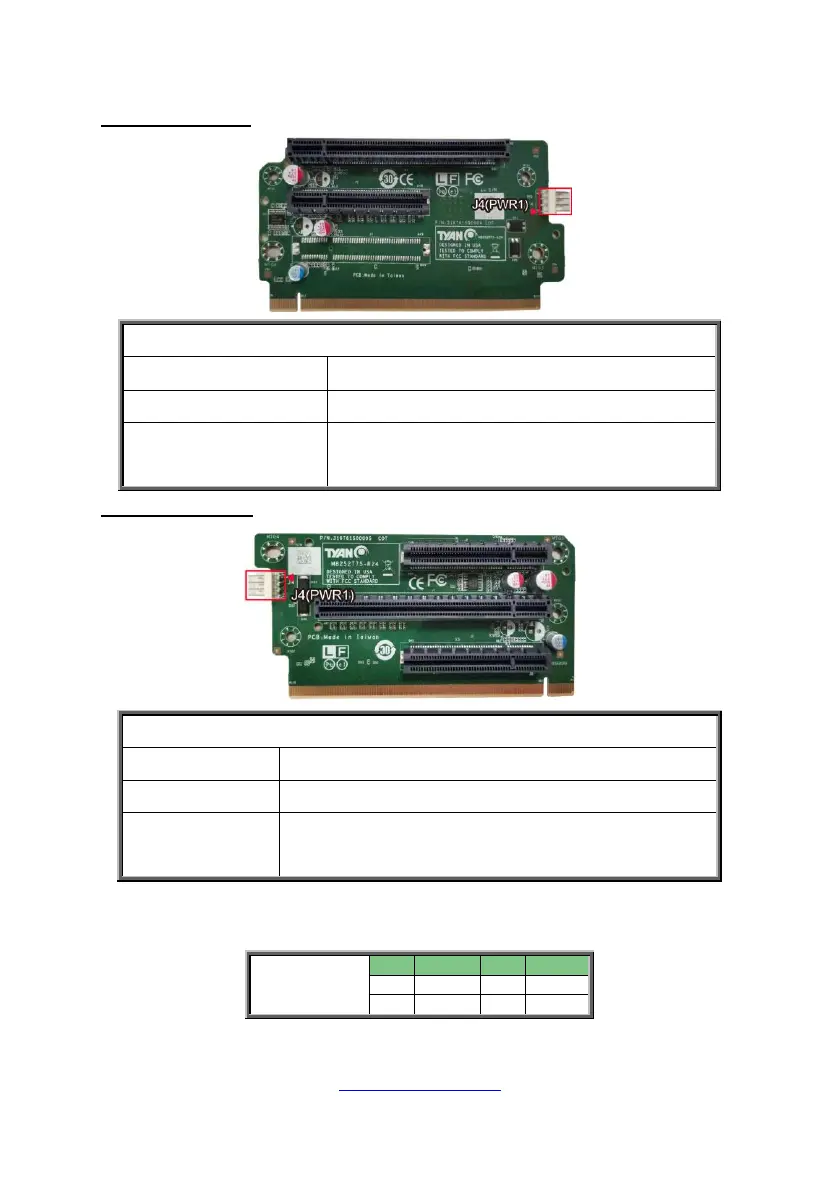

M8252T75-L24-3F
M8252T75-L24-3F Riser Card
PCB Dimensions:
 76.81mm x 270.04mm, thickness 1.6mm
Layer:
 12 layers
Features
 Support (2) PCIE Gen4 slots
PCIE x16 slot x1/ PCIE x8 slot x1
M8252T75-R24-3F
M8252T75-R24-3F Riser Card
PCB Dimensions:
 76.81mm x 270.04mm, thickness 1.6mm
Layer:
 12 layers
Features
 Support (3) PCIE Gen4 slots
PCIE x16 slot x1/ PCIE x8 slot x2
NOTE：J4 is reserved for PCI-E device which need more power, the power
could come from PSU
J4 (PWR1)
Pin
Signal
Pin
Signal
1
+12V
2
GND
3
GND
4
+5V
