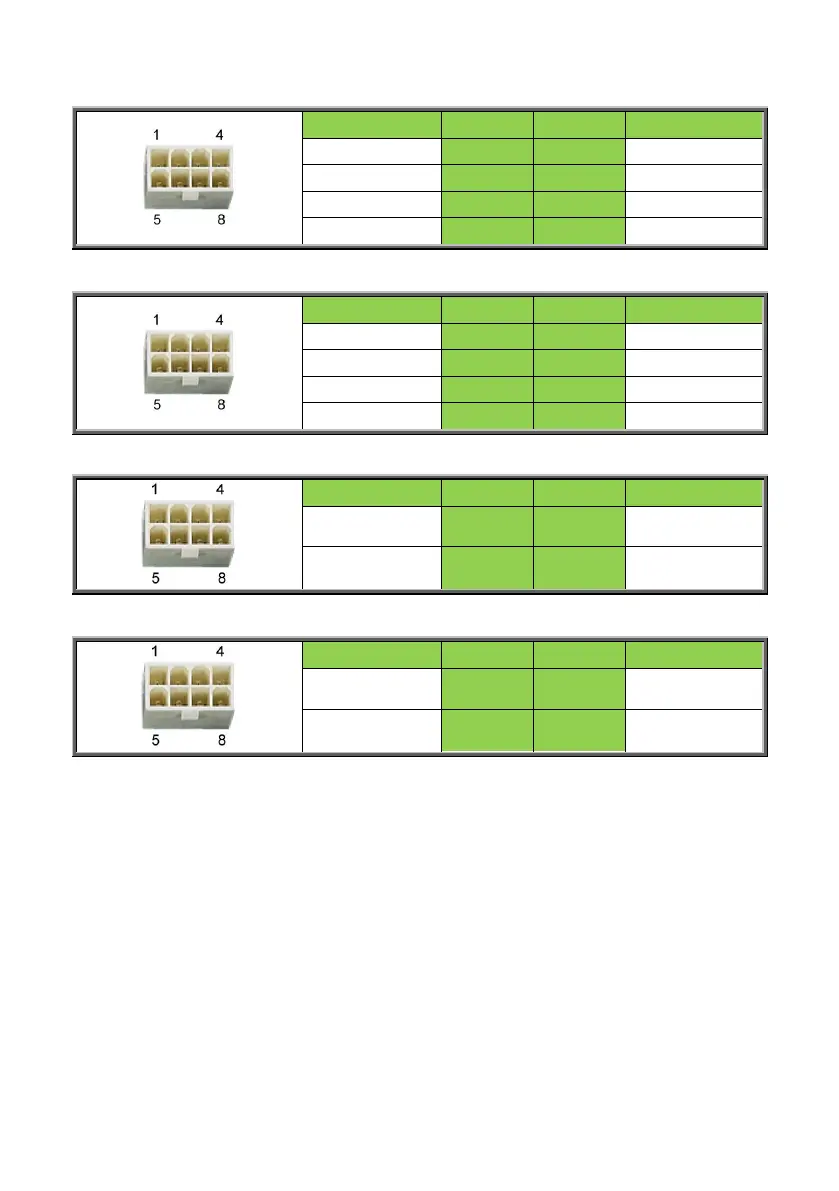

PE_PW5: 8-pin Power Connector to GPU Card
Signal
Pin
Pin
Signal
GND
1
5
P12_GPU2
GND
2
6
P12_GPU2
GND
3
7
P12_GPU2
GND
4
8
P12_GPU2
HD_PW1/HD_PW2: 8-pin Power Connector to GPU Card
Signal
Pin
Pin
Signal
GND
1
5
P12V_HD
GND
2
6
P12V_HD
GND
3
7
P12V_HD
GND
4
8
P12V_HD
HD_PW3: 8-pin Power Connector to GPU Card
Signal
Pin
Pin
Signal
VDD_12_PSU
1
3
GND
GND
2
4
VDD_5_RUN
SHD_PW4/ SHD_PW5/ SHD_PW6/ SHD_PW7/SHD_PW8
Signal
Pin
Pin
Signal
VDD_12_PSU
1
3
GND
GND
2
4
VDD_5_RUN
