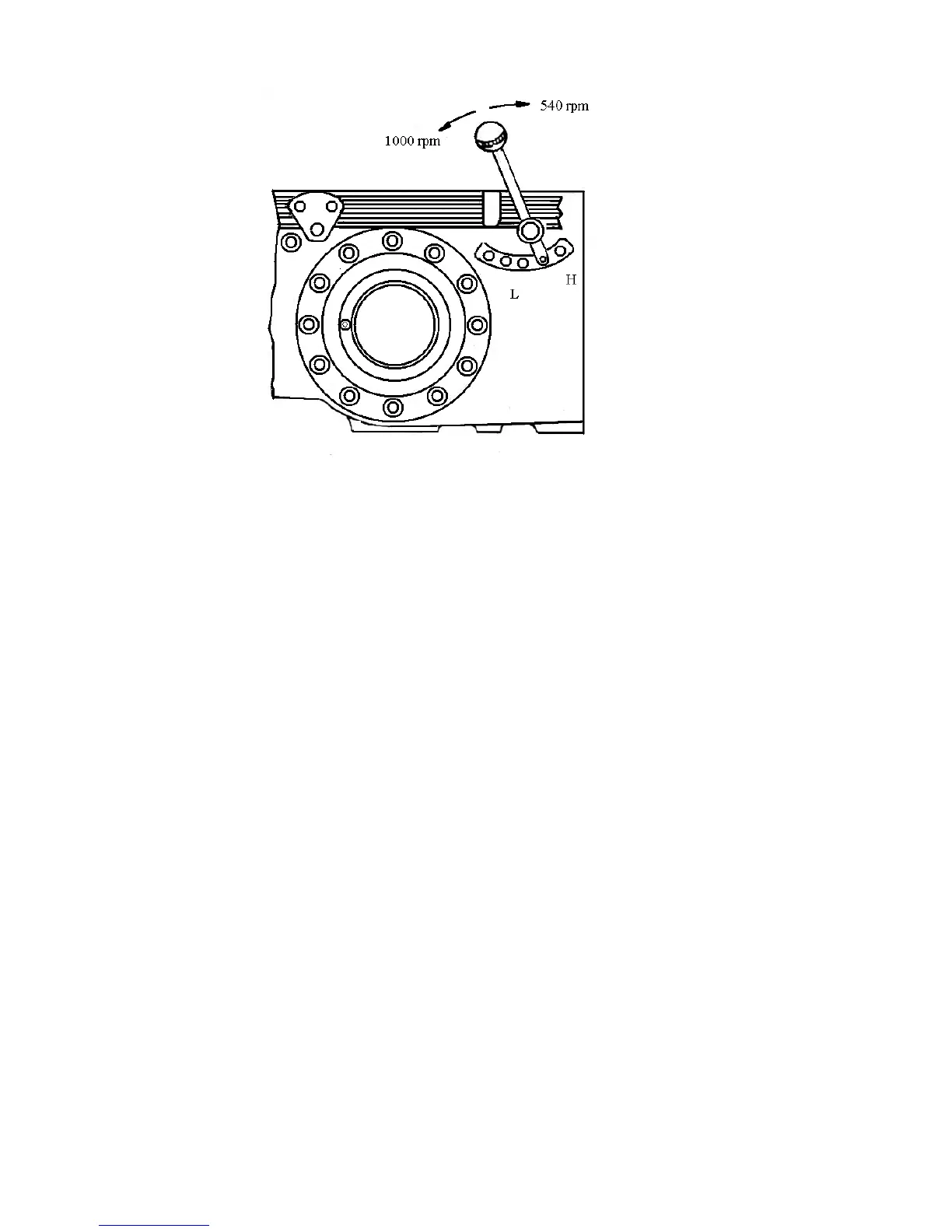

Fig.4-3 Control lever of PTO shaft
16. Brake lock pawl 18 (Fig.4-2)
The brake lock pawl is used when the tractor is parked on a slope or in storage for a long period. Push
the pawl up to lock brake pedals so that the brake can be kept in braking. Pull the pawl back, the barking
will be eliminated.
17. Fuel gauge
Turn the key clockwise, the electrical equipment is connected, it indicates how much fuel in the fuel
tank.
18. Control lever of PTO shaft (Fig.4-3)
For the engagement of the power take-off shaft, shift the lever forward or backward for high or low
speed respectively. Place the lever in middle position to disengage the shaft.
19.Implement lowering speed control valve
This valve has the following function ; (1) Adjust the lowering speed of the implement. (2) Lock the
implement to keep it in lifting position. (3) Block the oil circuit fuming to cylinder and then ready for
doing hydraulic power take-off.
20. Lifter control handle 16 (Fig.4-3)
The upper segment on the sector plate is for position control, the middle for combined control and the
lower for draft control.
