DESCRIPTION OF TRACTOR CONTROLS
1
2
2 - 31

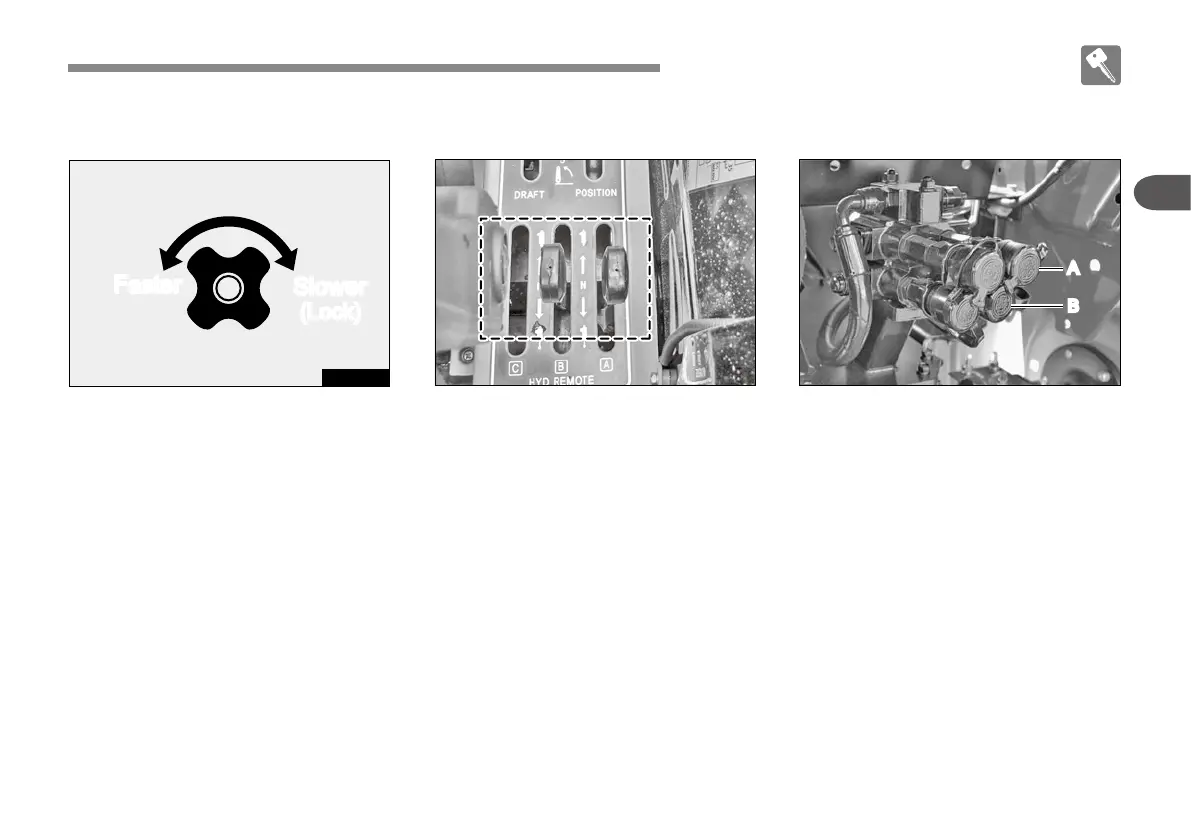

Decreasing lowering speed
Turn the knob clockwise (Slower).
Increasing lowering speed
Turn the knob counterclockwise
(Faster).
Lock
Turn the knob clockwise (Slower)
to its end.
•
•
•
T253O241A
Slower
Faster
(Lock)
AUX. HYDRAULIC LEVER
When using an attachment for an
implement (rotavator, hydraulic
plow, etc.), connect its hose to the
proper port between the port A and
B according to its use.
Lever A operation - Hydraulic pres-
sure applied to the port A of the
external hydraulic valve coupler
Lever B operation - Hydraulic pres-
sure applied to the port B of the
external hydraulic valve coupler
►
•
•
T5NO208A
AUX. HYDRAULIC VALVE
(1) How to engage coupler
① Clean the couplers on the tractor
and implement thoroughly.
②
Remove the dust cover from the
tractor side. Then, fit the male
coupler on the implement side
while moving its external ring
backward slightly.
③ Pull the male coupler on the im-
plement side backward slightly
to check its firm engagement.
►
T34O330B
A
B
