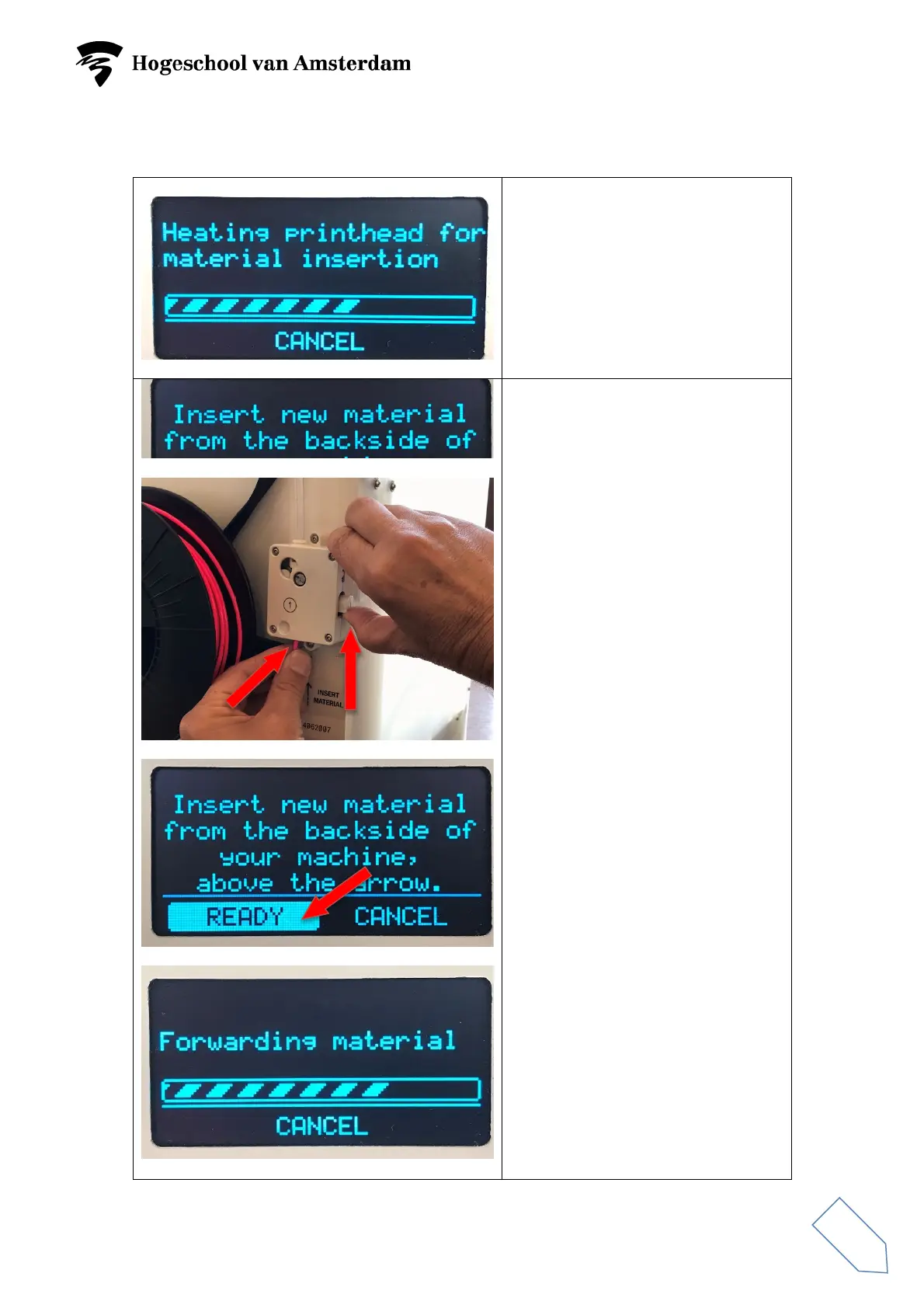

The printer head will heat up.
Wait until the menu ‘Insert new
material from the…..’ appears.
Now insert material into the bottom
of the feeder until the feeder grasps
the material. If necessary, you can
press up the switch on the side.
Select READY and press the
button.
The material will be led through the
Bowden tube.

Ultimaker 2+ Specifications

General

Build Volume	223 x 223 x 205 mm
Layer Resolution	20 - 200 microns
Print Technology	Fused Filament Fabrication (FFF)
Filament Diameter	2.85 mm
Print Speed	30 - 300 mm/s
Connectivity	USB, SD Card
Weight	11.3 kg
Nozzle Diameter	0.4 mm
Supported Materials	PLA, ABS, CPE
Display	LCD
Software	Cura
Power Supply	100 - 240 VAC, 50 - 60 Hz
Operating Temperature	15 - 32 °C
Dimensions	342 x 588 mm
