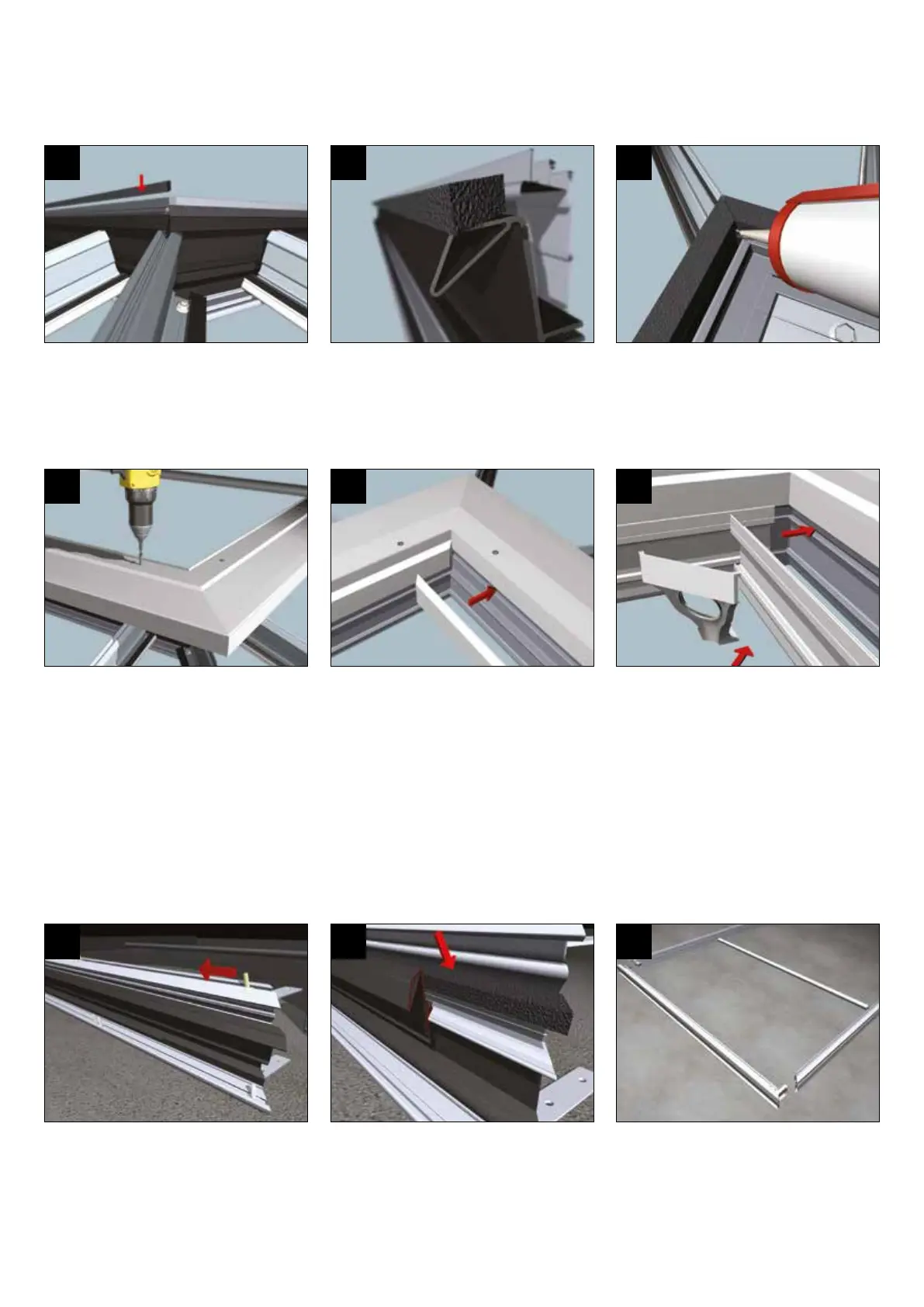

Ultraframe Classic roof - SECTION 18 LANTERN; SECTION 19 PAGODA

41
LANTERN
Attach the foam gasket into position by
peelingotheadhesiveprotectivestrip.
7
This is how it should look attached to the
rainbaehead.
8
At the corners, seal using a sealant
appropriate to the glazing material.
9
SECTION 18
For the lantern application, attach the PVCu
window cill to the beam. Assemble side
frames on to pvc cill and build the lantern
roof as per section 4 of this guide.
10
Cladotheinsideofthe upper leg ofthe
aluminium beam.
11
Now attach the PVCu eaves beam cladding
- complete the remainder of the internal
claddings.
12
Ensureroongboltsarethreadedintothe
pagoda eaves beam.
1
Attach the foam gasket into position by
peelingotheadhesiveprotectivestrip.
2
Layout the pieces of the lantern eaves
beam.
3
PAGODA
SECTION 19
