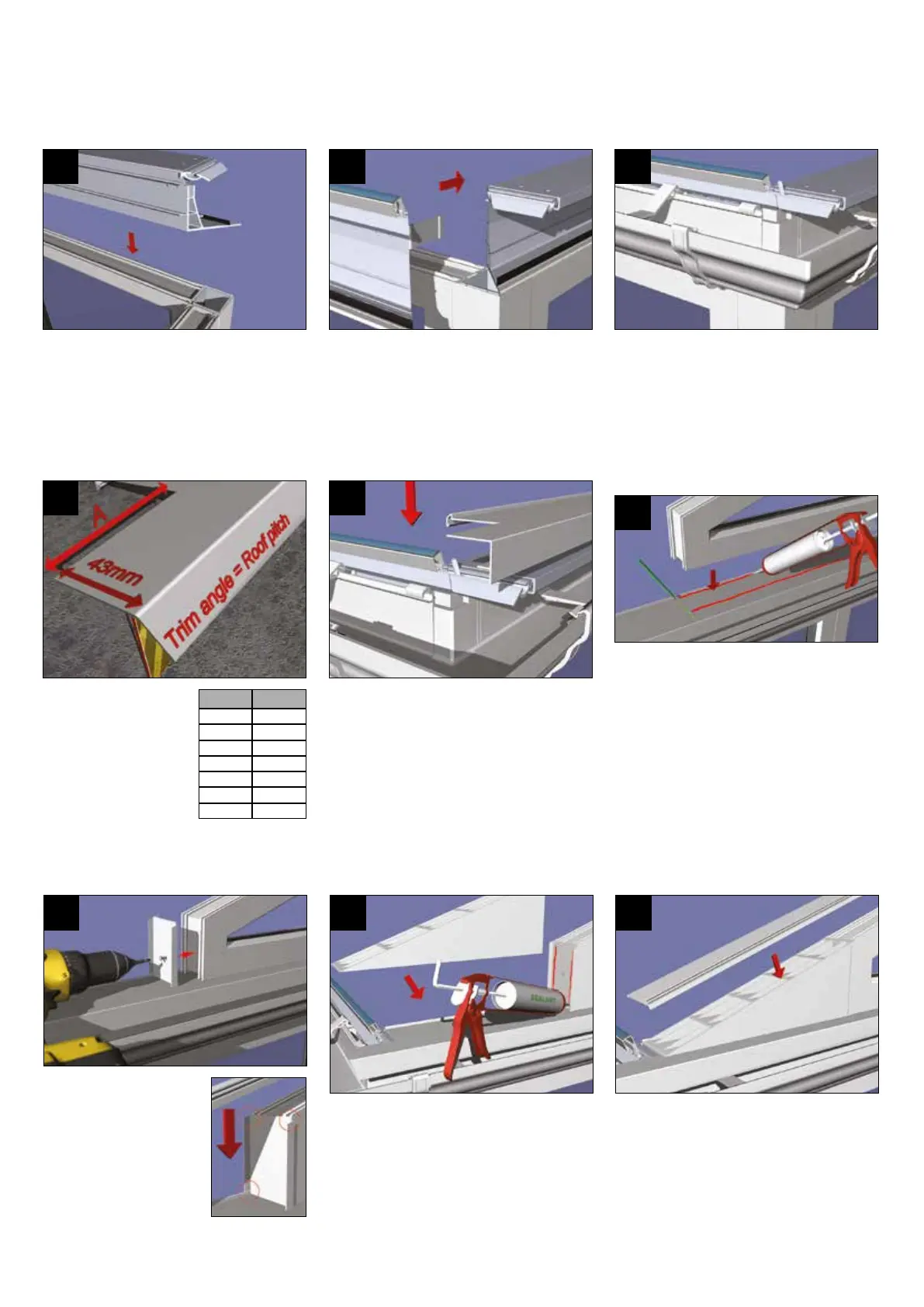

Ultraframe Classic roof - SECTION 12 GABLE INSTALLATION

34
Trialtthegablebeamandtheeavesbeam
ensuring the inside face is ush with the
inside face of the window/door frames.
Remove, then apply a continuous bead of
silicone to both the front and rear edges of
the window/door frames.
1
Fit the under gutter trim to each section of
eaves beam and gable beam, position the
beams and slide the corner cleats (already
attached to the eaves beam) into the gable
beam. Drill through the holes already in the
gable beam into the cleats and secure with
the screws supplied.
2 3
With the guttering in
place, trim the gable
beam top cladding. The
cladding is supplied
over length and cut to
suit the roof pitch (see
table).
4
Next attach the notched gable beam top
cladding on to the head of the gable beam.
5
Position the gable window frame central
to the gable beam, and mark the position.
Remove the frame and again run two beads
of silicone along the head of the gable
beam top cladding (the width of the window
frame only). Replace the frame centrally
and back against the upstand of the gable
beam top cladding. Fix securely through
the frame into the head of the gable beam
with self tapping screws (not supplied).
6
GABLE INSTALLATION
OVER 15°
USE THIS
DETAIL
10
15
20
25
30
35
40
83
85
87
89
93
98
104
Roof Pitch (
O
) Dim A (mm)
SECTION 12
To secure the gable beam (see Vic Fixing
Kit page 8), then at this stage the guttering
is installed. First attach the gutter brackets
to the gable/eaves beam. Fit the 90 degree
external gutter corners to the gable beam
length of gutter. The brackets are at
maximum 750mm centres and 200mm
from each corner.
Mark and cut the gable
inllendcap.Notchinner
bottom edge to allow the
endcaptositushand
tight to the gable window
frame. Trim top edge to
suit pitch of roof and
gableframerringtopcap
which should be placed into position for
marketing purposes. First silicone and then
screw the end cap to the gable frame.
7
Trialt the gableinll wedge.Remove, run
two beads of silicone and place back in
position, tight up against the inll wedge
end cap.
NOTE: it will be necessary for non
standard pitches to trim the inll wedge
to suit the pitch, maintaining the 135mm
height dimensions.
8
Position the gable frame rring top cap
along the gable frame and over the inll
wedge. The bottom edge of the gable
frame rring top cap is cut to nish ush
withtheloweredgeoftheinllwedgeand
the end of the gable beam. The top edge is
cut vertically to suit the roof pitch. Silicone
in position.
9
