MAIN ASSEMBLIES
SECTION 3

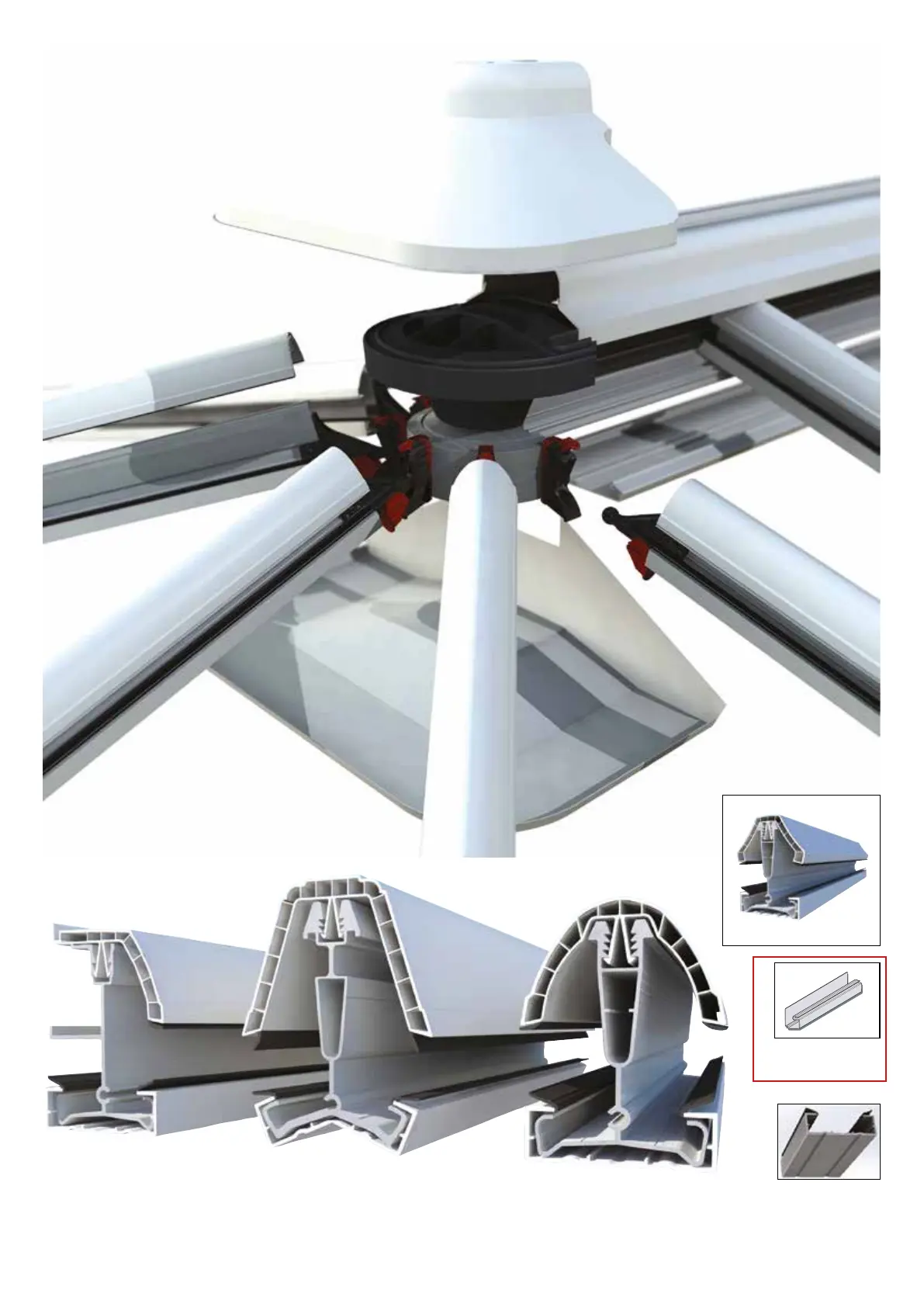

Ridge Assembly
Glazing bar types
Georgian - Chambered
Capping
Vic/Transom - Chambered
Capping - main picture features
Dome, bevelled version also
available see inset.
The standard/default
under cladding is DSBC
Pre-formed soaker Stepped flashings (L & R)
Saddle apron Horizontal flashing
To be used on duo-pitch roofs
To be used on lean-to & Ultralite & above
the saddle apron on duo-pitch roofs
To be used on duo-pitch roofsTo be used on duo-pitch roofs
Optional soaker sits in
starter bar
Starter - Chambered Capping
