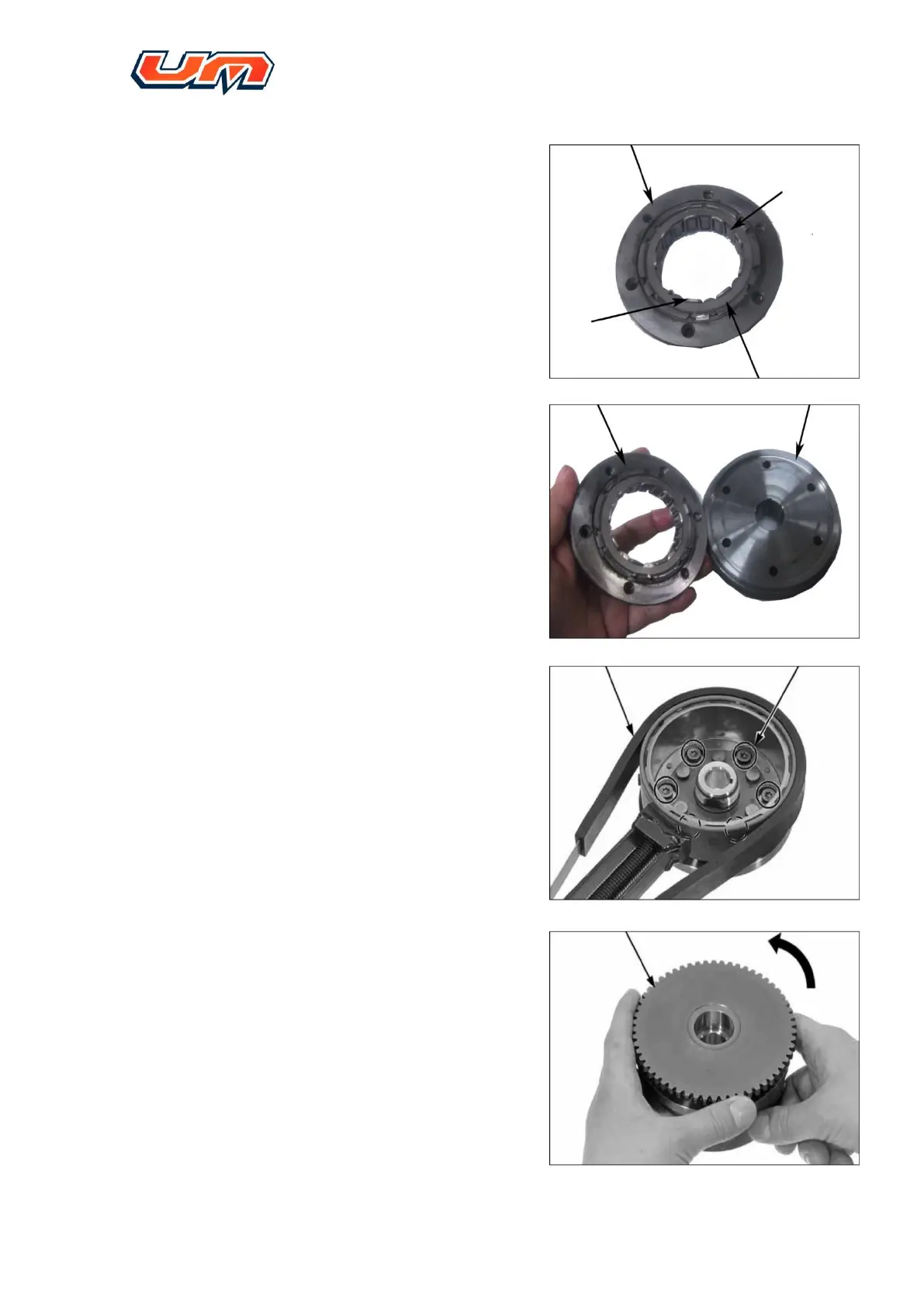

7.3.13.6. Assemble overrunning clutch
7.3.13.7. Install overrunning clutch onto
magneto rotor, and align through
hole with threaded hole
7.3.13.8. Apply appropriate amount of
fastening adhesive onto threads of
bolts, then use tools to locate and
tighten the bolt
Tightening torque: 16 N.m.
7.3.13.9. Install large starting gear onto
assembled magneto rotor, and
rotate gear counterclockwise
Gear shall be coated with lube oil
properly
Ensure that the gear can rotate
freely counterclockwise, but cannot
rotate clockwise
