UXPW 125 ENGINE SERVICE MANUAL AND EFI DIAGNOSTIC
- 83 -

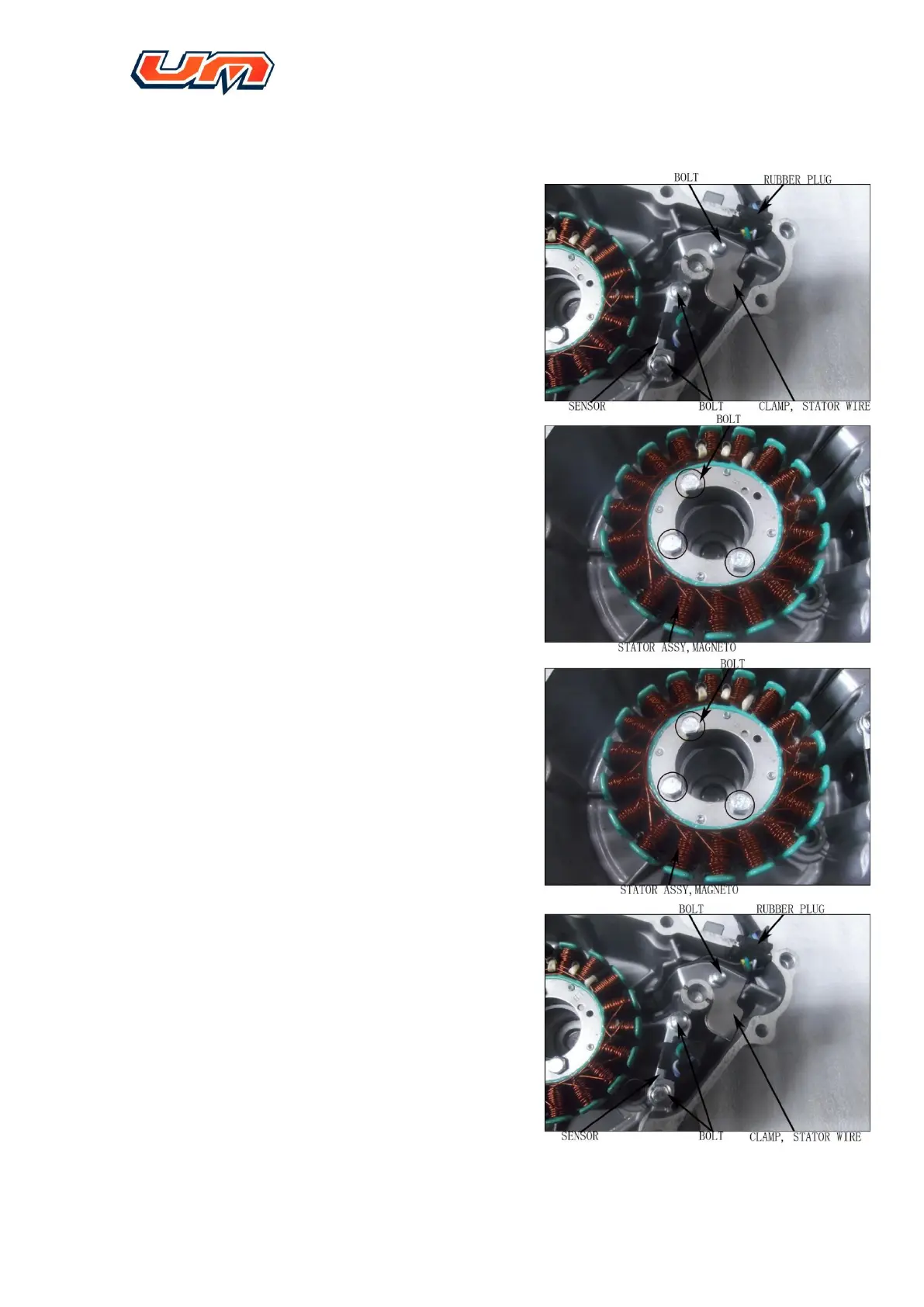

7.4. Magneto stator (extraction and installation)
7.4.1. Remove rubber plug, magneto cable clip
and sensor
7.4.2. Dismantle fastening bolts on stator and
take out magneto
7.4.3. Install a magneto onto left cover, then
tighten bolts
7.4.4. Install sensor and tighten bolts
Press cable clip of magneto into
corresponding position on left cover, and
tighten bolts
Note:
When assemble magneto cable clip, collect the
harness into groove to avoid harness damages;
otherwise, a short circuit may be generated.
Tightening torque of bolt: 12N.m
7.4.5. Install left cover onto engine (refer to 7.2
section).
