UNI-T UTD2025 series User Manual

Uni
-
Trend Technology (Chengdu) Ltd
.
Page
8
of
27
Communica
tion & Control So
ftware for
UTD20
25
_30
25
Series Oscilloscopes
User
Manual

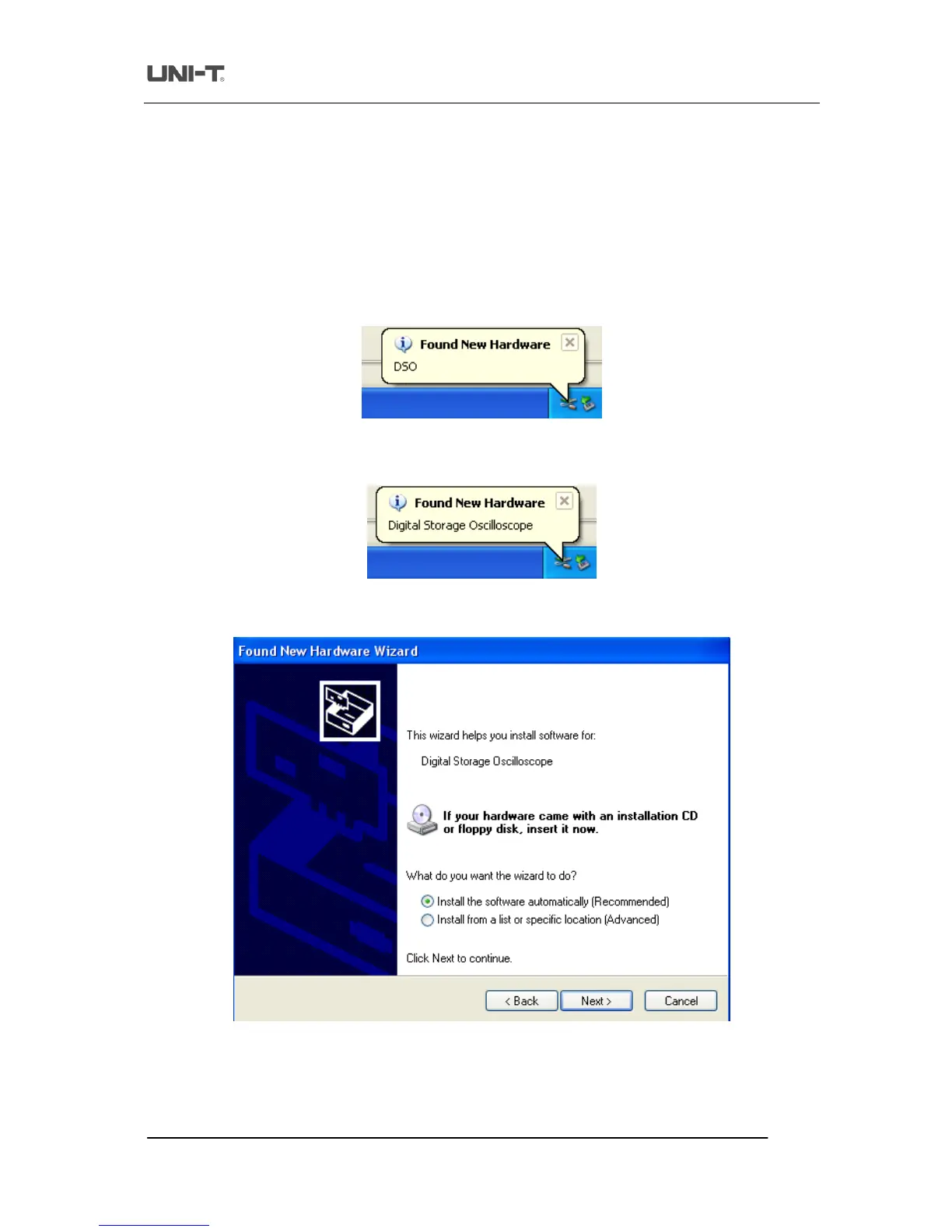

1.4 Installing the USB driver
If you are using the oscilloscope’s USB device port for software communication and control, the USB driver must
be installed after installation of the oscilloscope communication and control software is complete. Fo
llow the
steps below :
1.
There is a USB device port on the rear panel of your
UTD2025_3025
Series Digital Storage Oscilloscope.
With the supplied USB A
-
B cable, you can connect the USB device port to the USB Host port of the
computer and obtain power supp
ly for the oscilloscope.
2.
After checking that connection and power supply are normal, power on the digital storage oscilloscope.
When the operation status screen appears, a prompt will appear at the right bottom corner to indicate “New
hardware DSO dete
cted”, as shown in Fig 1
-
10.
Fig 1
-
10
Next, an icon will be created for the “New hardware DSO detected”, as shown in Fig 1
-
11.
Fig 1
-
11
Then a “hardware update wizard” dialog box will pop up on the desktop, as shown in Fig 1
-
12.
Fig 1
-
12
