Trend Technology (Chengdu) Ltd
3.2 Ethernet (LAN) interface controls
he Ethernet port is a dedicated interface module of
Digital Storage Oscilloscopes. This TCP/IP
protocol embedded module can provide direct Ethernet connection to a
series oscilloscope. After
installing the communication and contro
l software, you can operate your oscilloscope on remote control through
LAN or the Internet. As it supports concurrent visit by multiple users, there are no geographical and users
restraints and you can carry out network and remote testing as well as measu
models) Ethernet module, you can
operate the oscilloscope through the LAN interface as follows :
Select “LAN” in the equipment selection option on the real

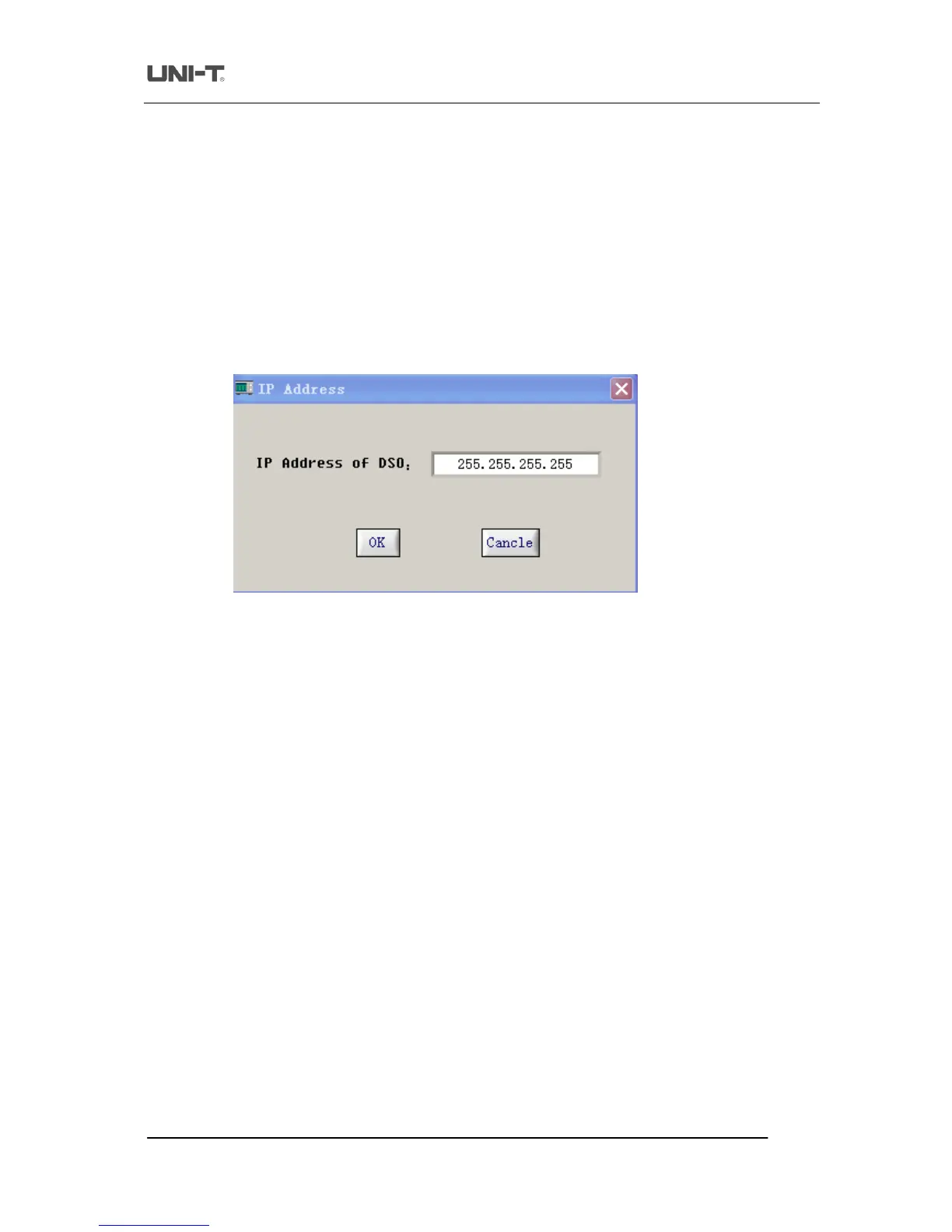

When “LAN” is selected, the dialog box in Fig 3
Enter the DSO IP address in this box. The IP addresses set in the software and the communicated oscilloscope
must be the same, otherwise c
ommunication between the oscilloscope and the software cannot be established.
Please refer to the oscilloscope user manual for operation instructions. Access sub
LAN on the oscilloscope control panel for TCP/IP protocol
setup. You should set up the IP address,
netmask and default gateway in LAN. In the same network, the IP address of every individual digital storage
oscilloscope is unique and must not conflict with the IP address of any other equipment (in
For other operation instructions refer to steps 2,
USB interface controls” in this chapter.
When using the LAN interface, you can operate the oscilloscope by remote control via LAN or the Internet.
of the router must be enabled and the public network address of your company should provided.
