Reverse mathematics function :
Indicator on means reverse mathematics function is in process. Indicator
off means reverse mathematics function is not in process.
Select mathematics functions with the function menu in the menu bar.
Set up the refresh time interval with the waveform refresh menu in the menu bar.
Set up refresh time while performing auto refresh.
ransmission interface and explanatory notes
To select USB or LAN to control communication, click the “transmission interface” button on the virtual control
panel of the communication and control software to enter the “transmission interface” operation scr

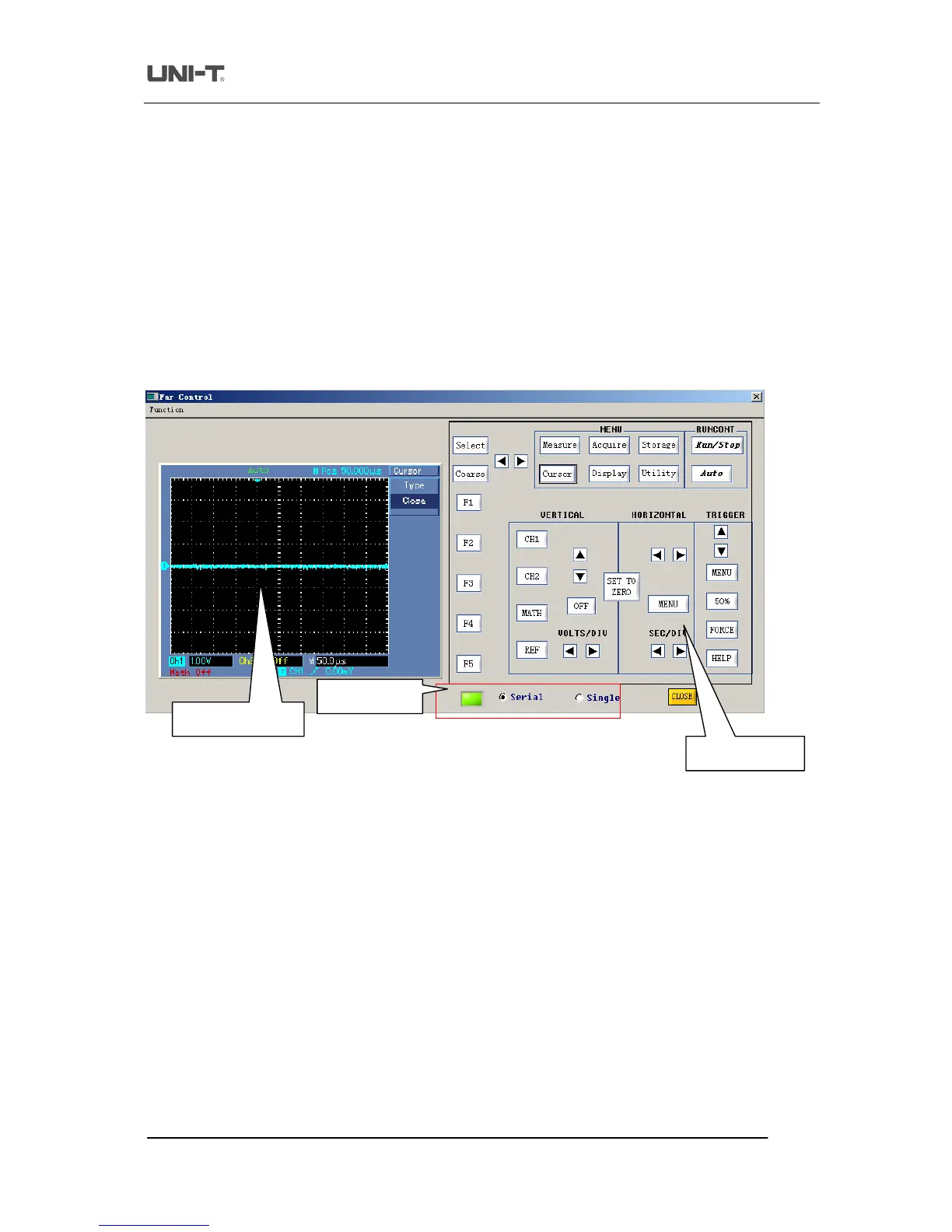

can enable remote interface transmission as shown in Fig 2
11. The virtual display panel shows the waveform and
interface of the oscilloscope. The virtual control panel is a virtual operation panel of your digital storage
an control and operate the unit from here.
Saving and exiting screen
Select “Single” as in Fig 2
11 to save the waveform and screen on the virtual
ormat on the computer hard disk or mobile USB device.
Quit the remote control transmission interface mode.
When “serial” is selected, the waveform on the virtual display panel will be updated in real
time and in synchronization with the
waveform stored by the oscilloscope. In this mode,
data volume is sizeable and control response is slower.
When “single” is selected, the waveform on the waveform display screen is not displayed in
synchronization with the waveform stored by the
oscilloscope. In this mode, data volume is
limited and control response is faster.
Close the transmission interface and return to the main control panel (Fig 2
