Chapter I Introductions
UTD2000 series DSO is desk type DSO. It is designed with conventional user
interface design for any of the basic DSO at the test and measurement industry.
This chapter will cover the following as the beginning guide the UTD2000 series
DSO:
△ General inspection
△ Functional inspection
△ Probe compensation
△ Automatic settings of waveform display
△ Introduction to the vertical system
△ Introduction to the horizontal system
△ Introduction to the trigger system
When beginning to use your UTD2000L oscilloscope, first familiarize yourself with the
operation front panel. This chapter briefly describes the operation and functions of the
front panel, so you can get started with your UTD2000L series digital storage oscilloscope
as quickly as possible.
Your UTD2000L oscilloscope comes with a front panel with at-a-glance functions for
easy operation. There are knobs and function keys on the front panel. The functions of
knobs are similar to other Oscilloscope. On the right you will find the screen copy key
(PrtSc) which enables you to save the current screen in an external USB device in picture
format and 5 menu operation keys (designated as F1 to F5 from top down). With these
keys you can set up different options of the current menu. The other keys are function
keys. You can use them to enter different function menus or access particular functions
directly

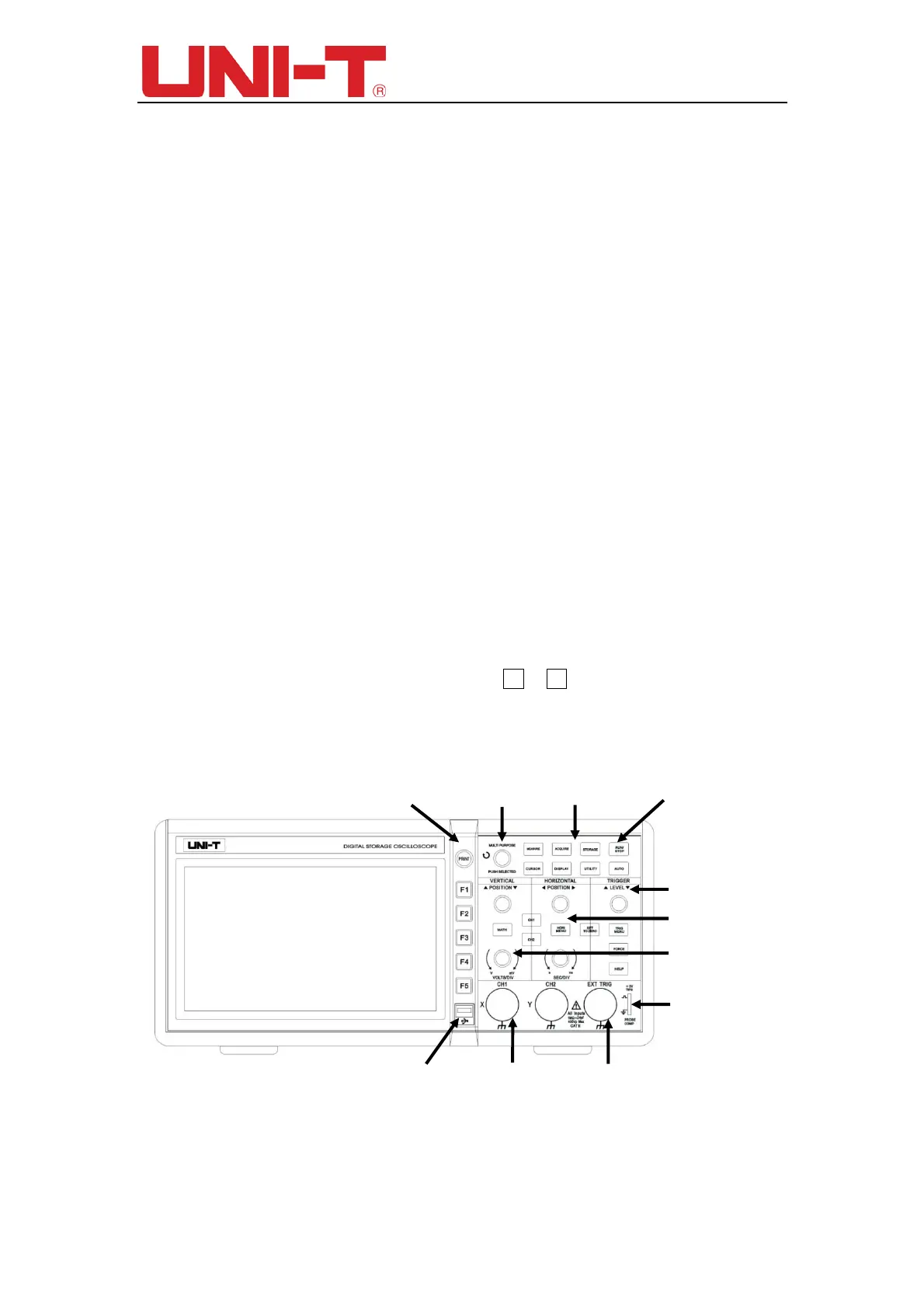

Figure 1-1 Schematic Diagram of the UTD2000L Front Panel
Display horizontal trigger position
Multipurpose
knob
User Menu
RUN/STOP
control
Prscrn
function key
Trigger control
Horizontal control
Vertical control
USB OTG
Interface
Single
Input
External
trigger Input
Probe compensation
singal output
