UTD2000 Series User Manual
19
Figure 2-6 Probe Attenuation Coefficient Setting in Channel Menu
2.4 Vertical Volts/Div adjustment setting
Adjustments of vertical deflection factor V/div gear position can be set to coarse
adjustment and fine adjustment by pressing F3 function key.
Coarse adjustment, V/div can be adjusted in step ofmultiple of 1,2 and 5,
e.g. 10mV/div->20mV/div ->50mV/div…. etc.
Fine adjustments refer to changing deflection factor with smaller stepping within the
current vertical gear position range.

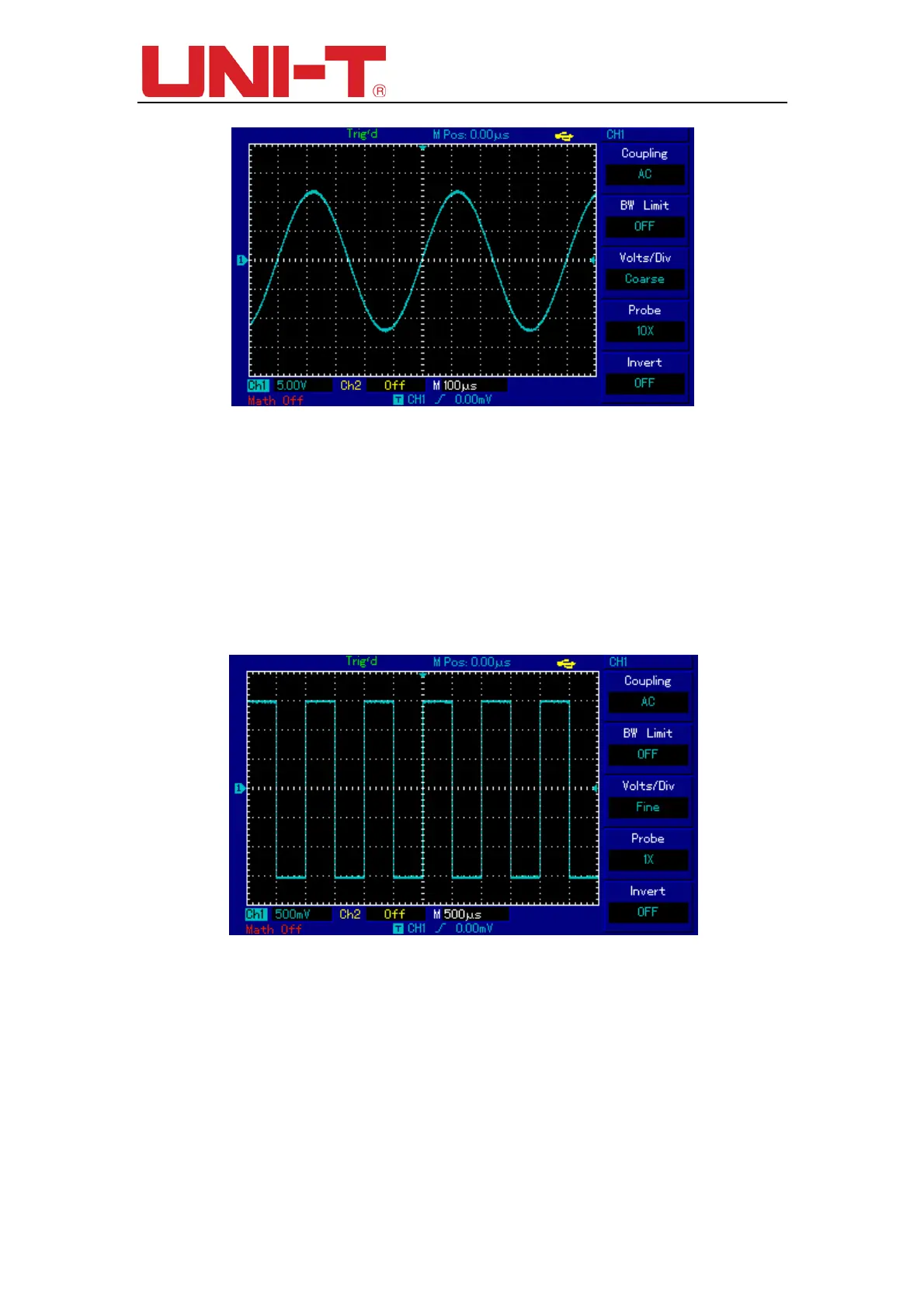

Figure 2-7 Coarse and Fine Adjustment of Vertical Deflection Factors
2.5 Settings of waveform inverting
Waveform inverting can be set by F5 function button. The measured input signal will
be display with 180 degrees difference (Vertically invert) if the Waveform inverting is ON.
Please see Figure 2-8 for a non-inverted waveform and Figure 2-9 for an inverted
waveform.
