Table 9-3 Waveform storage menu (Page 2)
Function Menu Setting Description
Desk
DSO Select to store a acquired waveform into the internal memory of the DSO
USB Select to store a acquired waveform into the USB device
Length
Normal Select to normal data length (Same data number as display)
Long Select to long data length (Same as data number as data buffered in the DSO FIFO)
Load —— Recall the waveform
—— —— ——
Previous 2/2 Go to the previous page

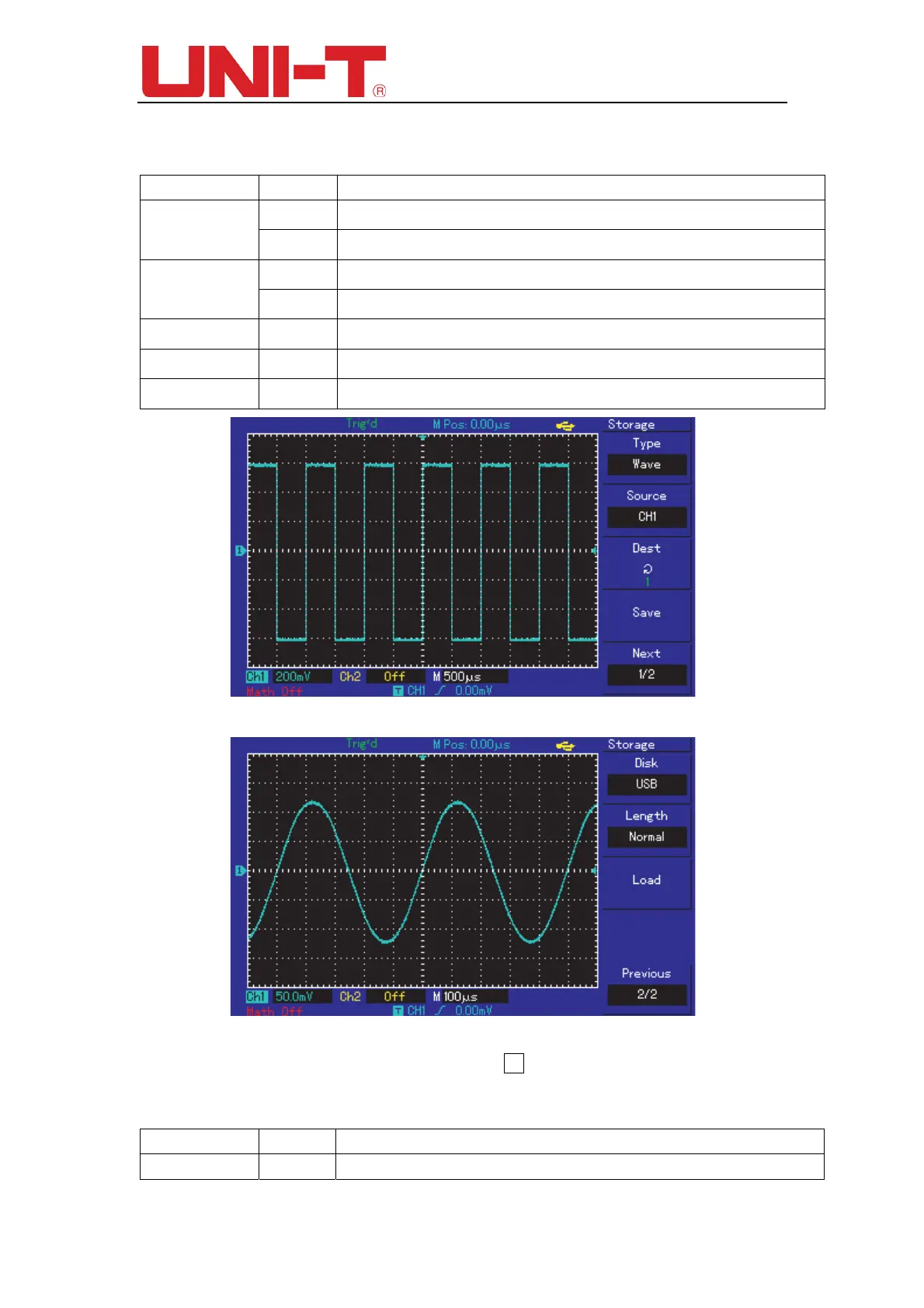

Figure 9-2 Storing the waveform
Figure 9-3 Storing a waveform on the USB
Waveform storage menu(Page 2), Press the F3 button, then choose RefA or RefB,
and you will see the following menu.
Table 9-4 Load menu
Function Menu Setting Description
Dest
1～20
Select the callback waveform from the storage location specified inside the
