UTG2000B Series 89

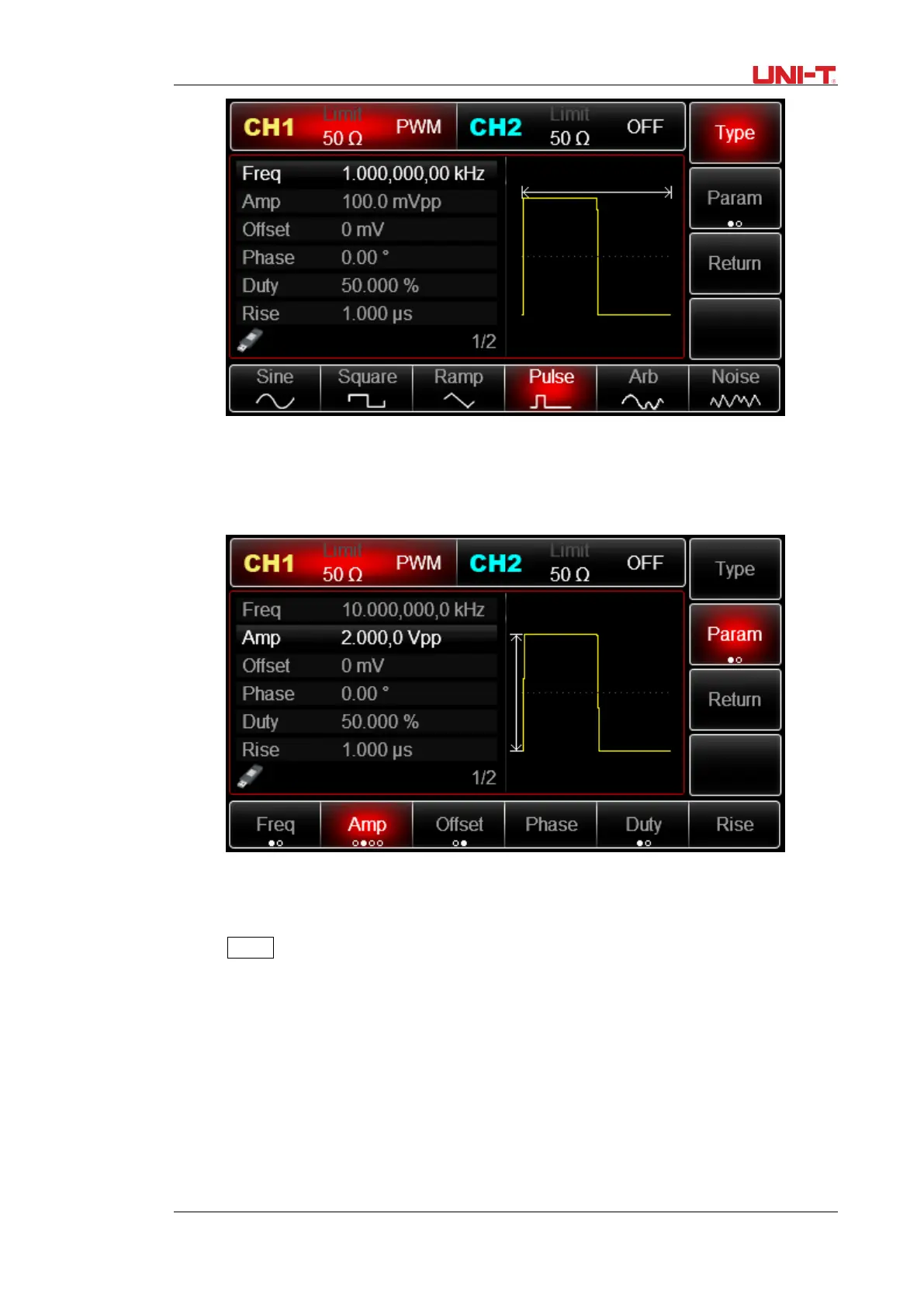

Figure 3 -25 Set carrier parameters
You can set with multi-functional knob and direction key. You can also press corresponding soft keys
of function again, when the interface below will pop up. To set some parameter, press
corresponding soft key, input the required value and select the unit.
Figure 3 - 26 Set rising edge
4) Set duty ratio deviation
Press Return to return to the interface below to set frequency deviation after setting carrier
parameters.
